•Must be measured with a micrometer.
Measure the thickness of the friction plate component.
Change the front brake disc and friction plate component, if their thickness are
less than the standard value or they have been polluted.
Available limit: friction plate 5.0mm
Front brake disc 2.6mm
Note: the friction should be changed in pairs.
5.3.3 Installation
Install front brake disc and front wheel.
Install front brake hose assembly and brake cylinder component.
Do not make friction plate and front brake disc stained with grease.
*Note
The brake being stained with grease will decreases the performance of the brake and results the failure of the
brake.
Screw the bolt and nut to specified torque value.
Torque value:
Oil pump body component fixing bolt 5-9 N·m
Front brake component installation bolt 22-29 N·m
Do not make the friction plate stained with grease.
It should be cleaned with brake cleaning fluid, if the
friction brake is stained with grease.
*Note
The friction plate being stained with grease will decrease
the performance of the brake.

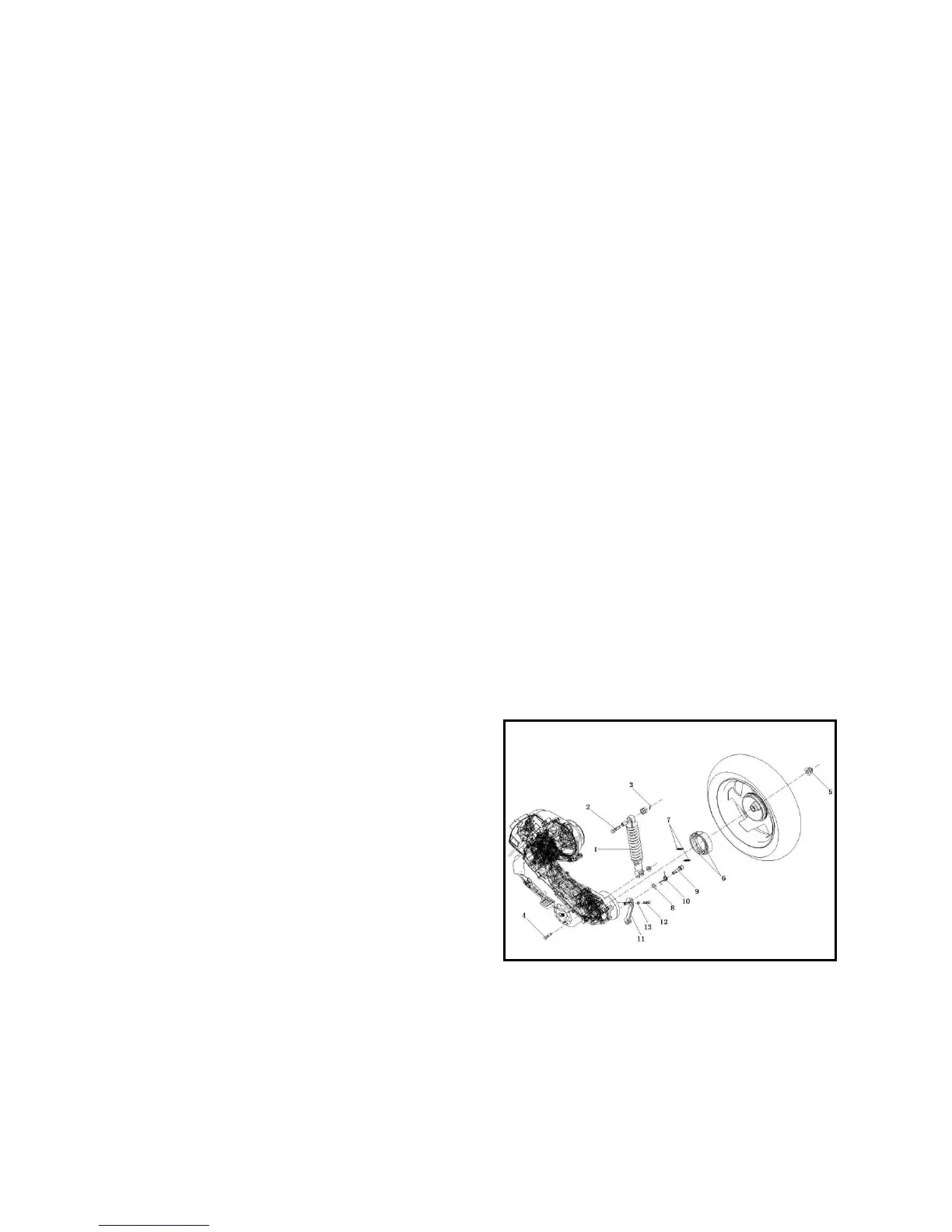

5.4 Rear hub brake
5.4.1 Disassembly
Remove the muffler.
Remove the rear fixing nut.
Remove the rear wheel
Remove the brake shoe block component.
*Note
