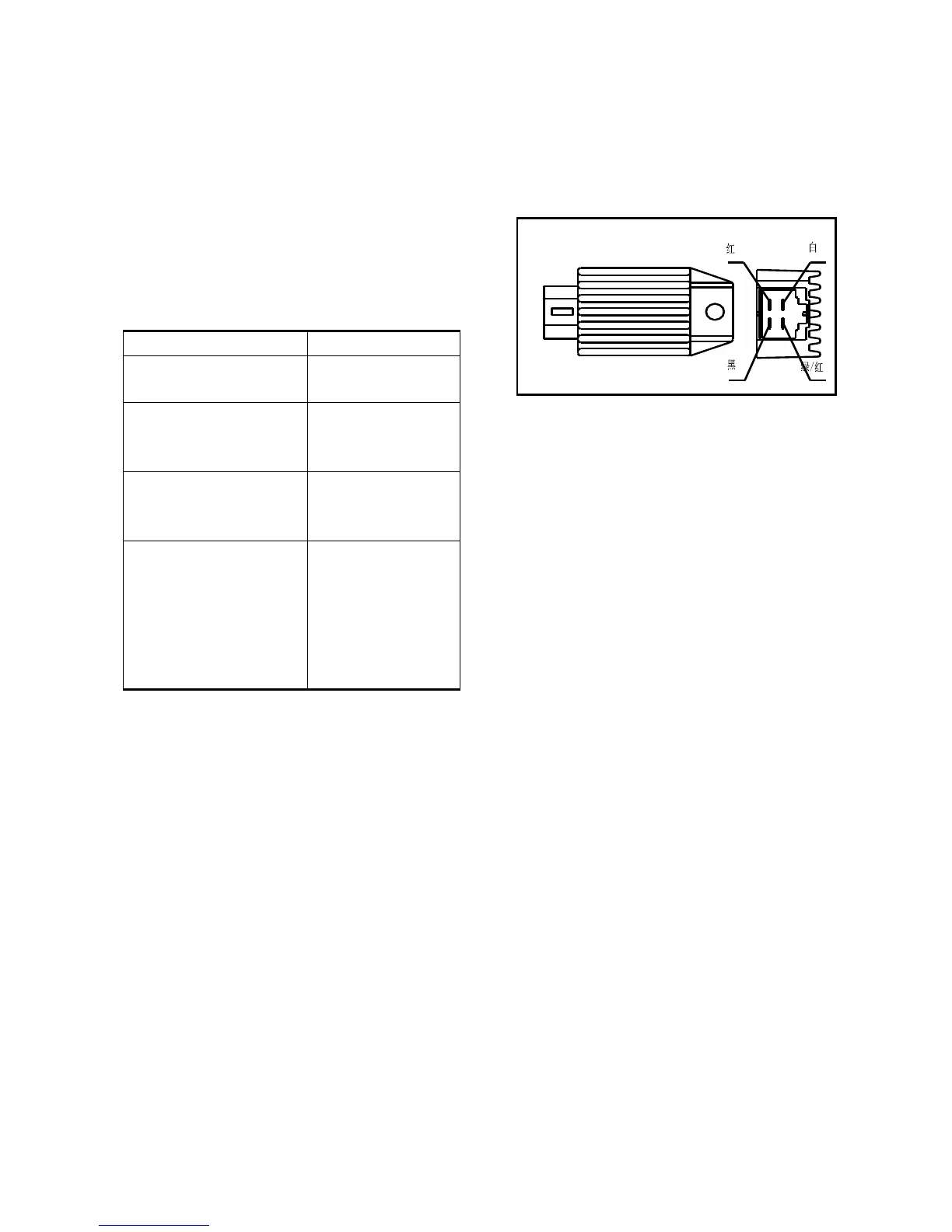

1.5 Rectifier
1.5.1Main Wiring Inspection
Remove the 4p plug of the rectifier.
Check the conducting state of the terminals
of the main wiring.
Item（wiring color）
Judgments
Between Battery（red）and
GND of the body
With battery voltage
Between GND wire
（black）and GND of the
body
With wiring
Between charging
coil(white) and the GND
of the body
There is resistance in
the magnetor coil
Between light wire
(green/red) and the GND
(plug of resistor, auto side
starter plug, inspect at OFF
position after the removing
of lighting switch
There is resistance in
the magnetor coil
1.5.2 Voltage and Current Adjustor Inspection
When the main wiring is completely normal, check the contact of the adjustor’s
plug, and measure the resistance value between the terminals of the adjustor.
*Note
• When checking the metal parts, your finger should not contact test bar of the multimeter.
•Different multimeter will show differently, so use the same multimeter while checking.
Replace the voltage adjustor when the resistance value between the terminals is abnormal.
1.6 Magnetor Charging Coil
*Note
Check the magnetor charging coil on the engine.
Inspection
Remove the 6p connector of the magnetor
