8.3 The rear wheel

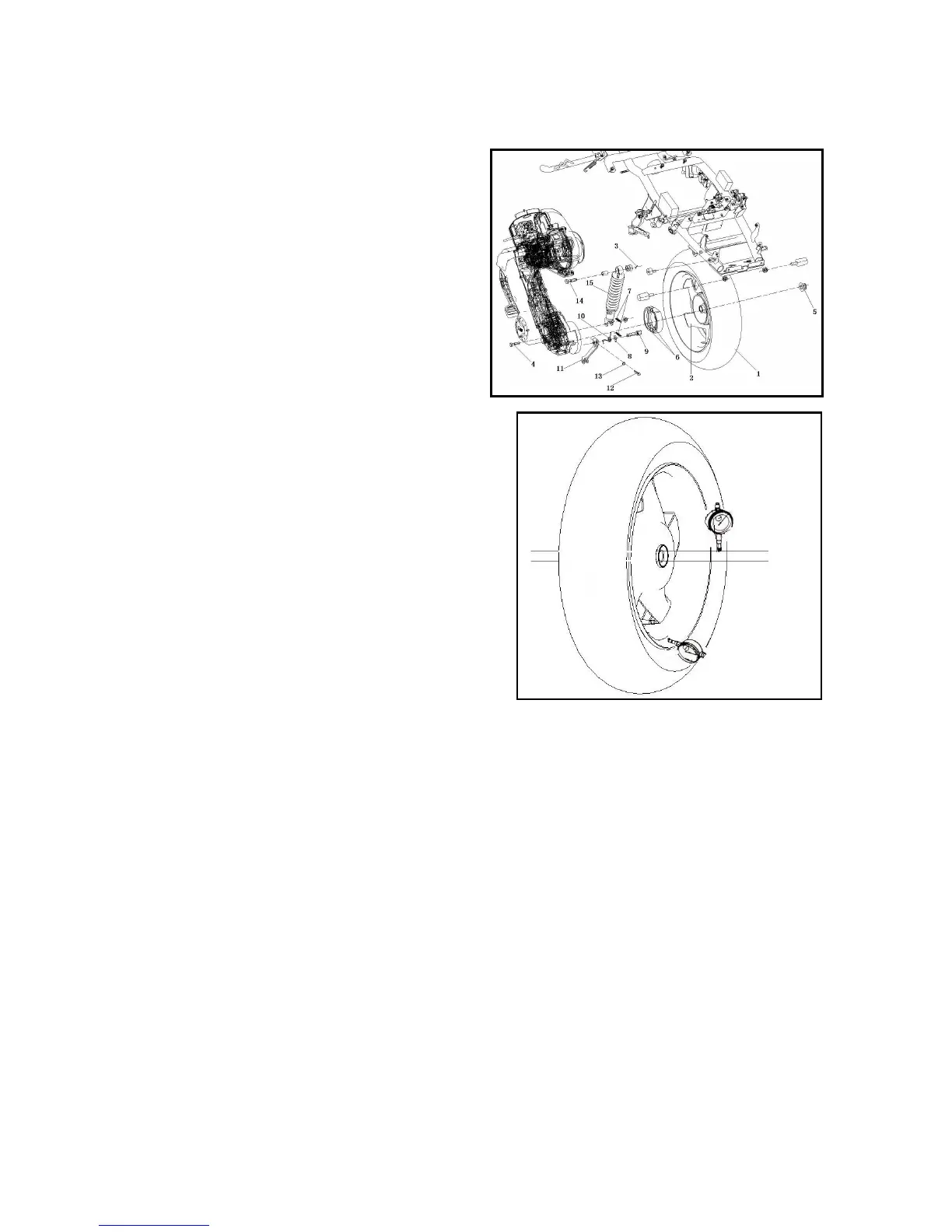

8.3.1 Removing
Remove the muffler component.
Remove the rear inside fender.
Remove the rear axle fixing nut.
Remove the rear wheel.
8.3.2 Check
8.3.2.1 Rim swing check
Turn the wheel with hands and measure the eccentricity of it
with dial gauge.
Available limit:
Longitudinal: change above 2.0mm.
Horizontal: change above 2.0mm.
When the rear swing degree exceeds the available limit, the
rear wheel will loose, which will result in the swing of the
rear wheel. Change the rear wheel bearing after check.
8.3.3 Installation
Install the rear wheel in sequence contrary to the ―removing‖
and lock the nut.
Rear fixing nut
Torque value: 100-113 N·m
To Next Page
