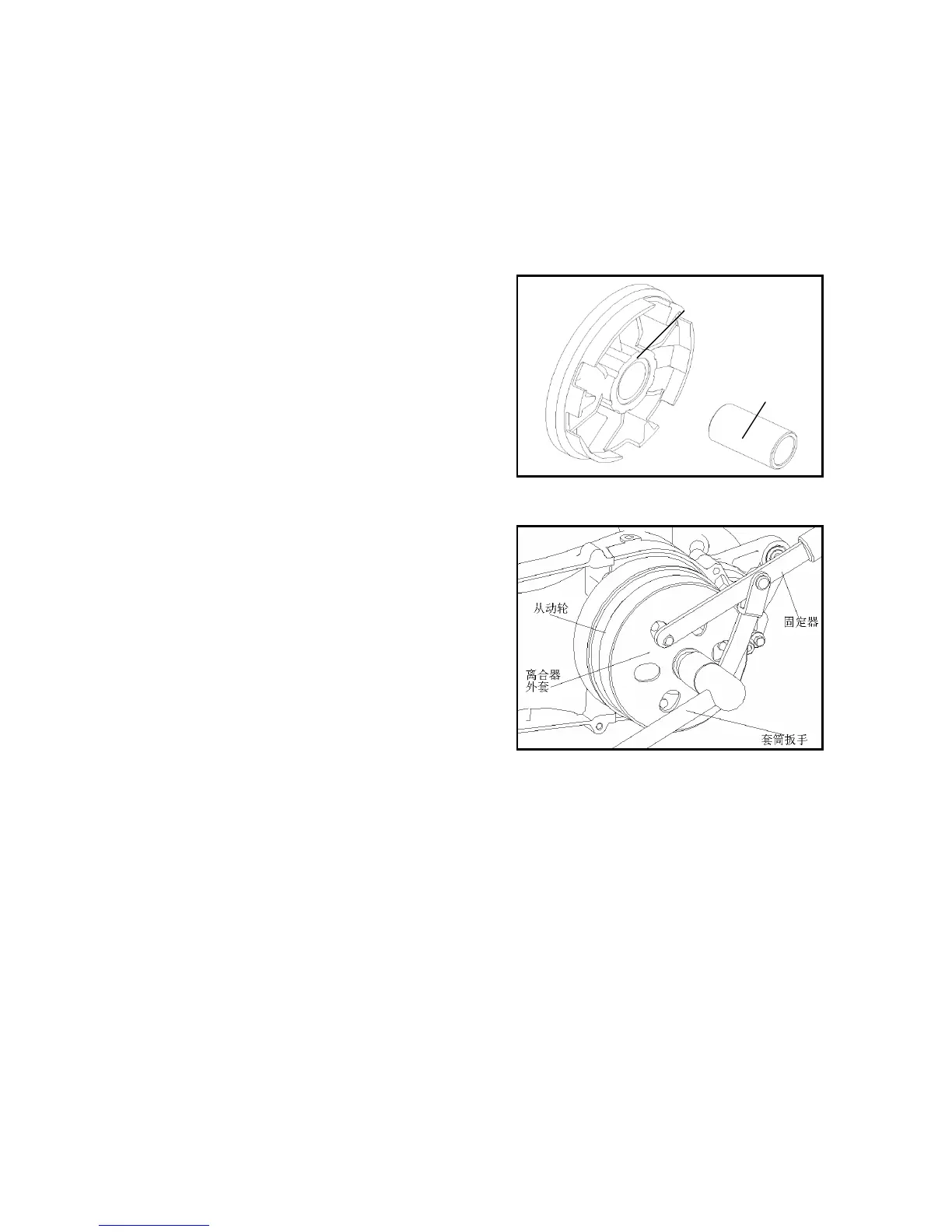

Measure the outside diameter of right half driving wheel
Allowable limit: 26.06mm。
Measure the outside diameter of sliding sleeve
Allowable limit: 25.94mm。
14.5 Clutch/Driven wheel
14.5.1 Disassembly
Fix clutch sleeve using fixer and remove fixing nut.
Remove clutch sleeve, clutch/driven wheel.
从动轮：driven wheel 固定器：fixer
离合器外套：clutch sleeve
套筒扳手：sleeve wrench
14.5.2 Disassembly of clutch
Remove the retainer ring and to disassemble the clutch.
Attentions:
Oil should not be existed on the clutch friction lining when disassembling.
挡圈：retainer ring
摩擦片：friction lining
