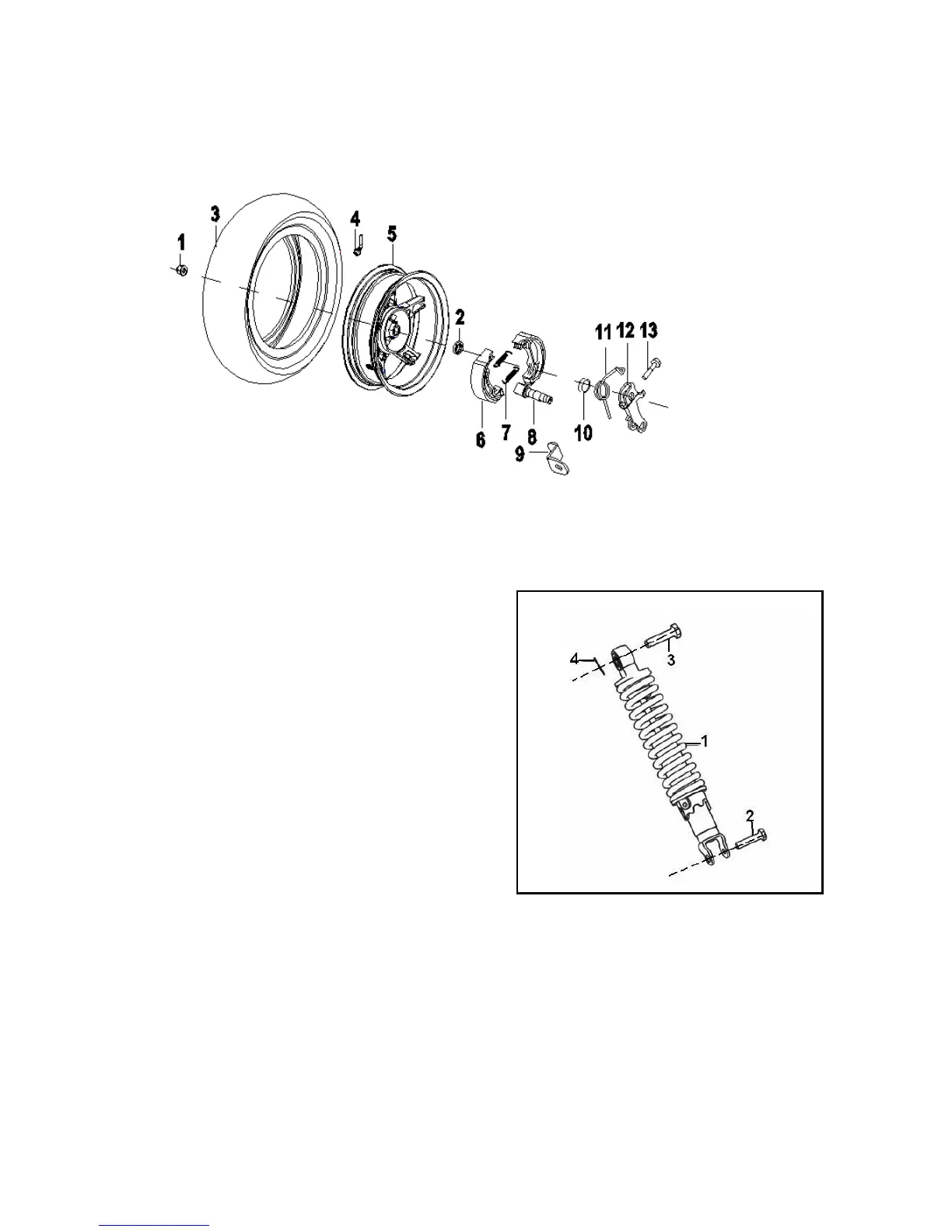

QJ50T-21T rear wheel
8.4 Rear muffler
8.4.1 Removing
Remove the seat pad and the left and right protection plate.
Remove the rear container, rear shelf assembly, rear fender.
Remove the rear muffler fixing bolt.
Remove the muffler.
8.4.2 Installation
Install the rear muffler.
Torque value:
High fixing bolt:37-44 N·m
Low fixing bolt:22-29 N·m
The installation of the rear muffler
Install the rear container, rear shelf assembly, rear fender.
Install the seat pad and the left and right rear protection plate.
