- 59 -
Ignition System

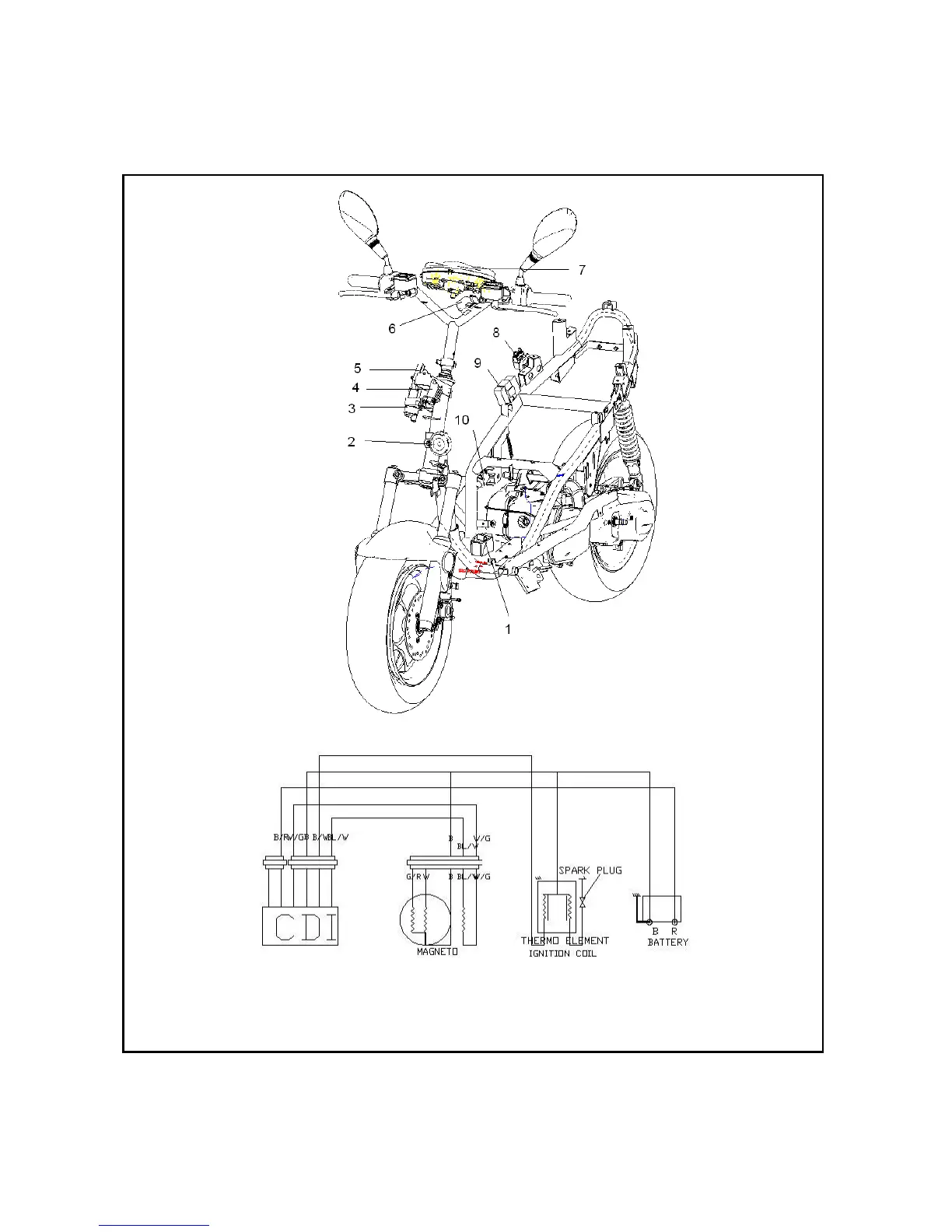

1 Battery 2 Horn 3 Power Locking Components 4 Rectifier 5 Release Resistance 6 Frequency
Conversion Flash Apparatus 7 Meter 8 Starting Relay 9 Igniter 10 Ignition Coil Assembly
