Install spring sheath.
Wipe clean the spilled oil.

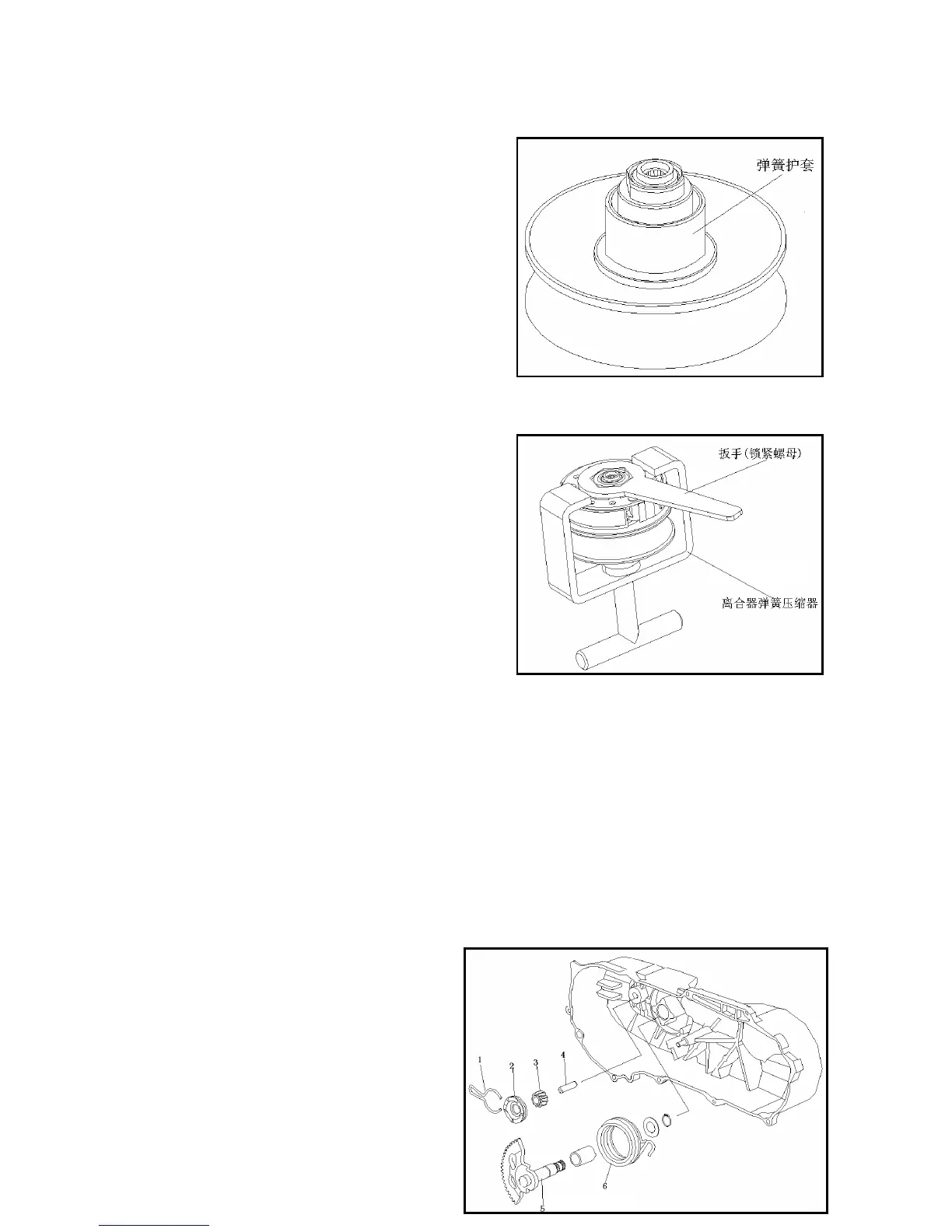

弹簧护套：Spring sleeve
Install the clutch-pressing spring and clutch on the driven
wheel.
Use clutch spring pressing combination. After the
compression, the lock nut should be installed.
Attentions:
The spring should be compressed appropriately, otherwise it
would be damaged.
扳手：Wrench
离合器弹簧压缩器：Clutch spring compressor
14.7 Assembly
The assembly of driving plate/ clutch / driven wheel should be in the reverse order of disassembly.
14.8 Feet start mechanism
Disassembly/Checking
Remove the left crankcase cover
Loosen screws and remove the baffle.
Remove start claw components
Remove start-axis components
Check the wear of start shaft.
Check the wear situations of start bushings and force
part of idler shaft
