Put the outside rolling bearing coated with oil in the bushing.
Attentions:
When pressing the outside rolling bearing into the bushing,
the side with mark should be placed outward. And then fill
the bearing chamber with 8-9g oil.
Mount cir-clip
Install needle roller bearing

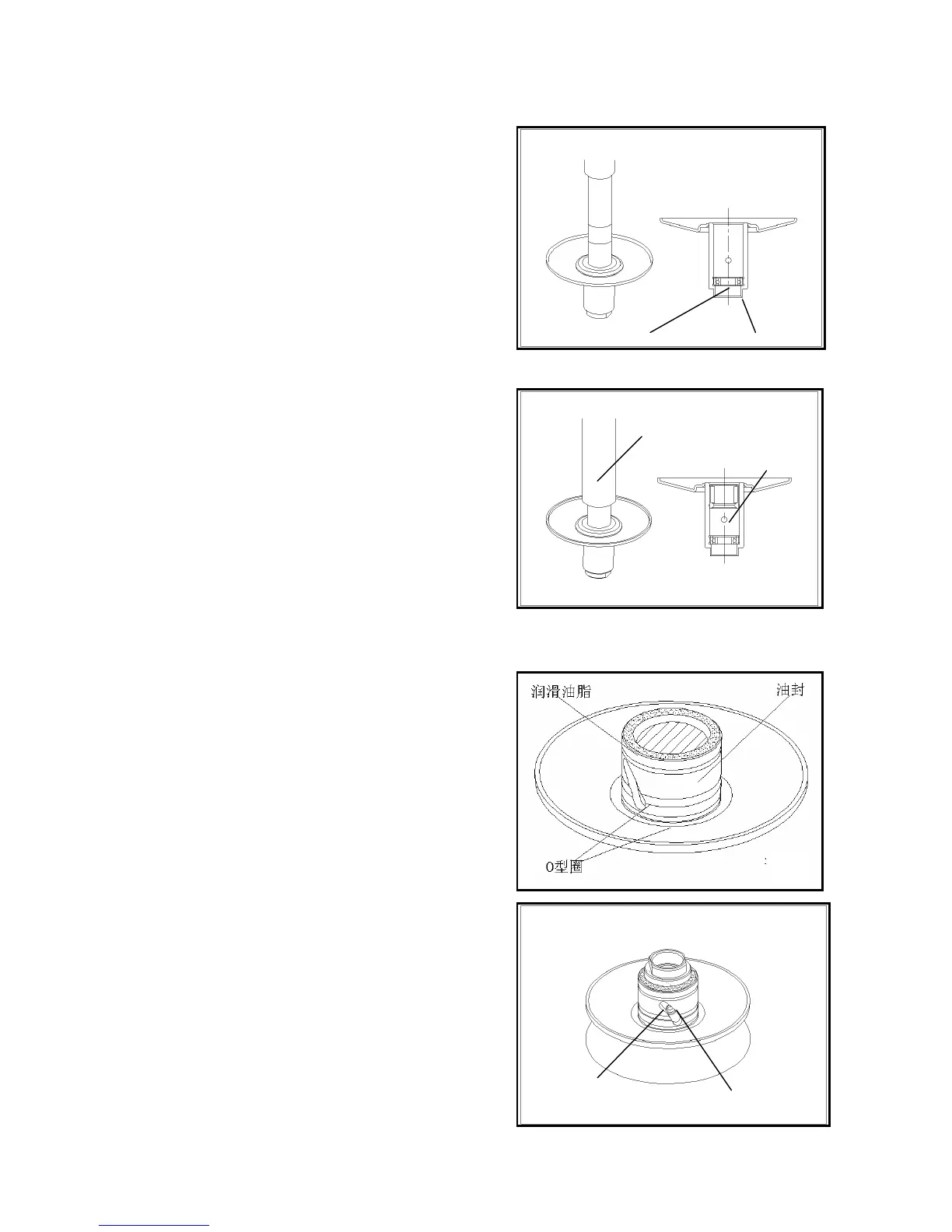

Needle roller bearing should be pressed in with the tool
shown in the figure
14.6.2 Combinations of clutch/driven wheel
Clear out the oil left on the surface of driven wheel
Install the oil seal in the left sliding sleeve of the driven wheel
Apply oil to the O-ring and to mount on the left driven wheel
component
润滑油脂：lubricating grease
O 型圈：O-ring
油封：Oil seal
Assemble the left and right driven wheel together
Put pilot pin coated with oil in the guide slot
