Front axle locking nut 55-62 N·m
7.4 Direction handle
7.4.1 Removing
Remove the rear view mirror component.
Remove the fixing screw of the handle high and low cover decoration.
Remove the handle high cover decoration cap and remove the meter.
Remove the front big cover component.
Remove the left/right combination switch
component.
Remove the oil pump body component.
Remove the left grip and the accelerator
Manipulation handle component.
Loosen the tap welding component fixing bolt
（16）.
Remove the tap welding component（3）.
7.4.2 Installation

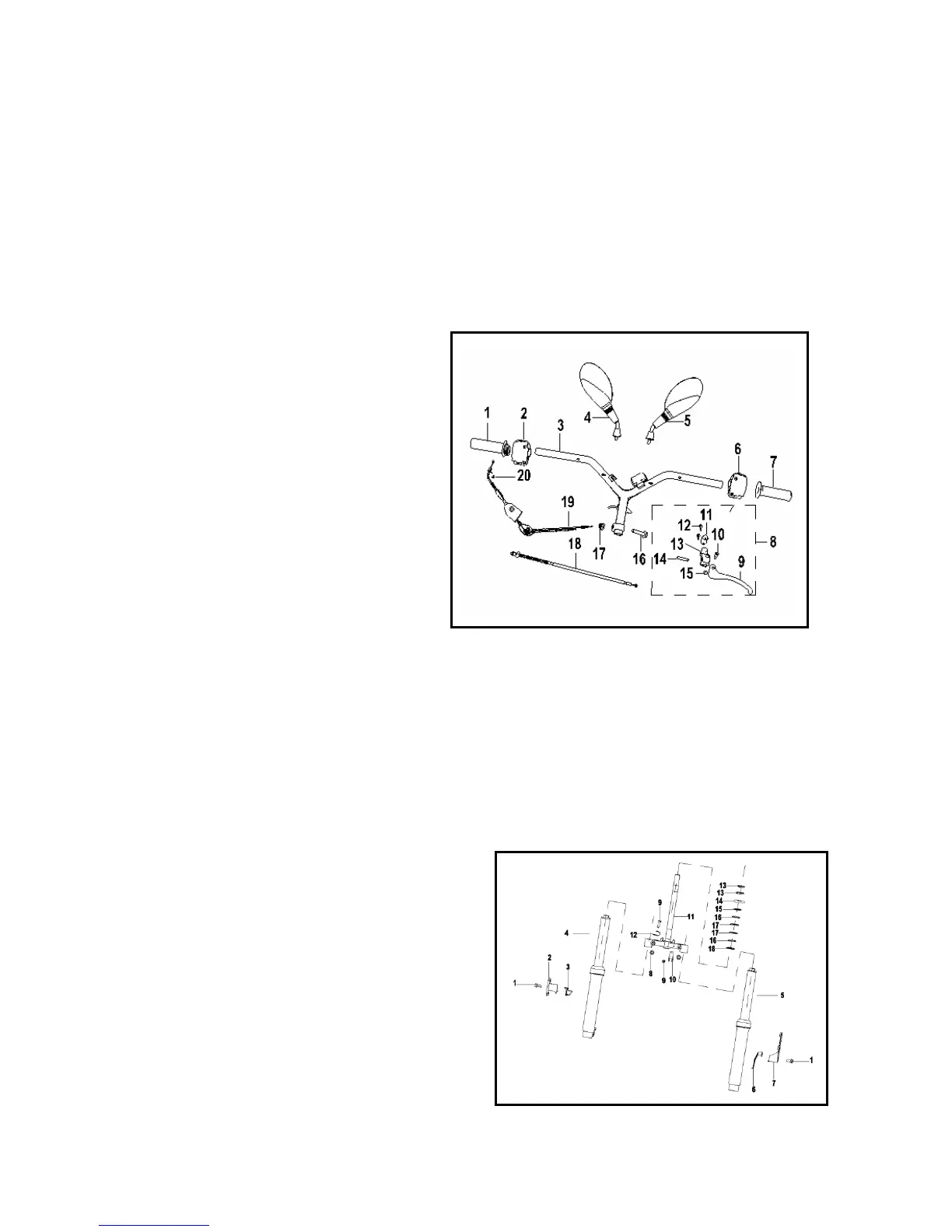

* Note: referring to the assembly and
disassembly view of the QJ50T-21T direction
handle on page 87.
Install in a sequence contrary to the removing.
Tap welding component fixing bolt
Torque value: 40-60 N·m
7.5 Front fork
7.5.1 Removing
Remove the wheel.
Remove the body protection plate.
Remove the brake tube and the odometer wire.
Remove the direction handle.
Remove the compressing bolt (13) and dustproof cover in
turn.
Remove the integral steel bowl (15) and steel ball (16).
Remove the front fork.
（16）。 Remove the high and low steel bowl of the low
bearing (17, 18) and steel ball (16).
Loosen the front muffler fixing bolt (8).
