KEEWAY F-ACT EVO - Direction Handle Specifications; Direction handle

- 91 -
Direction handle

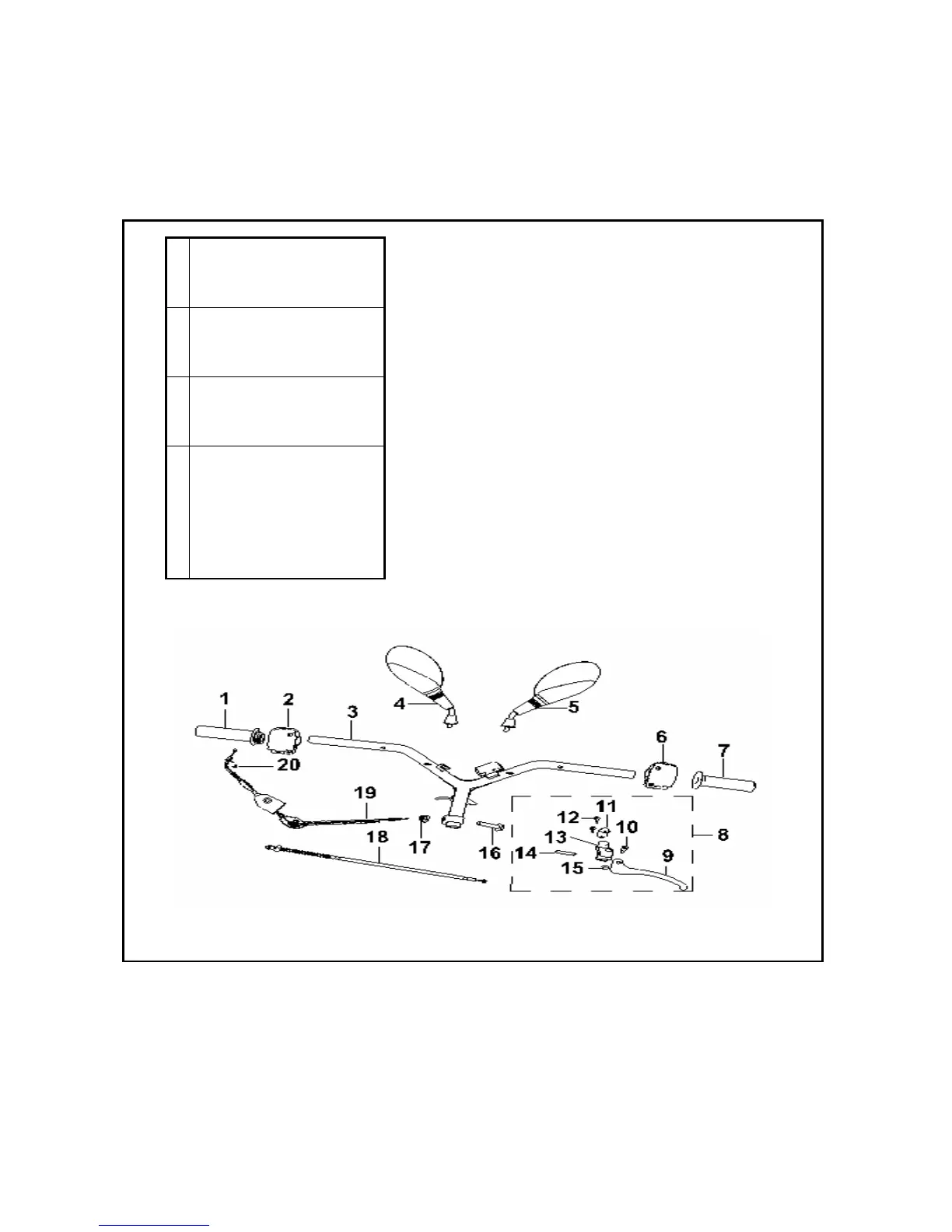

1 right grip component 2 right combination switch 3 tap melding component 4 right rear view mirror
component 5 left rear view mirror component 6 left combination switch 7 left grip 8 left handle
component 9 left handle 10 installation bolt 11 fixing cover 12 boltM6×22 13 handle installation seat
14 rear brake switch 15 nutM6 16 bolt M10×1.25×45 17 self-locking nut M10×1.25 18rear brake
component 19 accelerator wire component 20 screw M5×10
A
Installation torque value of
bolt2(direction handle fixing
bolt) in figure:40-60 N·m
B
Front brake handle free stro
ke:
10-20mm
C
Rear brake handle free stro
ke:
10-20mm
D
Accelerator manipulation ha
ndle(figure6) free stroke:2-5
mm
