KEEWAY F-ACT EVO - 9 Tank;Seat Cushion

- 103 -

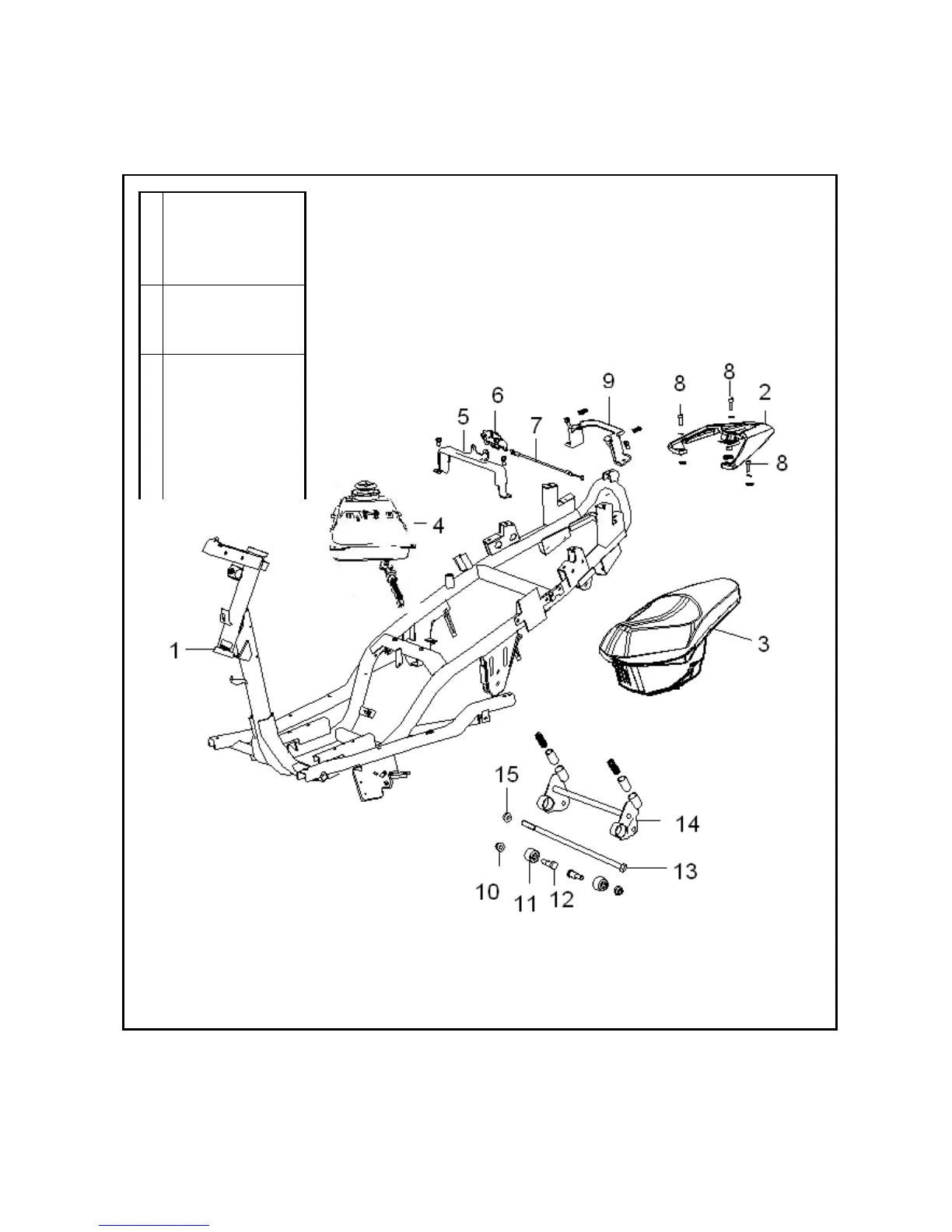

Tank/seat cushion
1 frame component 2 rear handrail 3 seat cushion component 4 tank component 5 seat cushion lock
installation plate 6 seat cushion lock seat component 7 cable component 8 inside hexagonal screw M8×25
9 rear strengthen plate of the helmet bucket 10 self-locking nut M10×1.25 11 bush 12 engine bracket
A
Note: when removing
the tank, the switch
of it must be turned
at “OFF”.
B
The torque value of
the bolt10 in
figure:5-9 N·m
D
The torque value of
the bolt11 in
figure:5-9 N·m
