- 104 -
installation bolt 13 rear rocker arm installation shaft 14 power hanger welding component 15 self-locking
nut M12×1.25

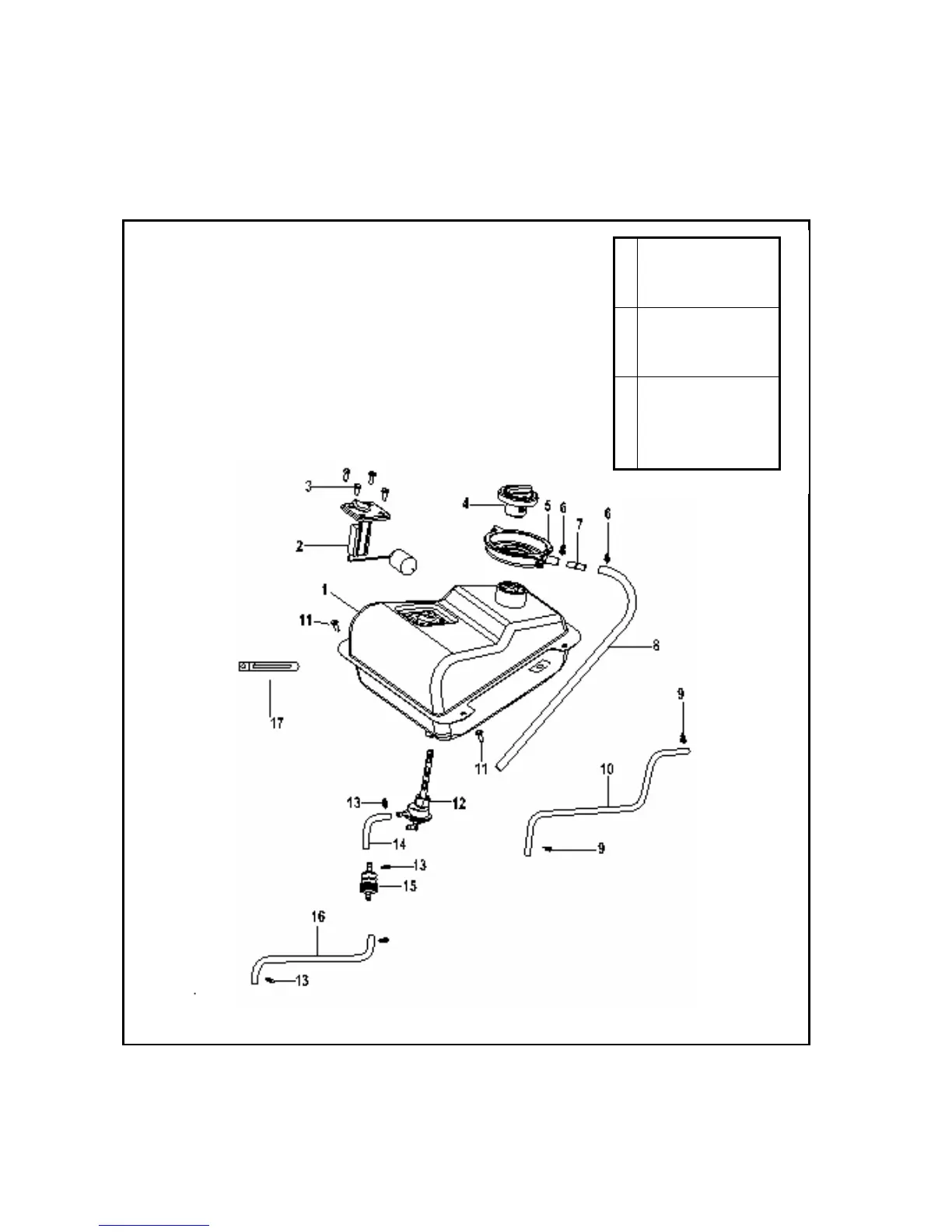

Tank
1 tank body 2 fuel sensor component 3 combination screw M5×14 4 tank cap 5 tank inlet jacket 6 steel
wire clampφ 10 7 connection tube 8 tubing Φ 7×2×300 9 steel wire clamp caφ 7.5 10 tubing Φ
A
Gasoline tank
capacity:
5.6±0.2L
B
The torque value of
the bolt16 in
figure:5-9 N·m
D
Note: when removing
the tank, the
switch of it must be
turned at “OFF”.
