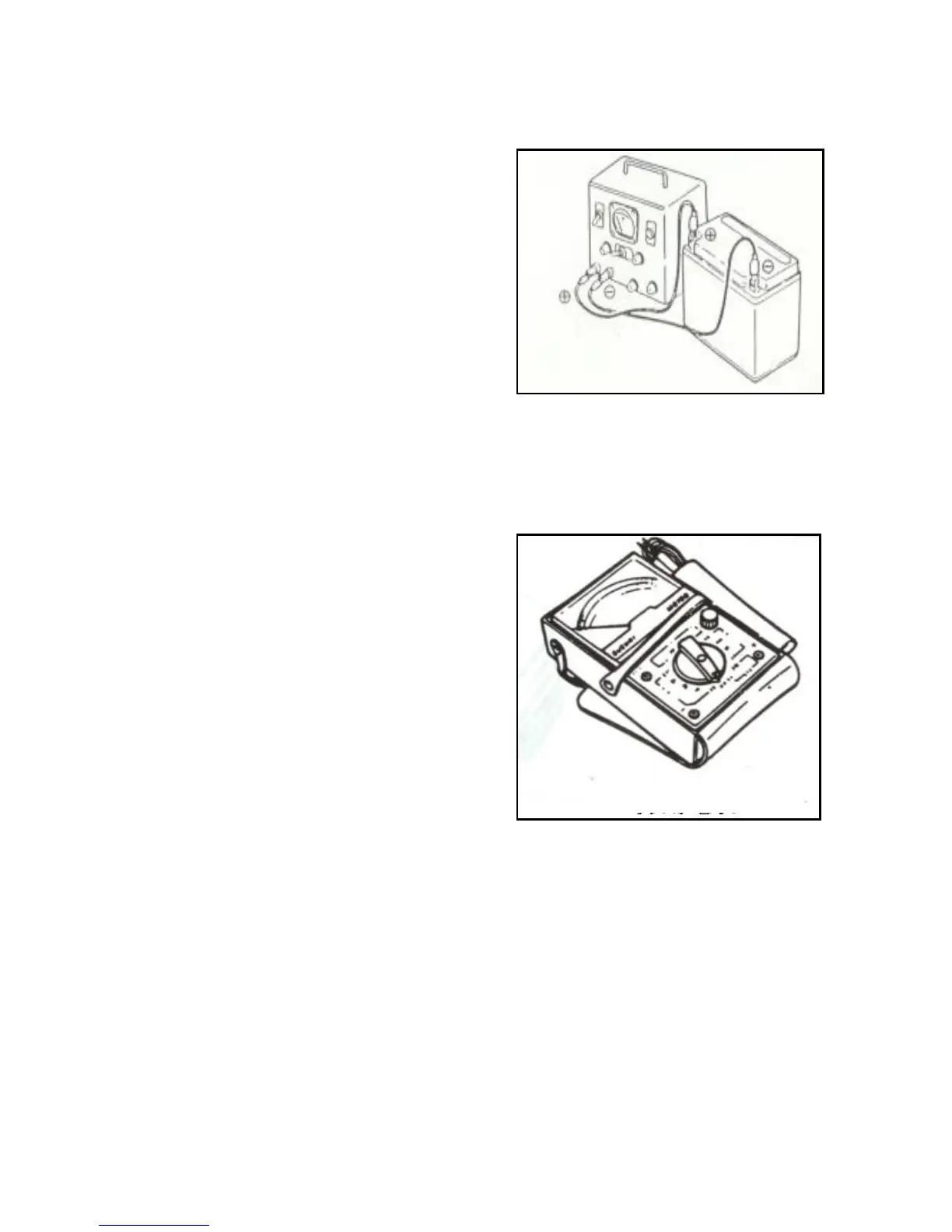

•Measure the voltage for every other 30 minutes.
Charging Current：Standard：0.4A
Emergency：4.0A
Charging Time： Standard：10-15h.
Emergency：30min.
Charging Completion：Open-circuit voltage：above 12.8V
1.4 Charging System
1.4.1Short Circuit Test
Remove the batter ground wire, and connect the
voltmeter between the negative terminal and ground wire.
Turn off the switch and check whether it is short circuit.
*Note
Connect the positive terminal of the multimeter and the negative terminal of the battery together.
Check whether the main switch and main wire are short
circuit under abnormal conditions.
1.4.2 Charging Situation Inspection
Use the multimeter to checking the fully charged battery.
Mount the battery after the engine warming up.
Connect the voltmeter between terminals
Remove the fuse and connect the ammeter between its
terminals.
Start the engine slowly and measure the limiting voltage and
current.
Limiting voltage/rotating speed：14-15V （5.000rpm）
If the limiting voltage is not within the required range, check the voltage adjustor.
Check the limiting voltage of the lighting system.
*Note
Choose AC voltage of the multimeter.
Limiting voltage：13.1±0.5V/2500rpm
If the limiting voltage is not within the required range, check the current adjustor.
