3.2 Failure Diagnosis
Activation failure Weak rotating force Starting motor is rotating
of the starting motor well while the engine is not
•Burnt out fuse ·Low storage battery •Broken starting clutch
•Low storage battery •Poor contact of connecting line •anticlockwise revolution of the starting motor
•Broken main switch •The gear of the starting motor is •Low storage battery
•Broken starting clutch Blocked by foreign matters.
•Broken brake switch
•Broken stating relay
•poor contact of connecting line
•Broken starting motor
3.3 Starting Motor
3.3.1 Dismounting
* Note
Before unloading the starting motor, turn the main switch
to "OFF" first; remove the bond strap of the storage battery,
then turn the power source on the see if the starting motor is
working to ensure the security.
Remove the wire clip of the starting motor first.
Remove the fixed bolt of the starting motor and unload the
motor.
Roll up the rubber overshoe and pull down the adaptor of the starting motor.
3.3.2 Breaking Down
Unload the screws in the outer cover, the front cover, the
motor cover and other parts.

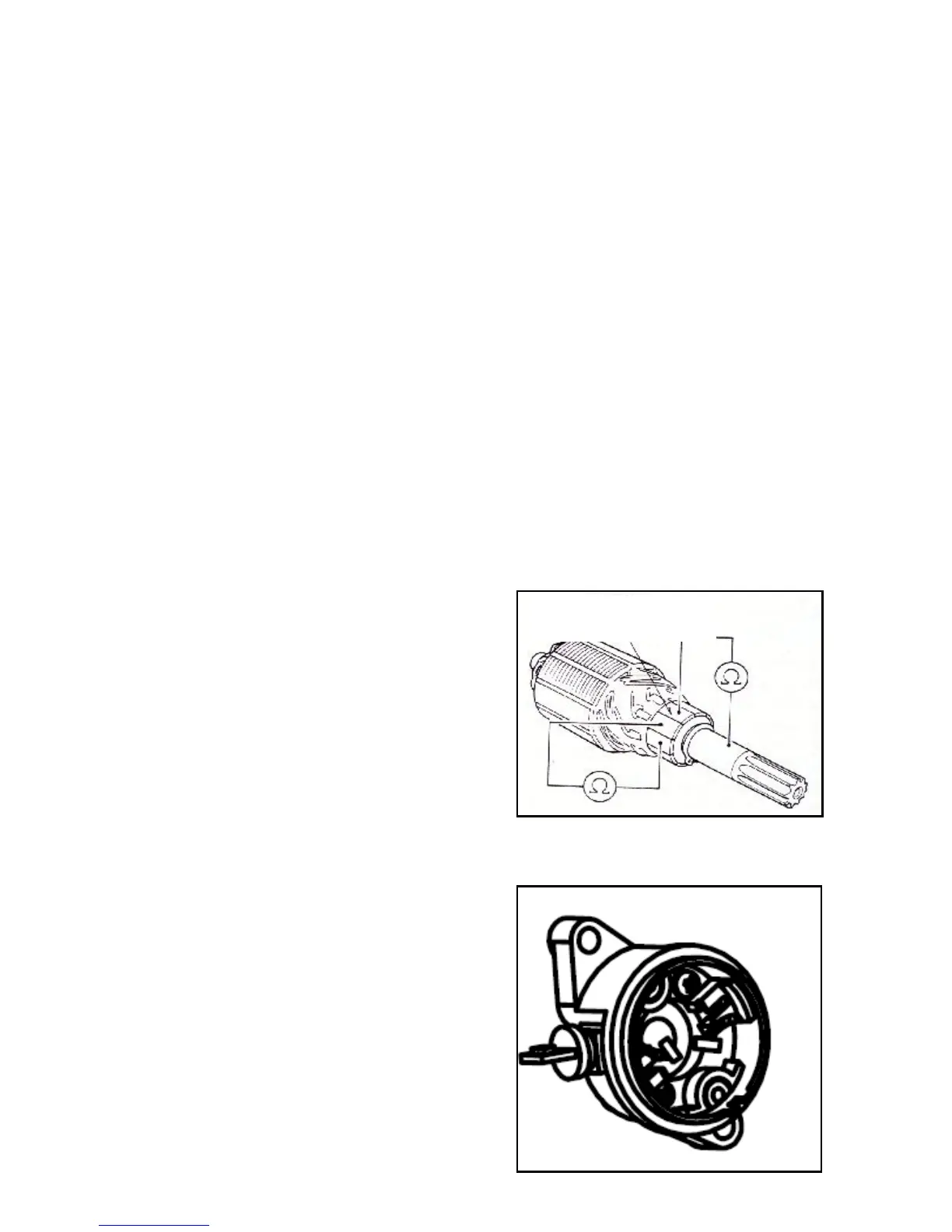

3.3.3 Inspection
Check other component assembling.
Replace for a new one when there is wear, fragment or
