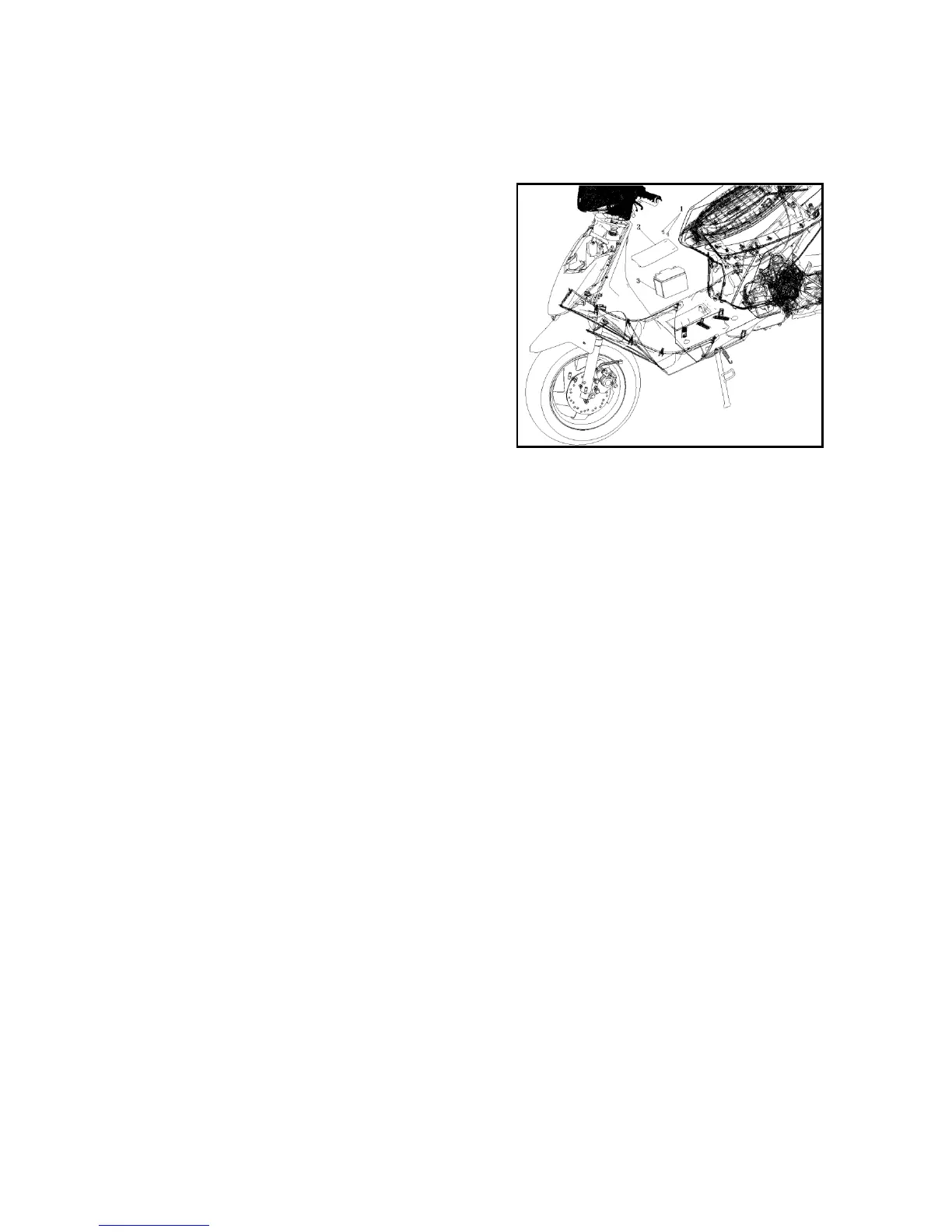

1.3 Battery
1.3.1 Battery Removing
Remove the set screws of battery box cover.
Remove the cover of battery box.
First remove the negative wire and then
remove the positive wire.
Take off the battery.
Warning！
When removing the positive terminal, the tools
should not be contacted with the bracket. It is
dangerous that spark caused by short circuit will
spark the petrol and break the battery.
Install the battery in an opposite order.
*Note
First positive terminal then negative terminal to prevent short circuit.
Do not disconnect the battery during the adjustment of motorcycle,
otherwise inner component of the motorcycle may be damaged.
Check the charging situation (open circuit voltage).
Open the battery cover, and remove the clamp component of battery.
Remove the lead of battery.
Measure the voltage of the terminals
Full charge：13.1V
Insufficient charge：12.3V （not working for 1h）
*Note
Use voltmeter when charging.
1.3.2 Charging
Connection Methods：Connect the positive terminal of the battery charge and the battery.
Connect the negative terminal of the battery charge and the battery.
Warning！
•The battery should be far away from fire source.
•Turn off the charger when starting charging or completing charging
•Take the marked current time as a standard when charging
*Note
•Except emergencies, you should not use emergency charge.
