KEEWAY F-ACT EVO - Front Suspension Specifications; Front suspension

- 90 -
Front suspension

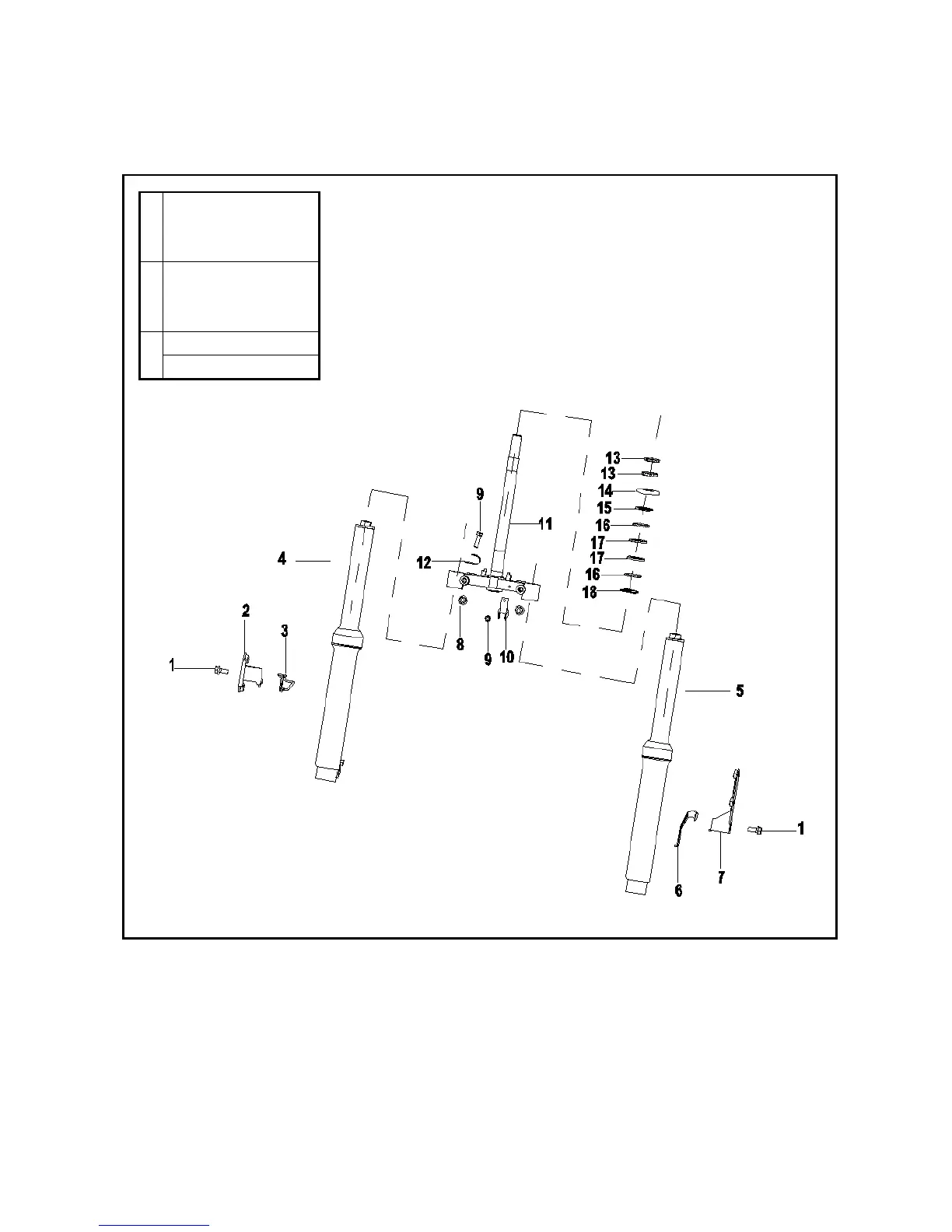

1 bolt M6×16 2 front fender bracket2 3 odometer clip 4 front right muffler component 5 front left muffler
component 6=hydraulic brake wire clip 7 front fender bracket1 8 boltM10×1.25×30 9 boltM6×12 10
hydraulic tube clip 11 low connection plate welding component 12 clip 13 nut 14 dustproof cover 15
integral steel bowl 16 ball5 17 low bearing high steel bowl 18 low bearing low steel bowl
A
Installation torque value
of bolt12 in figure:
37-44N·m
B
Installation torque value
of bolt13 in
figure:5-9N·m
C
Rear ball amount:22
Low ball amount:22
:
