• If the obtained voltage of the end of CDI group is abnormal
while the one of the nd of the alternator is normal, the problem
should be poor contact or wire break.
• If both ends are abnormal, the trigger may be broken, please
refer to the checking method in the failure diagnosis table.

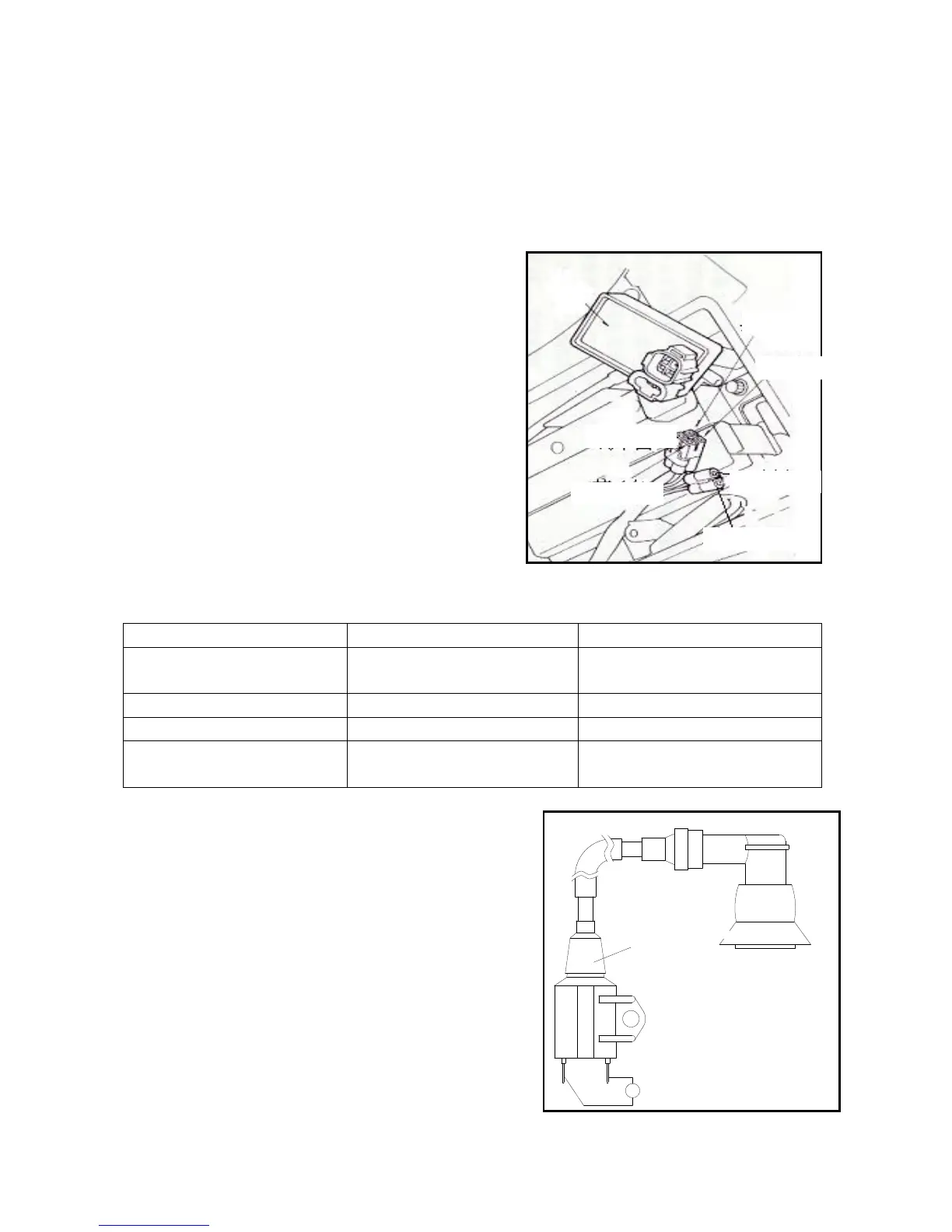

2.4 CDI Group
2.4.1 System Inspection
System Inspection
Remove the CDI group, check the components connecting the
ignition system at the wiring end.
2.4.2 Inspection
拆下 CDI 组，检查接头是否松动腐蚀。
Breakover when the main switch is
―OFF‖
Primary coil of the ignition coil
Secondary coil of the ignition
coil
Black--spark plug cap（without the
spark plug）
2.5 Ignition Coil
2.5.1 Dismounting
Remove the body shield.
Remove the spark plug cap.
Remove the primary wire of the ignition coil.
Remove the fixed bolt of the ignition coil, remove the ignition coil.
Carry out the operations in the opposite order of dismounting
during installation.
* Note
Use the black/white end of primary coil during installation.
