Measure resistance value between the white coils of magnetor with multimeter.
Standard Value：1.5-2Ω（20℃）
Replace the magnetor coil when the measured value exceeds the standard value.
1.7 Magnetor Lighting Coil
*Note
Check the magnetor lighting coil on the engine.
1.7.1 Inspection
Remove the 3p connector of the magnetor.
Measure resistance value between the green/red coils of
magnetor and the body GND with multimeter
Standard Value：2.0-2.5Ω（20℃）
Replace the magnetor coil when the measured value exceeds
the standard value.
1.7.2 Dismounting
Remove the body shield.
Remove the right body cover.
Remove the 2 fixing bolts and 2 screw, and remove the fan cover.

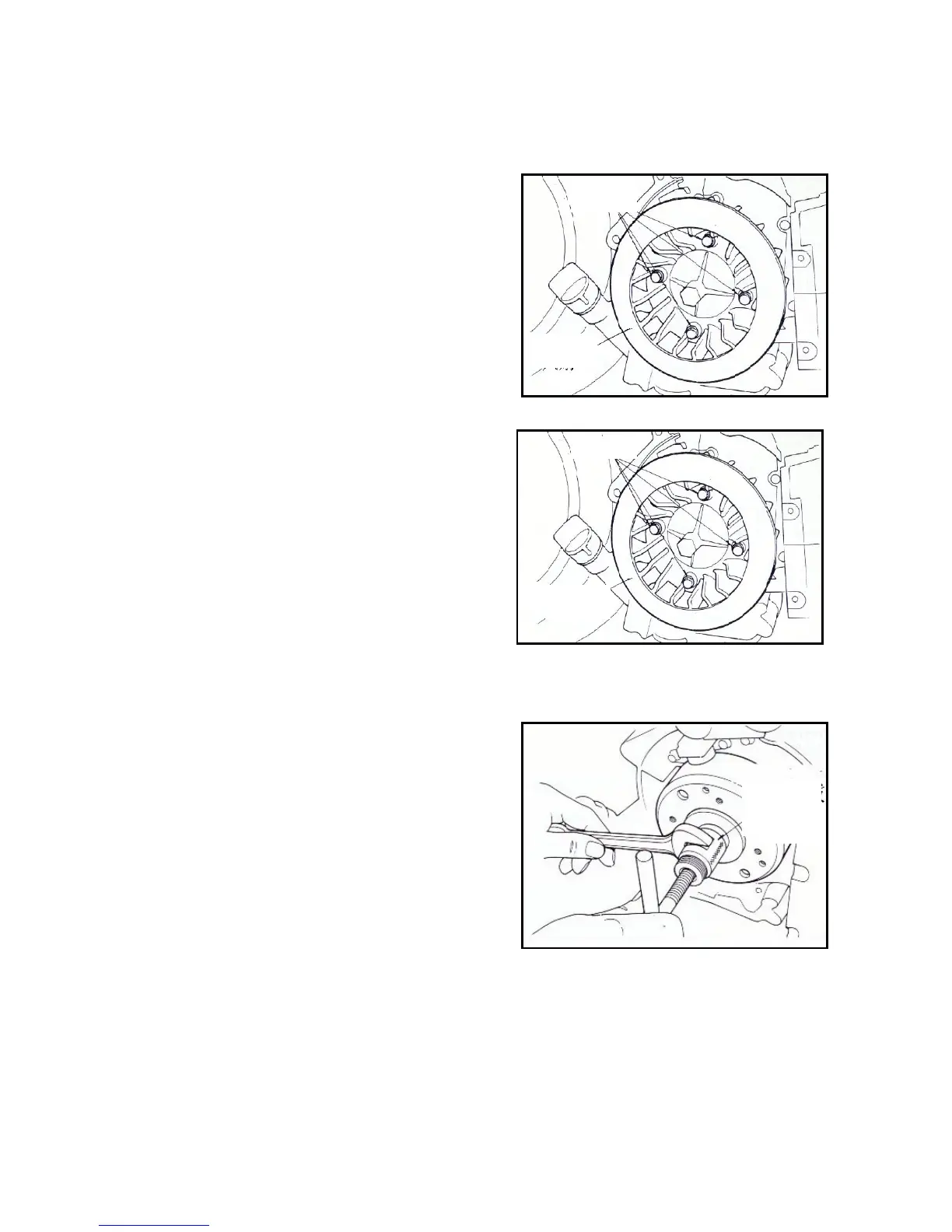

Remove the four fixing bolts of cooling fan, and
remove the cooling fan then.
Fix the flywheel using the universal spanner.
Remove the fixing bolt of the flywheel.
Remove the flywheel using the flywheel remover.
Remove the solid key.
Remove the connector of the alternator wiring.
Remove the alternator stator.
