4×2×340 11 bolt M6×12 12 tank cock component(14*1 clip spring type) 13 steel wire clampφ 8 14
tubing Φ 4.5×2×70 15 filter component 16 tubing Φ 4.5×2×190 17 clip component

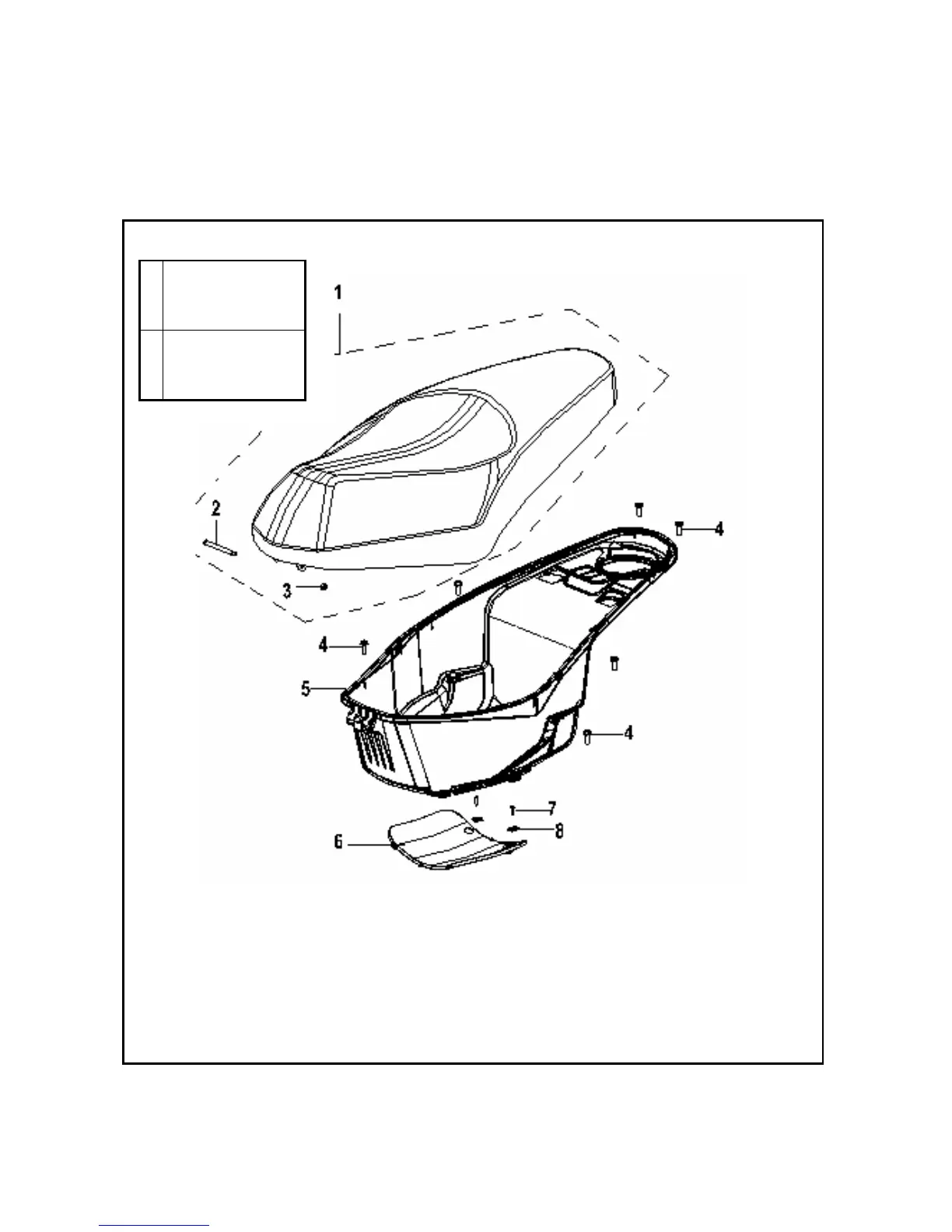

Seat cushion
1 seat cushion component 2 bolt 3 nut M6 4 bolt M6×12 5 helmet bucket 6 helmet bucket bottom cover
A
The torque value of
the bolt4 in
figure:5-9 N·m
B
The torque value of
the bolt7 in
fiure:5-9 N·m
