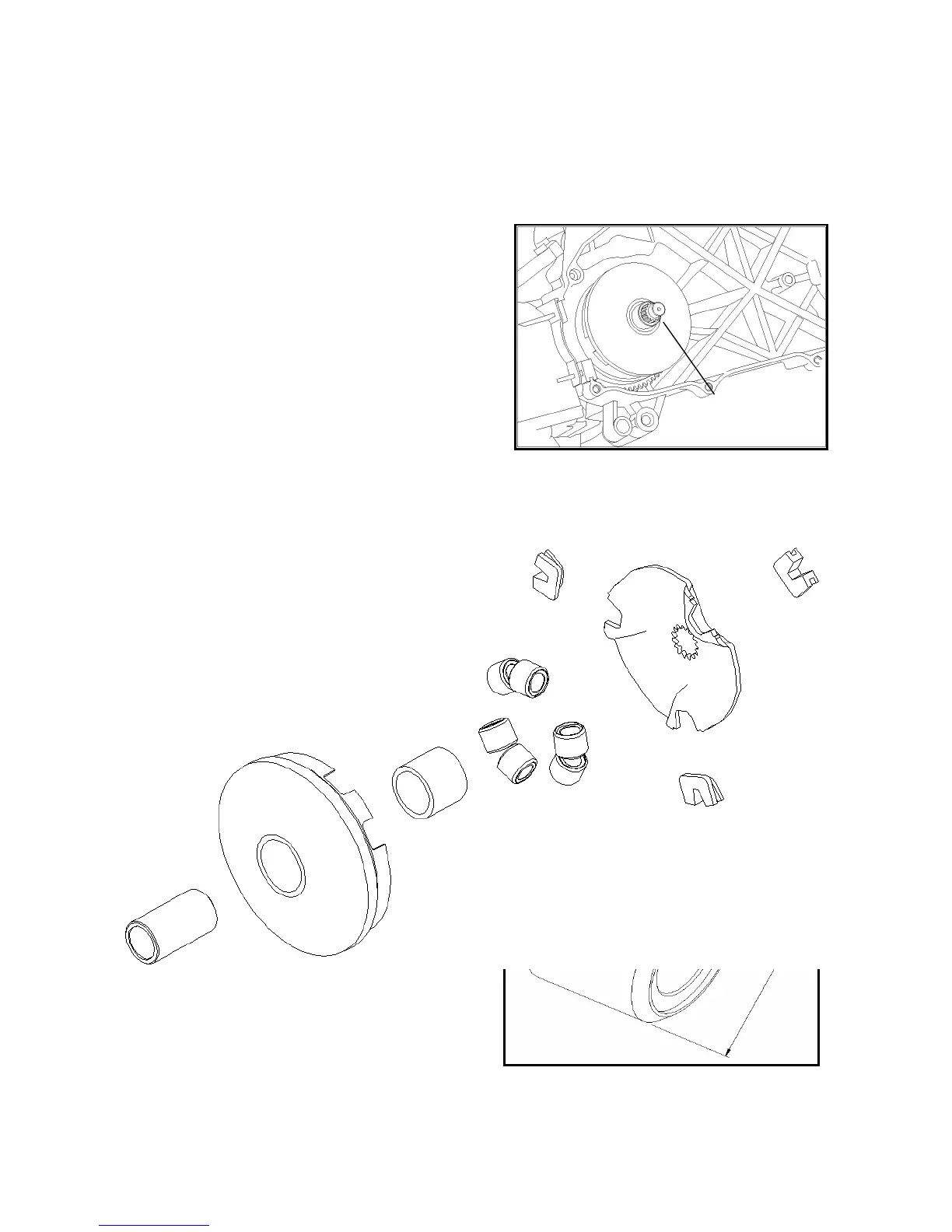

- 133 -
Allowable li
mit: 16mm
。
Please use the
original parts when r
eplacing.
Remov
e right half component
s of driving wheel
.
14.4.2
Disassembly
of
right
half
components of driving wheel
Check the wear
of ball
Measure the o
utside diameter of bal
l
Allowable li
mit: 14.4mm
。
Right
half
components
of
driving wheel
133
135
Table of Contents
Default Chapter
2
Table of Contents
2
Preface
4
Preparation Data
5
Motorcycle Identification
9
Important Notices
9
Special Tools
10
Inspection/Adjustment
37
Oil Level
40
Air Filter
41
Spark Plug
42
Idle Speed Adjustment
44
Gear Oil
45
Drive Belt
46
Inspection and Maintenance of Electrical System
51
1 Battery/Charging System
53
Preparing Documents
53
Failure Diagnosis
54
Battery
55
Charging System
56
Rectifier
57
Magnetor Charging Coil
57
Magnetor Lighting Coil
58
2 Ignition System
60
Material Preparation
61
Ignition System
61
Failure Diagnosis
62
Ignition System Inspection
63
CDI Group
65
Ignition Coil
65
Trigger
66
3 Activation System
68
Material Preparation
68
Failure Diagnosis
69
Starting Motor
69
Starting Relay
71
4 Bulbs/Switches/Meters
73
Material Preparation
74
Failure Diagnosis
74
Headlight Bulb Replacement
74
Front Turn Signal Lamp Bulb Replacement
74
Taillight Bulb Replacement
75
Meters
76
Power Lock
76
Speaker
77
Handle Switch
77
The Check and Maintenance of the Chassis
78
5 Brake
79
Front Hydraulic Brake
79
Rear Hub Brake
80
Rear Hub Brake
84
6 Body Cover
88
Front Suspension
91
Direction Handle
92
7 Front Wheel/Front Suspension
93
Preparation Data
93
Fault Diagnosis
93
Front Wheel
94
Direction Handle
97
Front Fork
97
8 Rear Wheel/Rear Suspension
98
Rear Wheel
100
Fault Diagnosis
101
Preparation Data
101
The Rear Wheel
102
Rear Muffler
103
9 Tank/Seat Cushion
104
Preparation Data
107
Fault Diagnosis
107
Tank/Seat Cushion
107
Check and Maintenance of the Engine
109
Lubrication System
111
10 Lubricating System
112
Preparation Data
112
Fault Diagnosis
112
Machine Oil Pump
113
Preparation Data
116
Operation Precautions
116
Fault Diagnosis
116
Disassembly of Carburetor
117
Assembly and Adjustment
119
Cylinder Head
120
12 Cylinder Cover
122
Preparation Materials
122
Failure Diagnosis
122
Cylinder Cover
123
Checking of Cylinder Cover
123
Assembly of Cylinder Cover
123
Thirteenth, Cylinder Block and Piston
125
Preparation Materials
125
Failure Diagnosis
126
Cylinder Block
126
Piston
127
Assembly of Piston
127
Preparation of Materials
132
Failure Diagnosis
132
Left Crankcase Cover
133
Driving Plate
133
Clutch/Driven Wheel
135
Disassembly of Clutch and Driven Wheel
137
Assembly
140
Feet Start Mechanism
140
5
