• Change the brake shoe block.
• The brake should be marked at its side before removing, if it
will be used again.

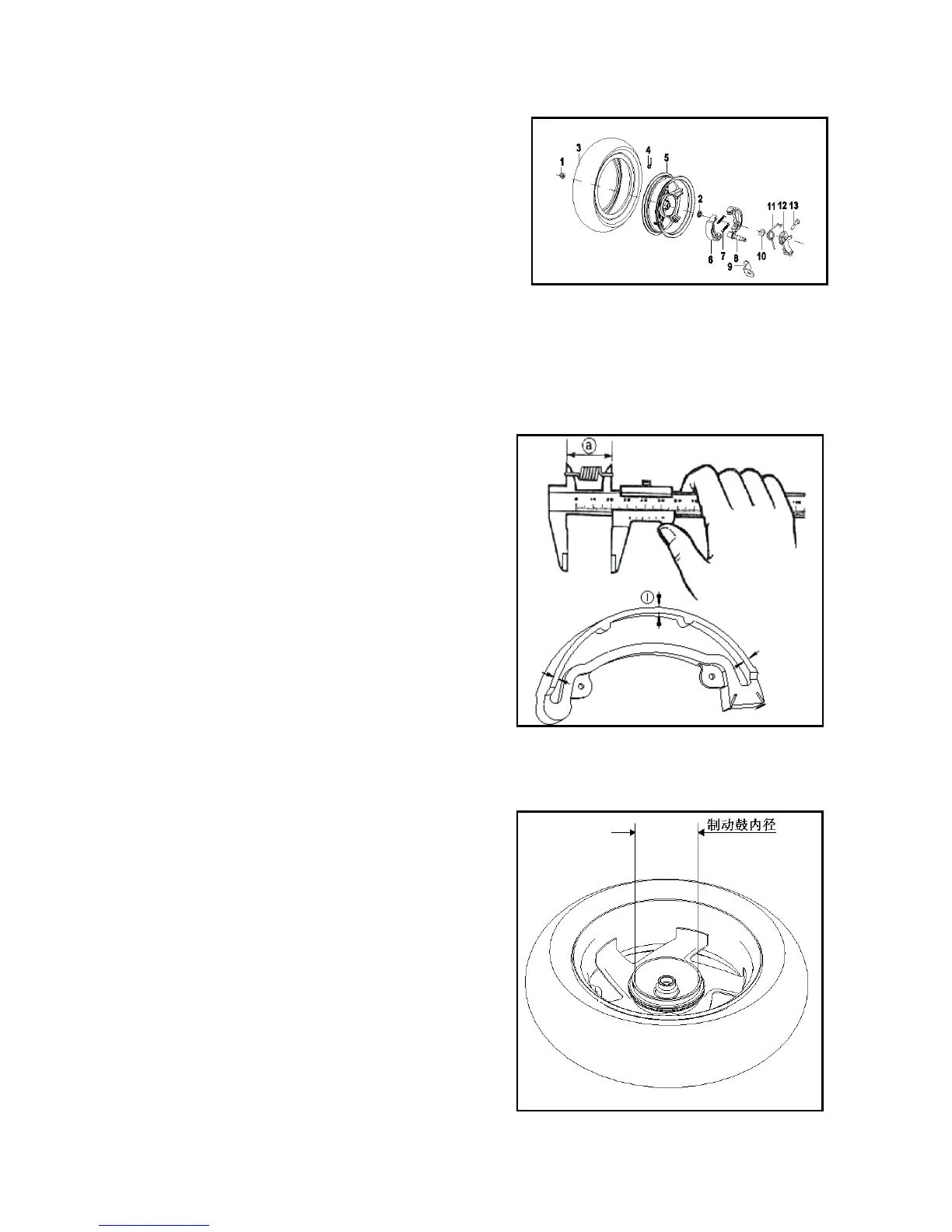

Remove the following components from the rear wheel.
Rear brake:
1. Rear rocker arm installation bolt（13）
7.Brake shoe block component（6）
2. Rear brake rocker arm component（12） 8. Brake shoe block tension spring（7）
3. Rear wheel fixing nut（1） 9. Tire E11 75R -000216
4. Sealing ring（10） 10. Rear rim component3.5×12
5. Rear brake return spring（11）
6.Rear brake cam shaft（8）
Note: referring to detailed composition view in page 78.
5.4.2 Check
Check whether the brake hub and brake shoe block have been
worn and change them if needed.
Measure the thickness of the brake shoe block and brake hub
inside diameter and record the maximum value.
*Note
•Must be measured with a micrometer.
。Measure the thickness of the brake inside diameter and
brake shoe block.
If the brake shoe have block is less than the maintenance
value, it should be changed.
Note: The brake shoe block should be changed in pairs.
Rear brake hub inside diameter φ 110mm
Rear brake shoe block thickness 4.5mm
Available limit: Brake hub inside diameter 111mm
Brake shoe block 3.5mm
制动鼓内径:Brake hub inside diameter
5.4.3 Installation
Install the brake shoe block component.
Install the rear wheel.
Install the muffler.
*Note:
The brake being stained with grease will decreases the
performance of the brake and results the failure of the brake.
