Screw the bolt and nut to the specified torque value.
Torque value:
Rear wheel fixing nut: 100-113N·m
Do not make the brake shoe block and front brake disc stained with grease.
If the brake shoe block and front brake disc are stained with grease, they must be cleaned with brake cleaning
fluid.

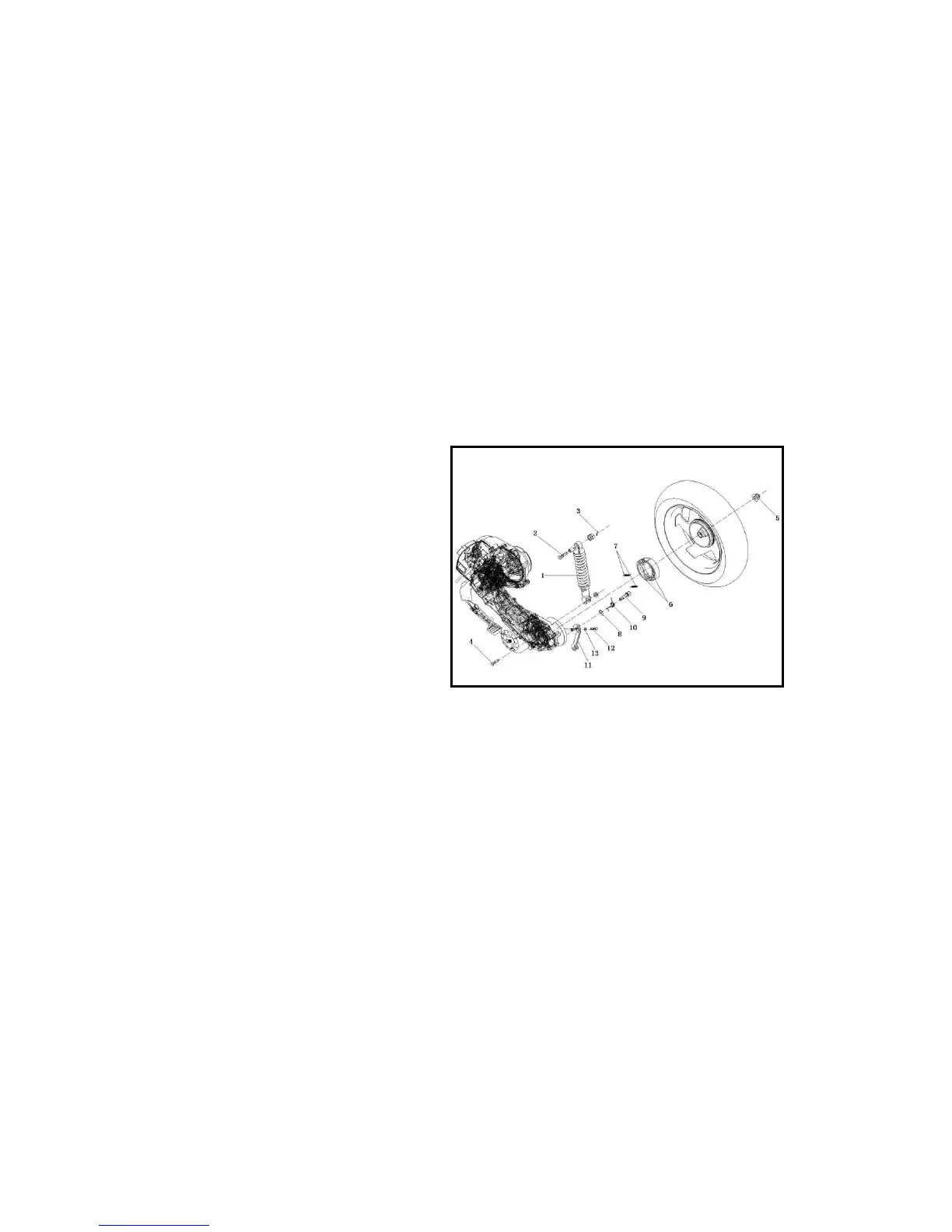

Rear brake:
1. Rear rocker arm installation bolt（12） 7.Brake shoe block component（6）
2. Rear brake rocker arm component （11） 8.Brake shoe block tension spring（7）
3. Rear wheel fixing nut（5） 9.Tire E11 75R -000216
4. Sealing ring（8） 10. Rear rim component3.5×12
5. Rear brake return spring（10）
6. Rear brake cam shaft（9）
*Note
The brake shoe block being stained with grease will decrease the performance of the brake.
Note: referring to the detailed decomposition view on page 78.
