Gas leaks

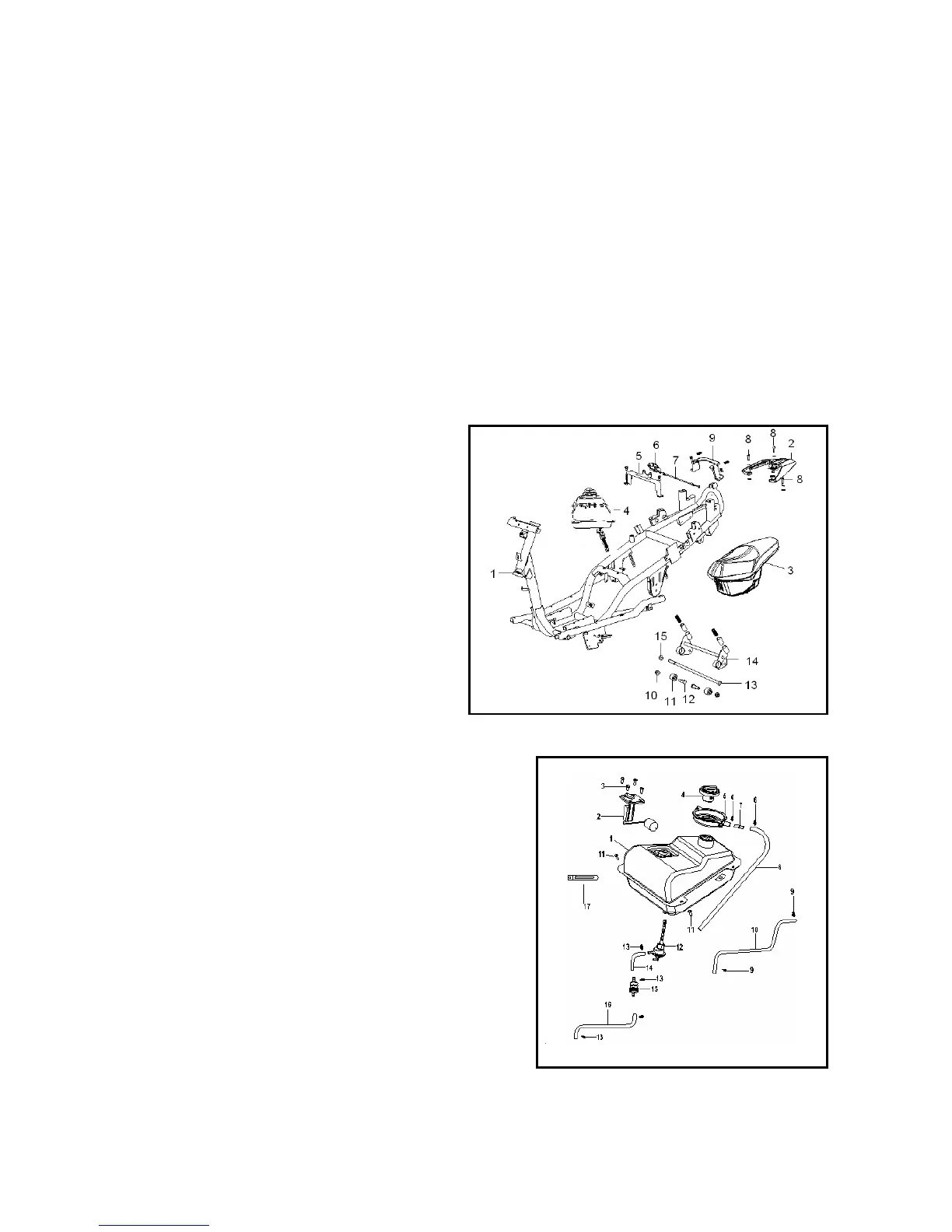

9.3 Tank/seat cushion
9.3.1 Removing
Open the seat cushion（1）。
Remove the seat cushion fixing bolt（4）。
Remove machine oiler protection cover.
Remove the machine oiler.
Remove the cushion and helmet bucket.
Remove the rear container assembly.
Remove the left/right rear protection plate
component.
Remove the rear shelf assembly and rear installation
component of the helmet bucket.
Turn the tank switch to ―OFF‖
Disconnection: fuel hose
Remove the tank from the frame.
Note:
Refer to the detailed assembly and disassembly view on page
99,100,101.
9.3.1Installation
Conduct in a sequence contrary to the ―removing‖
Installation value:
Rear shelf fixing bolt 22-29 N·m
Tank fixing bolt 5 - 9 N·m
Helmet bucket fixing bolt 5 - 9 N·m
