- 123 -
Cylinder block and piston

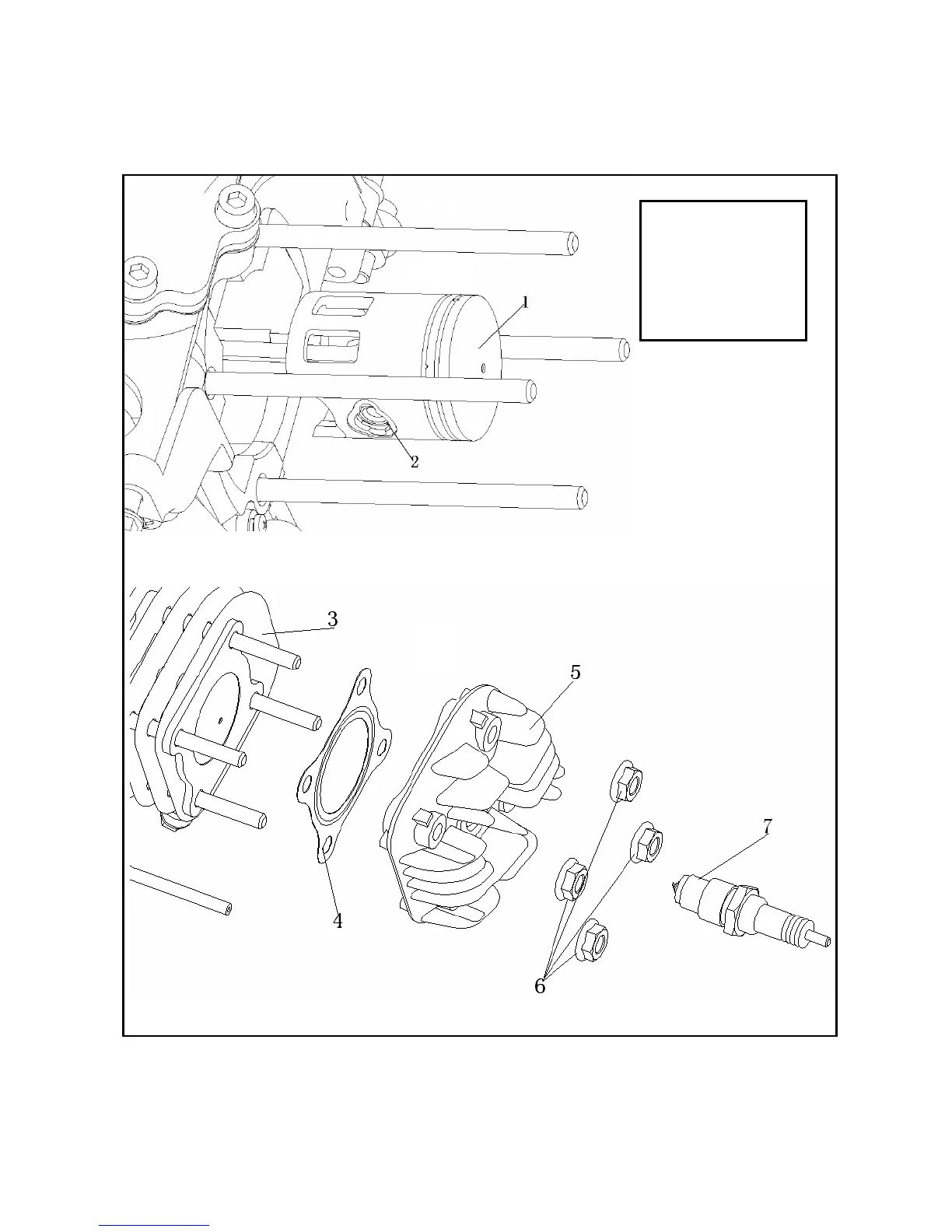

1. Piston 2. Piston pin 3. Cylinder block 4. Cylinder gasket 5. Cylinder cover 6. Nut
7.Spark plug
Note:
All components should
be washed and blew
with compressed air
before checking.
