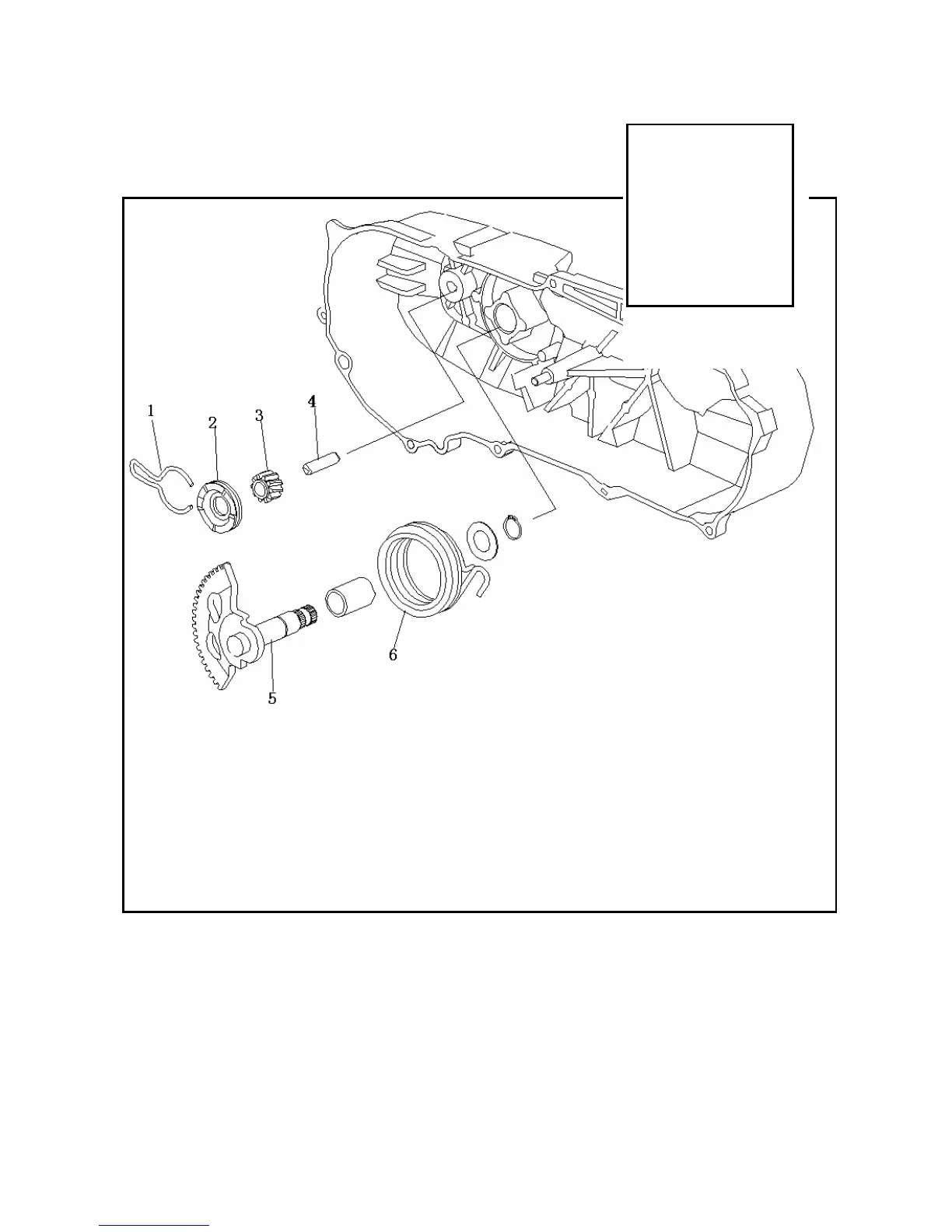

Feet startup mechanism
1. Retainer
2. Start claw
3. Idler gear
4. Idler shaft
5. Starting shaft assembly
6. Feet start shaft spring
Note: During the operation,
oil is not allowed to be left
on the surface of v-shaped
belt. It should be removed if
there is any oil left so as to
reduce the slippage between
v-shaped belt and pulley.
