Charging System

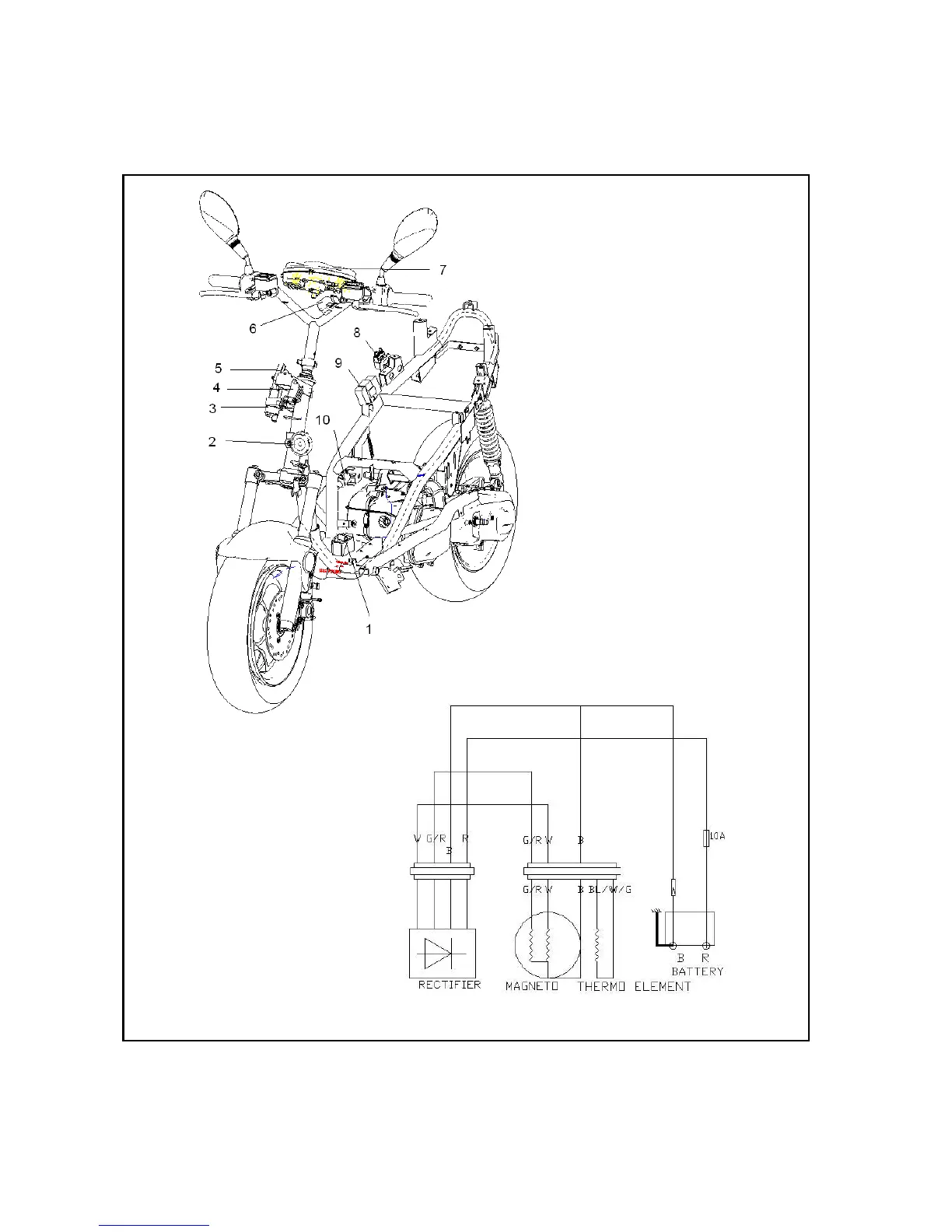

1 Battery 2 Horn 3 Power locking components 4 rectifier 5 Release resistance
6 Frequency conversion flash apparatus 7 Meters 8 Starting relay 9 igniter 10 Ignition coil assembly
