- 71 -

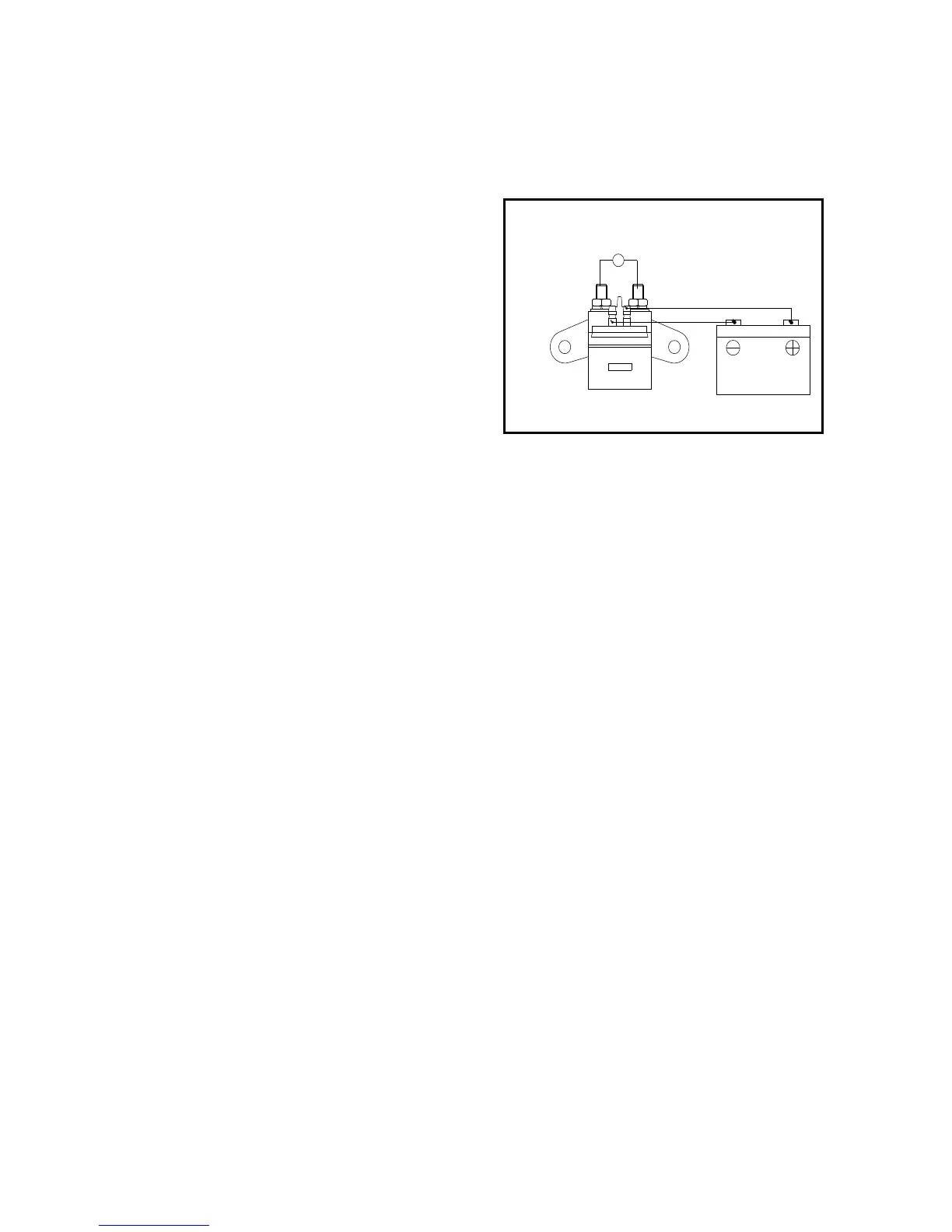

3.4.4
Actuation Inspection
Remov
e the storage battery
out of the starting relay
,
and connect the en
d of the star
ting relay with a m
ultimeter
.
Connect the ful
ly char
ged storage battery
between the
black wire and t
he green/y
ellow wire of the relay
.
The relay
will utter a ―cli
ck‖ and the electric
im
pedance
the mul
ti
meter
shows is ―zero‖.
Ω
71
73
