- 98 -

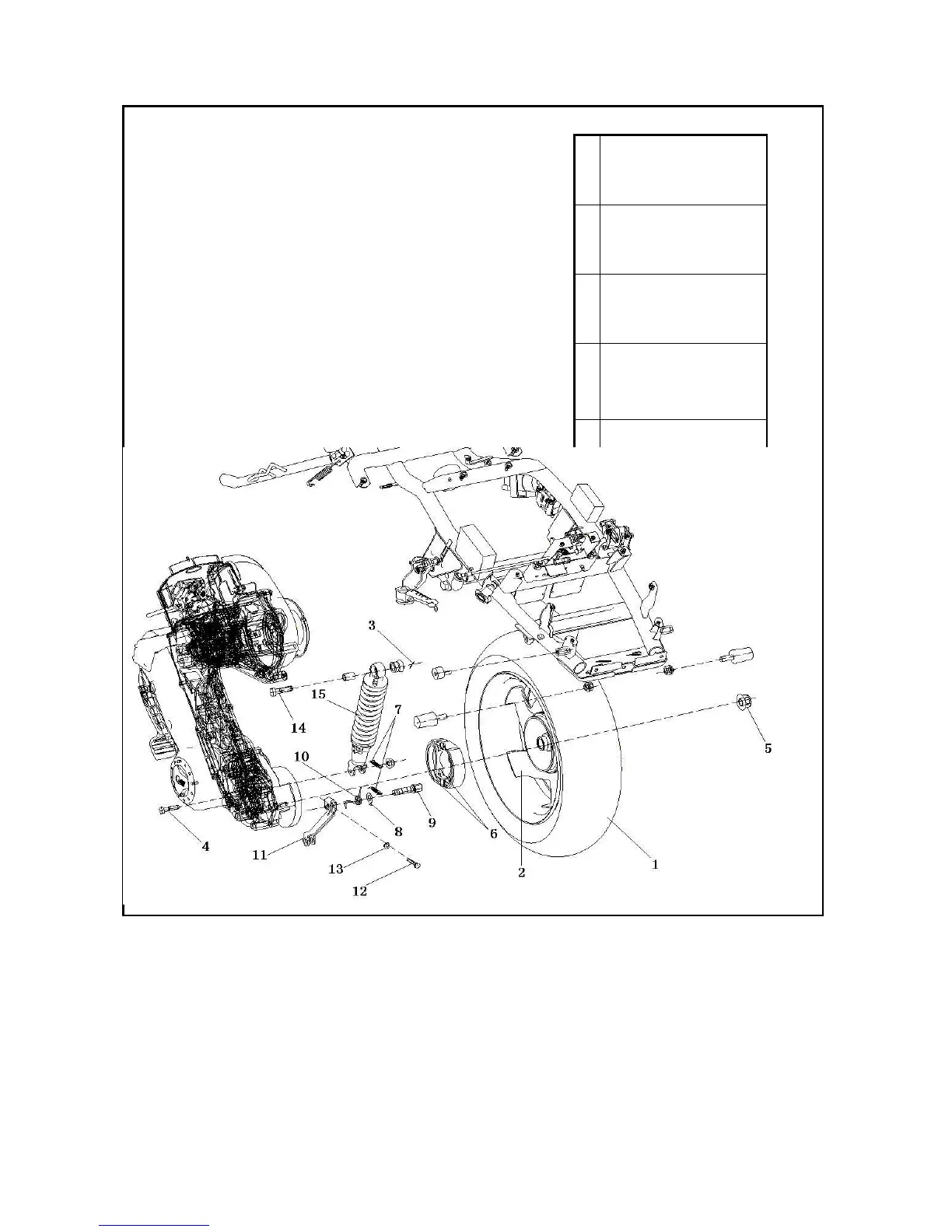

1 tire 130/70-12 2 rim 3.50×12 3 split pin 4 bolt M8×35 5 nut M11.5 6 brake shoe block
component 7 brake shoe block tension spring 8 sealing rim 9 rear brake cam shaft 10 rear brake
return spring 11 rear brake rocker arm 12 rear rocker arm installation bolt 13 O shaped ring 14 bolt
M10×1.25×40 15 rear muffler component
A
Torque value of the rear
wheel fixing nut5 in figure:
100-113N·m
B
Installation torque value of
the bolt4 in figure:
22-29m
D
Installation torque value of
the bolt14 in figure:
37-44m
E
Brake hub inside
diameter( wear limit): 111mm
F
Brake shoe block lining(wear
limit): 3.5mm
