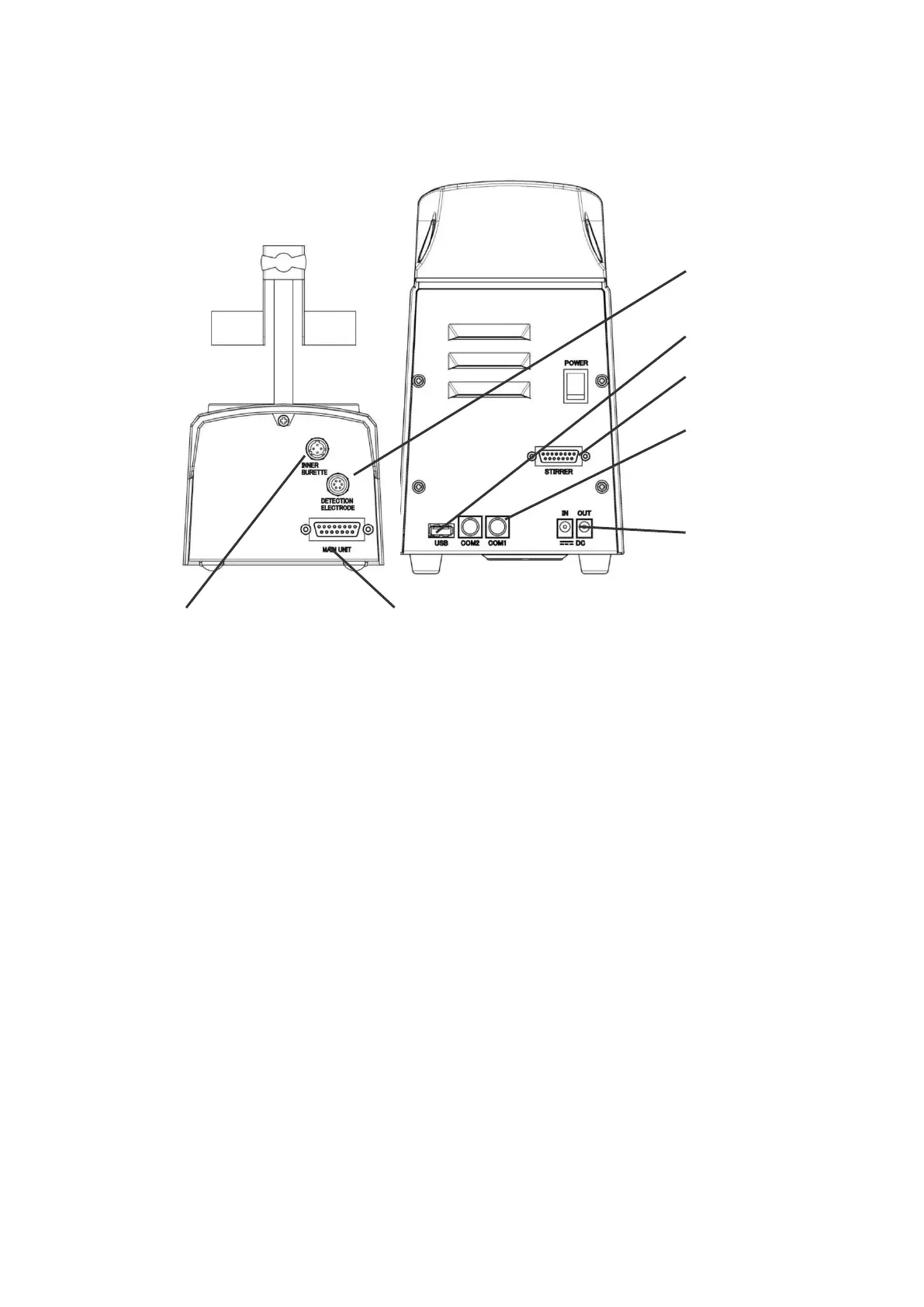

2. Parts configuration and each function
MKC-710 15
15)Detection
electrode connector
11) USB connecter
12)STIRRER
connecter
10) COM2 port
10) COM1 port
14) Power connecter
13) Inner burette connector 16) STIRRER connecter
10) COM1 and COM2 port
These ports are for connections to Dot printer, Balance or PC. Dot printer can be
connected only COM1 port.
11) USB connecter
This connects USB flash drive to store the measurement result and method.
Moreover, can be connected USB printer, the key board for inputting letters, the
barcode reader for sample setting or the foot switch that can start to measure
without touching the unit. The control with PC and the data communication with
PC are possible by connecting PC (special data installation software "SOFT-CAP" is
necessary).
12) STIRRER connecter(to Stirrer)
This connects the stirrer to stir sample solution.
13) Inner burette connector
The inner burette for electrolysis electrode is connected here.
14) Power connecter
This is for connecting the power cable.
15) Detection electrode connector
The twin platinum electrode is connected here.
16) STIRRER connecter(to MAIN UNIT)
The connecting cable to the stirrer is plugged in here.
