E4990A Help
66

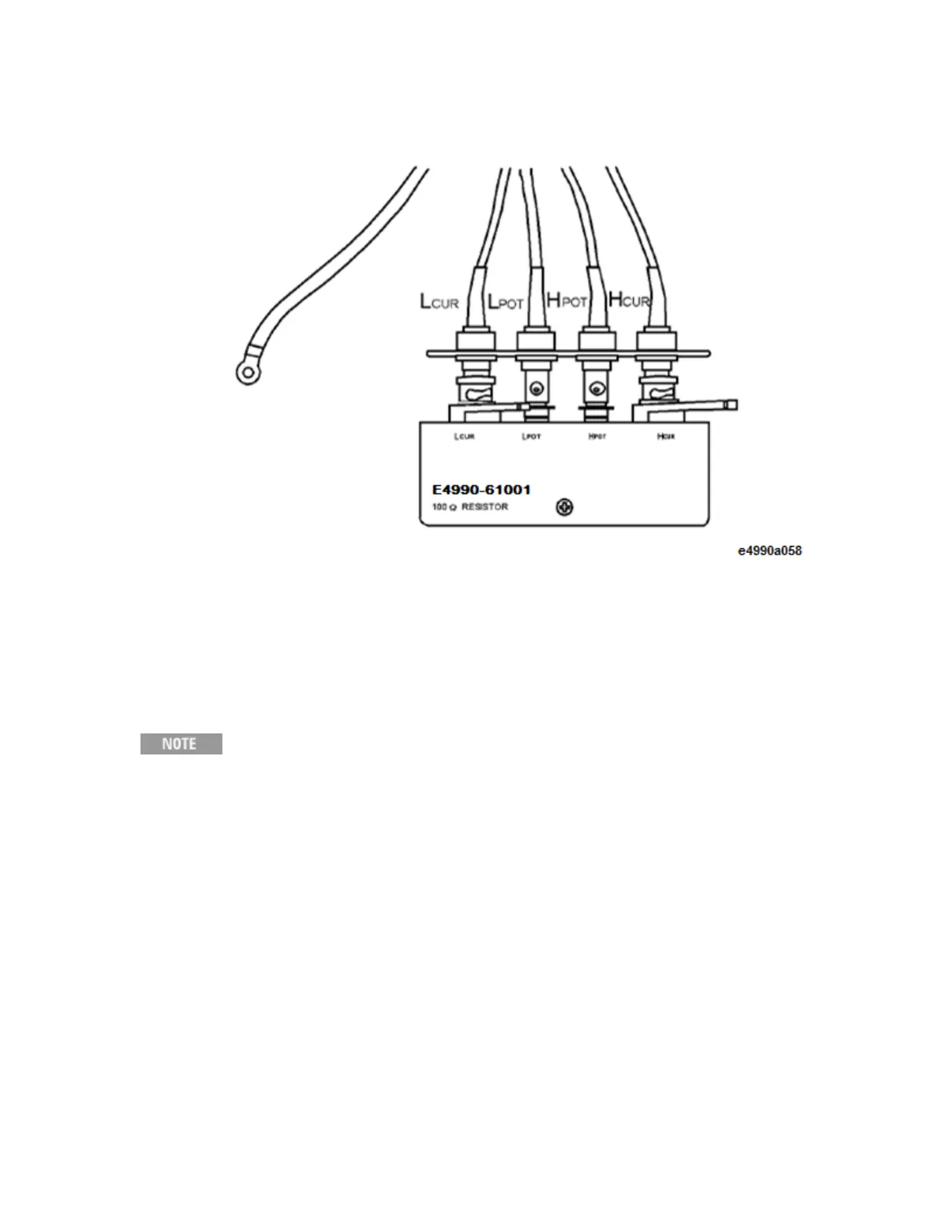

10. Click E4990-61001 to start the measurement.
11. When the load data measurement is completed, the softkey label
changes to E4990-61001 [Done].
12. Click Save Impedance to start calculating the adapter setup data
from the measured phase compensation and load data. The adapter
setup data is automatically saved to the E4990A.
Click Cancel to cancel the adapter setup process. If the
adapter setup process is cancelled, the previously obtained data is
saved as the available adapter setup data.
Adapter Setup Procedure for the 16334A
Perform the adapter setup for the 16334A Tweezers Type Test Fixture in
accordance with the following procedure:
1. Make sure that the 16334A is correctly connected to the four-
terminal pair port of the E4990A. The 16334A must be directly
connected to the four-terminal pair port of the E4990A.
2. More than 30 minutes warm-up time is required after turning on the
E4990A.
3. Press Cal > Accessory > 16334 (15 MHz max).
4. Press Cal > Adapter Setup.
