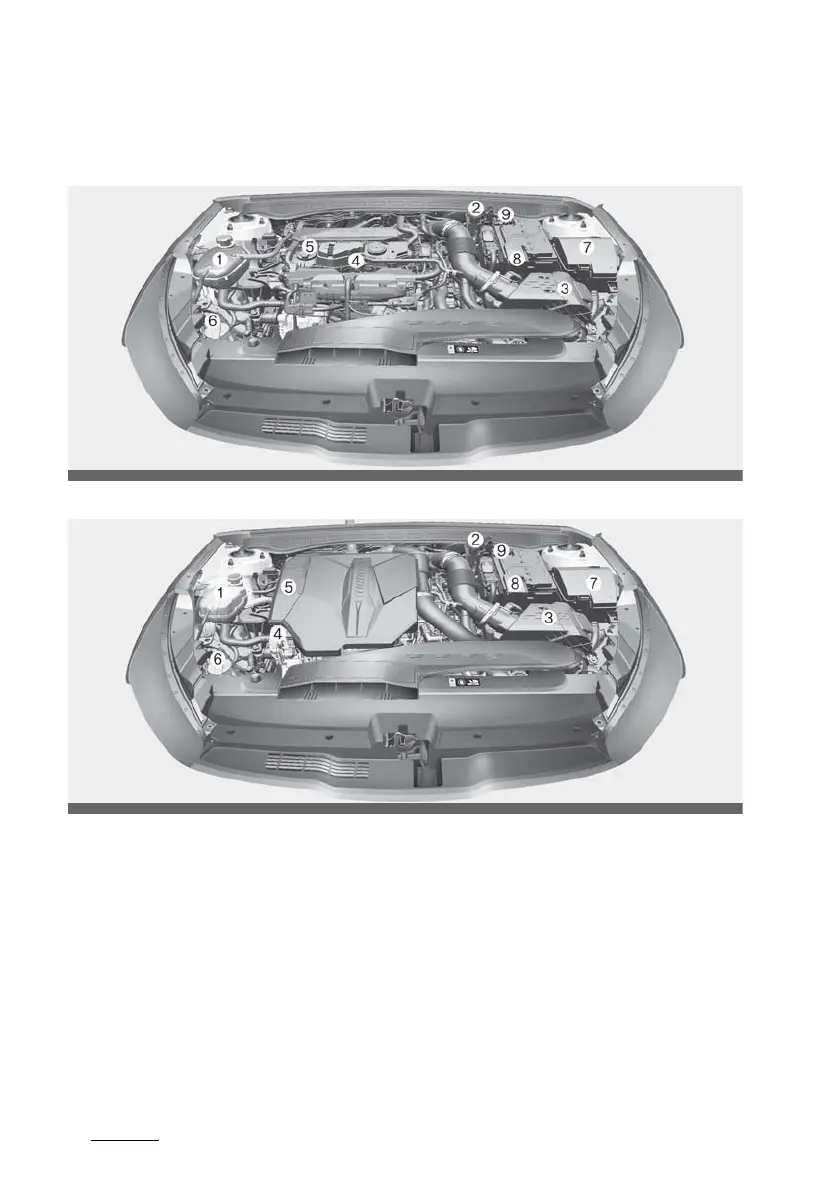

Engine compartment
Engine compartment
Smartstream G1.6 T-GDi
Smartstream G2.5 T-GDi
* The actual engine room in the vehicle may differ from the illustration.
1. Engine coolant reservoir 7-19
2. Brake fluid reservoir 7-22
3. Air cleaner 7-25
4. Engine oil dipstick 7-17
5. Engine oil filler cap 7-17
6. Windshield washer fluid reservoir 7-24
7. Fuse box 7-46
8. Positive battery terminal 7-46
9. Negative battery terminal 7-46
