CHAPTER 1
SYSTEM OVERVIEW
1-1 SYSTEM DESCRIPTION
The ARIES™ Fire Alarm/Suppression Control Unit is an intelligent control unit in a compact
housing for fire suppression system and/or fire-alarm system applications. The control unit uses
a single printed circuit board (PCB) design and a switching power supply. A keypad display
membrane (hereinafter referred to as the display) is mounted to the PCB for system status and
user operation.
The ARIES has one signaling line circuit (SLC) that can communicate with up to 255 intelligent
devices.

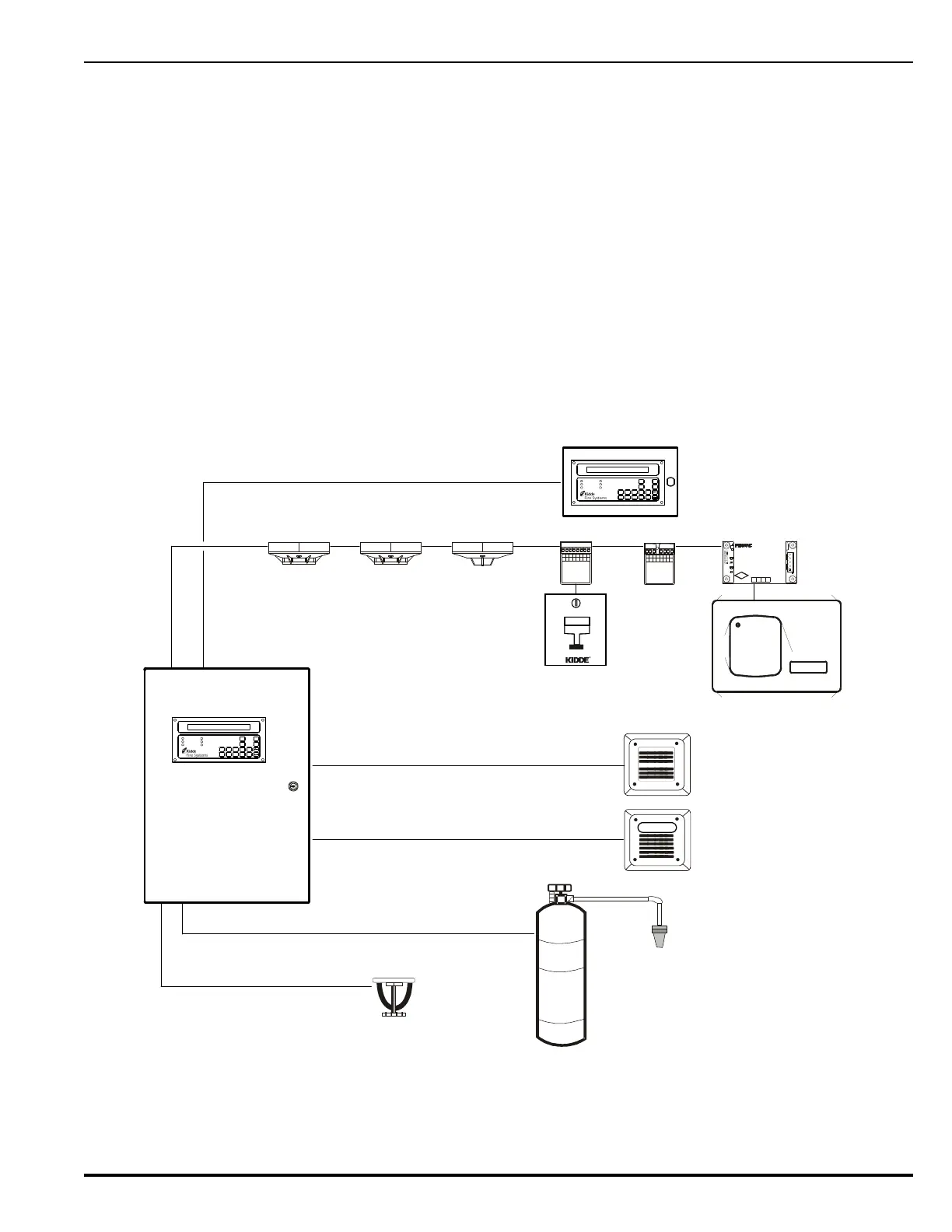

See Figure 1-1 for a typical fire suppression system application.
