P/N 06-236530-001 1-7 August 2013

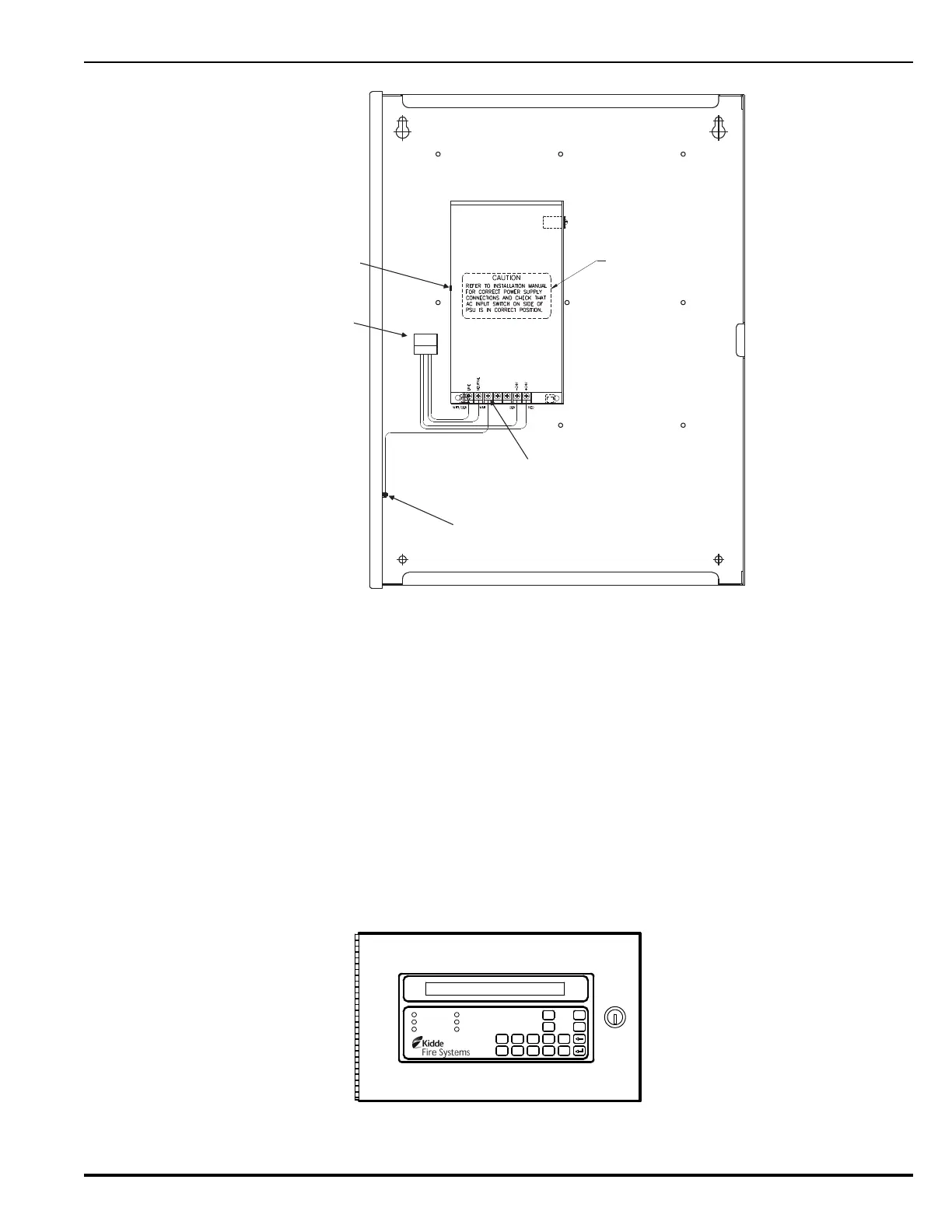

Figure 1-5. Power-Supply Assembly
1-2.4.1 BATTERIES
The cabinet provides space for two 12-AH batteries. Use a separate battery
enclosure, P/N 76-100010-001, for 17-AH or larger batteries. Batteries must be
ordered separately.
1-3 OPTIONAL DEVICES
Several optional devices and modules can be used with the ARIES.
1-3.1 Remote Display/Control Module (RDCM)
The remote display control module permits system events to be displayed, and operator
intervention to be accomplished, from more than one location in a facility. Remote
display control module, Model RDCM, is a duplicate of the ARIES’s Display/Control Module
and allows full operator intervention and system control.
Figure 1-6. Remote Display/Control Module
Power Supply Earth-Ground Terminal
Earth-Ground Terminal for Ground
(i.e., Green) Wire of AC-Power Supply
PSU Warning Label
AC Selector
Switch
To Printed-Circuit
Board PSU
Connector J12
AC POWER
ALARM
PRE-ALARM
SYSTEM TROUBLE
SUPERVISORY
SILENCE
SYSTEM
ACKNOWLEDGE
SYSTEM
RESET
SILENCE
SCROLL
12 345
67 890
