August 2013 3-2 P/N 06-236530-001
3-2.2 Outputs Activation
The ARIES System operation is control by events. Control-unit-based or signaling-
line-circuit-based outputs are activated by user-specified operating instructions
contained in the system’s event output control (EOC) program. The EOC program is
triggered by any event that transitions the system from the Normal Mode to an
event-driven, Off-Normal operating state.
Note: All alarm events must be annunciated by public-mode notification.
3-2.3 Operator Keys
Operator keys for the ARIES System are located on the display inside the control unit.
The control unit door must be open to access the operator keys.

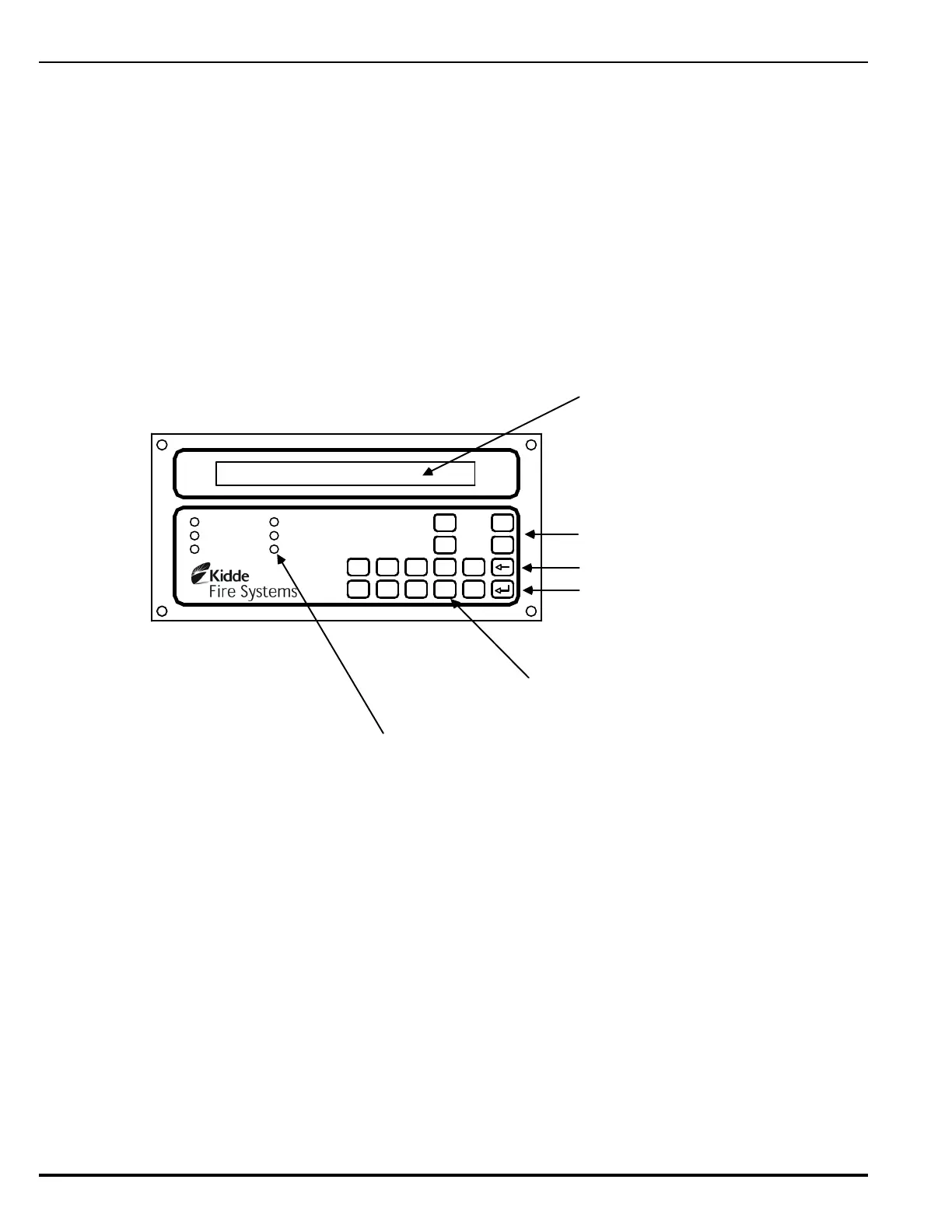

Figure 3-1 shows the location of the operator keys and status indicating LEDs on the
display. Table 3-2 lists the names and functions of the operator keys on the display.
Figure 3-1. Display Panel
AC POWER
ALARM
PRE-ALARM
SYSTEM TROUBLE
SUPERVISORY
SILENCE
SYSTEM
ACKNOWLEDGE
SYSTEM
RESET
SILENCE
SCROLL
12345
67890
80 Character
Liquid Crystal Display
with LED Back Lighting
(2 Lines X 40 Characters)
12-key numeric / BACKSPACE /
ENTER keypad
ENTER Key
BACKSPACE Key
Operator Control Keys
System Status LEDs
