August 2013 1-14 P/N 06-236530-001

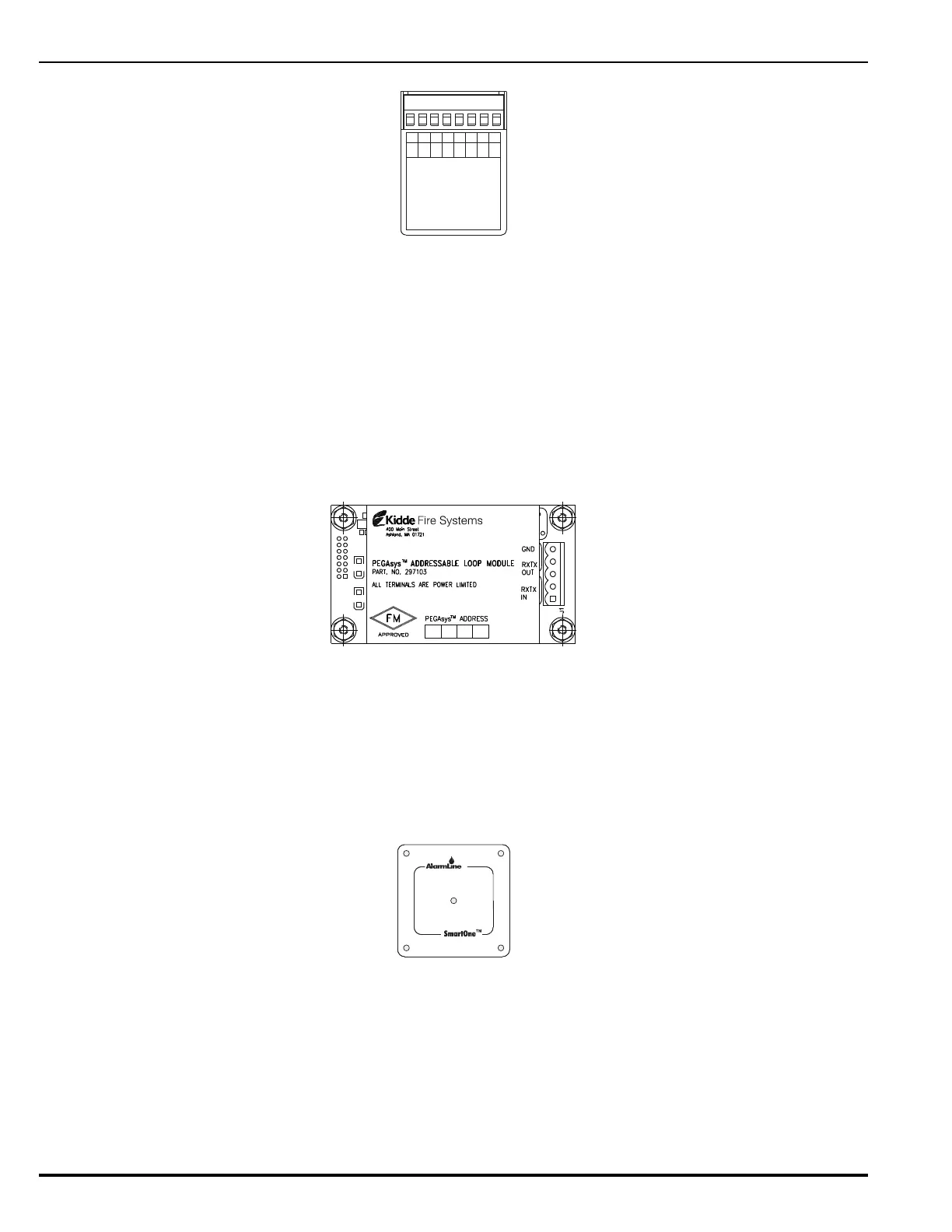

Figure 1-18. AI Monitor Module
Note: Older-style Monitor Modules, P/N 70-40700X-00X, may be used with the ARIES
Control Unit.
1-5.2 ORION-XT Interface Module, Model PALM
The Model PALM ORION-XT Interface Module is a monitor module that enables a High
Sensitivity Smoke Detector (HSSD) to report pre-alarm, alarm, and trouble signals to the
ARIES Control Unit via its signaling line circuit. The AIM mounts inside the ORION-XT
detector housing.
Note: The PALM address cannot be set via the Handheld Programmer. Use either the
OCS Software or the ARIES’ display to set the PALM’s address.
Figure 1-19. ORION-XT Interface Module
1-5.3 Addressable AlarmLine Module, Model AAM
The Model AAM Addressable AlarmLine Module is a monitor module that enables an
AlarmLine sensor cable to report pre-alarm and alarm or overheat events, and trouble
signals to the ARIES through the signaling line circuit. The AAM, P/N 73-100001-001, is
equipped with a metal cover plate for mounting to a 4” square electrical box.
P/N 73-100003-001, is a surface-mount, NEMA-4 enclosure for the AAM.
Figure 1-20. Addressable AlarmLine Module
MODEL AI, N/O
INSTRUCTIONS
SEE INSTALLATION
CAT. NO. 70-407008-001
SmartOne
TM
FOR SERVICE SEND TO:
KIDDE-FENWAL, INC.
400 MAIN ST.
ASHLAND, MA 01721
DATE OF MANUFACTURE:
MAX. INSTALL. TEMP. 120°F
7654321
06-235578-001
PC PC PC PC
(+) (-) (+) (-)
8
A
SW
B
SW
(+)
LED
(-)
LED
ALL TERMINALS ARE POWER LIMITED
