Kidde ARIES

P/N 06-236530-001 2-11 August 2013

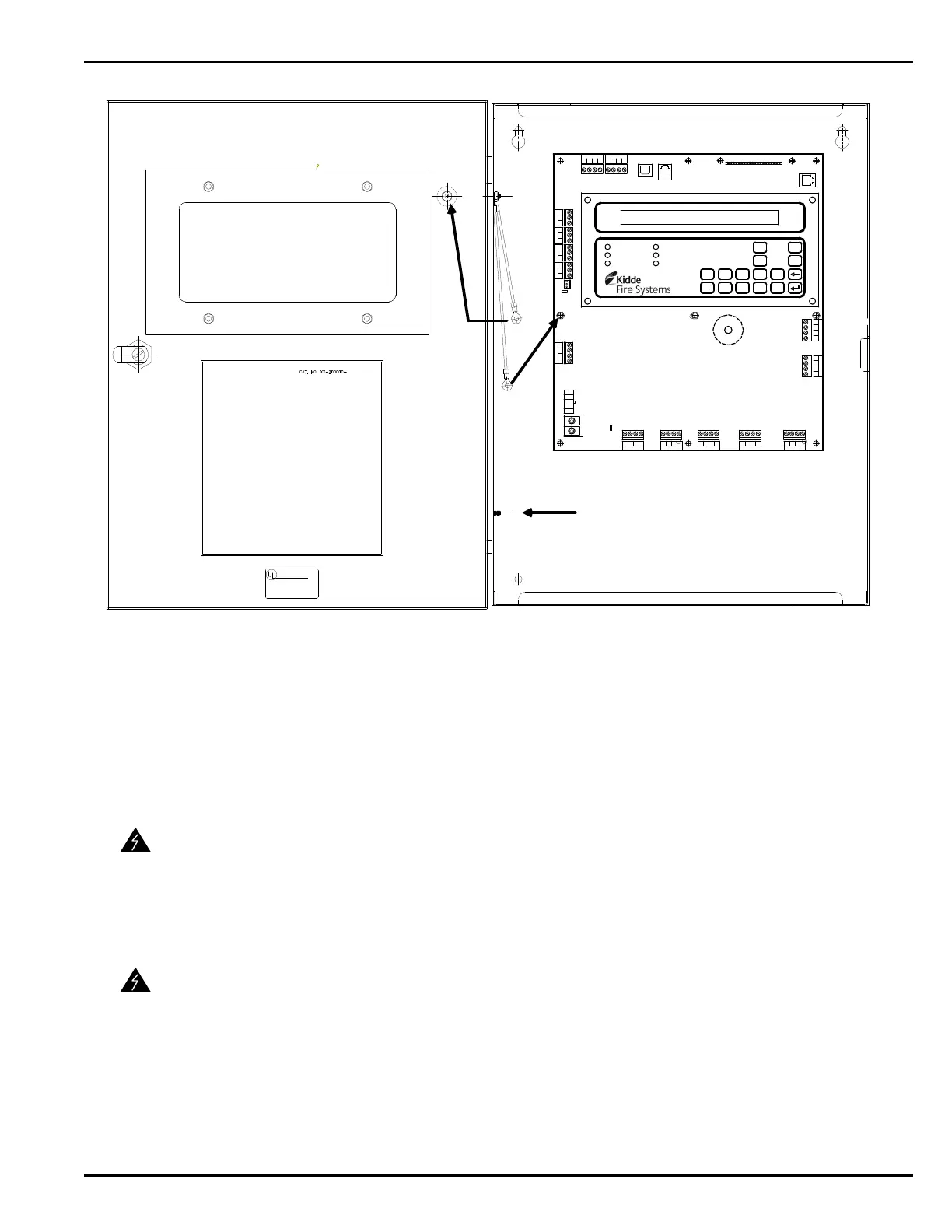

Figure 2-7. PCB-to-Cabinet Grounding Diagram
2-7 AC AND DC POWER CONNECTIONS
The control unit uses commercially- or end-user-provided AC power as the primary power
source, together with a 24 Vdc standby battery (when required by local codes and/or Authority
Having Jurisdiction [AHJ] requirements).
2-7.1 AC Power Connection
The primary AC power for the ARIES Control Unit is 120 Vac, 50/60 Hz, 3.2 A or
220/240 Vac, 50/60Hz, 1.6A. The default power configuration is 120 Vac and will require
resetting for 220/240 Vac operation. Configuration of primary AC power requires that the
power-selection switch on the side of the power supply be set correctly before the power
WARNING
Two different sources of power can be connected to the control unit. Disconnect
both sources of power and critical components such as control heads for special
extinguishing systems and addressable pilot relays controlling facility-power
shutoff before servicing the control unit. The control unit and associated
equipment may be damaged by connecting wiring while the control unit is
energized.
WARNING
Use caution when connecting power. High-voltage and AC-powered circuits are
present in the control unit. Be sure to adequately ground the control unit to
reduce the risk of electrical shock.
AC POWER
ALARM
PRE-ALARM
SYSTEM TROUBLE
SUPERVISORY
SILENCE
SYST EM
ACK NO WLEDGE
SYST EM
RESET
SILENCE
SCROLL
12345
67890
Combo 2
TB6TB7
Combo 1
TB2
Aux 2 4 VDC
TB11
Release 2
TB12
Release 1
Batt Out
TB3
TroubleRelay 3Relay 1 Relay 2
1234 1234 1234 1234 1234
120
240
TB13
AC IN
NL
PSU
J12
+
+
-
-
CNCNO
CNCNO
CNCNOCNCNO
1234
TB5
NAC 1
TB14
1234
NAC 2
RS-232 A
J8
J5
J3
J6
TB15
USB B
RS 485SLC
TB1
4321 4321
Style 4
S2
J10
RS-232 B
TB8 TB9 TB10TB4
Attach longer ground wire
to PCB with washer-and-
screw assembly.
Attach shorter ground
wire to enclosure
door with washer-
and-screw assembly.
Earth-ground terminal for
power supply and green
wire of AC supply
