1-6 ISOLATOR MODULES
Isolator modules are automatic switches that open a segment of the signaling line circuit when
a short-circuit fault is detected in that segment. The remainder of the signaling line circuit
continues to function normally and is unaffected by the short-circuit fault. The isolator modules
will close and resume normal operation when the short-circuit fault is removed.
Isolator module, P/N 74-200012-002, is supplied with a plastic cover plate for mounting to a
single-gang electrical box. Isolator module, P/N 74-200012-004, is designed to mount in the
electrical box for the Model 6SB detector base.

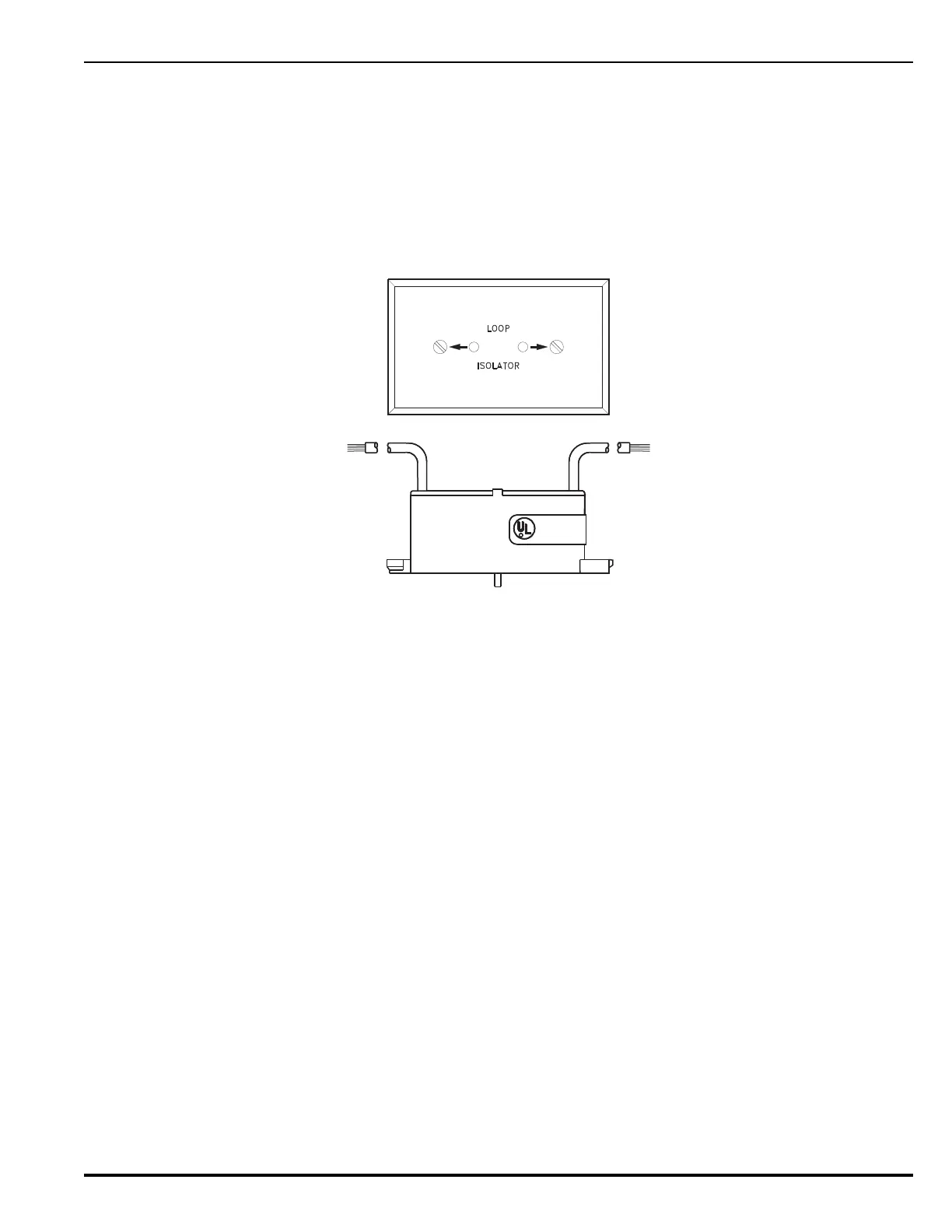

Figure 1-24. Isolator Modules
