Kidde ARIES

August 2013 1-16 P/N 06-236530-001
P/N 70-600000-001: Standard Mounting
• North American 4-11/16 in. electrical box with a double gang plaster ring
(Rayco Model 841 or equivalent), 1/2 in. raised
• 4 in. square, 2-1/8 in. deep electrical box
P/N 70-600000-002: In-Cabinet Mounting
• Any suitable UL-864 Listed enclosure with no other electronics.

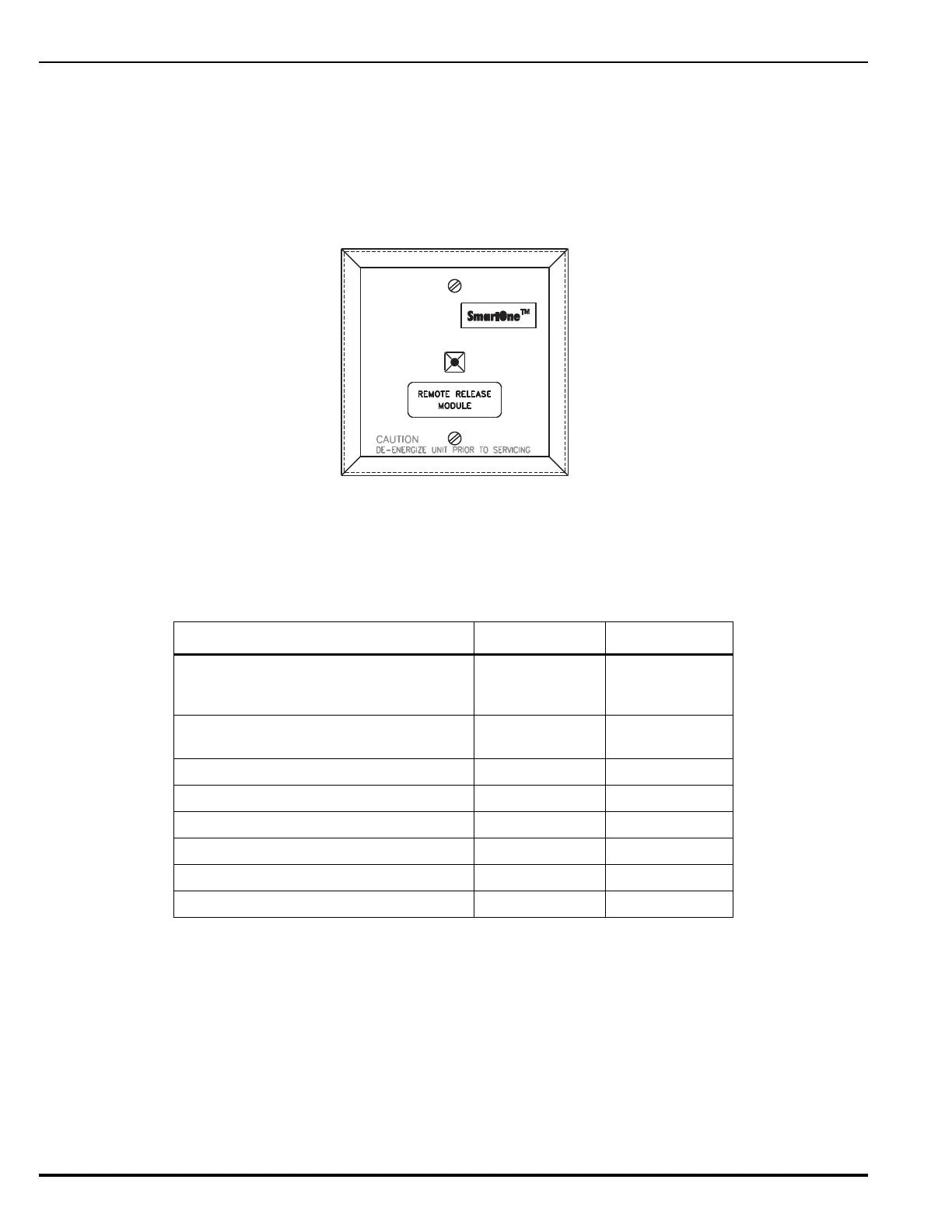

Figure 1-23. Remote Releasing Module
The following power supplies are compatible with the Remote Releasing Module.
Note: Both auxiliary circuits may be wired together to obtain 2 A at 24 VDC, and the maximum
load on the RRM output should not exceed 2 A.
Altronix power supplies may be ordered through an authorized Altronix dealer. For a list
of dealers, visit www.altronix.com or call (888)-258-7669.
When Installing the RRM, refer to the RRM Installaton Sheet. Also, see Paragraph 2-11 for the
release circuit wiring instructions, and Appendix E for rating guidelines for power-limited and
non power-limited wiring. For configuration instructions, refer to the ARIES Configuration
Software User’s Guide (P/N 06-236530-002).
Table 1-1. Compatible RRM Power Supplies
Description Manufacturer Part Number
Multi-Zone Power Supply Assembly
(used with P/N: 77-297107-000
enclosure and cables)
Kidde 77-297106-000
24 VDC, 1 A Auxiliary Power Ouput of
ARIES Control Unit, qty 2 (See Note)
Kidde 76-600000-001
24Vdc, 3A Power Supply, red enclosure Altronix AL400ULXR
24Vdc, 3A Power Supply, grey enclosure Altronix AL400ULX
24Vdc, 6A Power Supply, red enclosure Altronix AL600ULXR
24Vdc, 6A Power Supply, grey enclosure Altronix AL600ULX
24Vdc, 8A Power Supply, red enclosure Altronix AL1024ULXR
24Vdc, 8A Power Supply, grey enclosure Altronix AL1024ULX
