2-4 MOUNTING THE CABINET/ENCLOSURE
The control unit can be surface or semi-flush mounted. Figure 2-1 shows the control-unit-
enclosure dimensions. All dimensions are in inches.

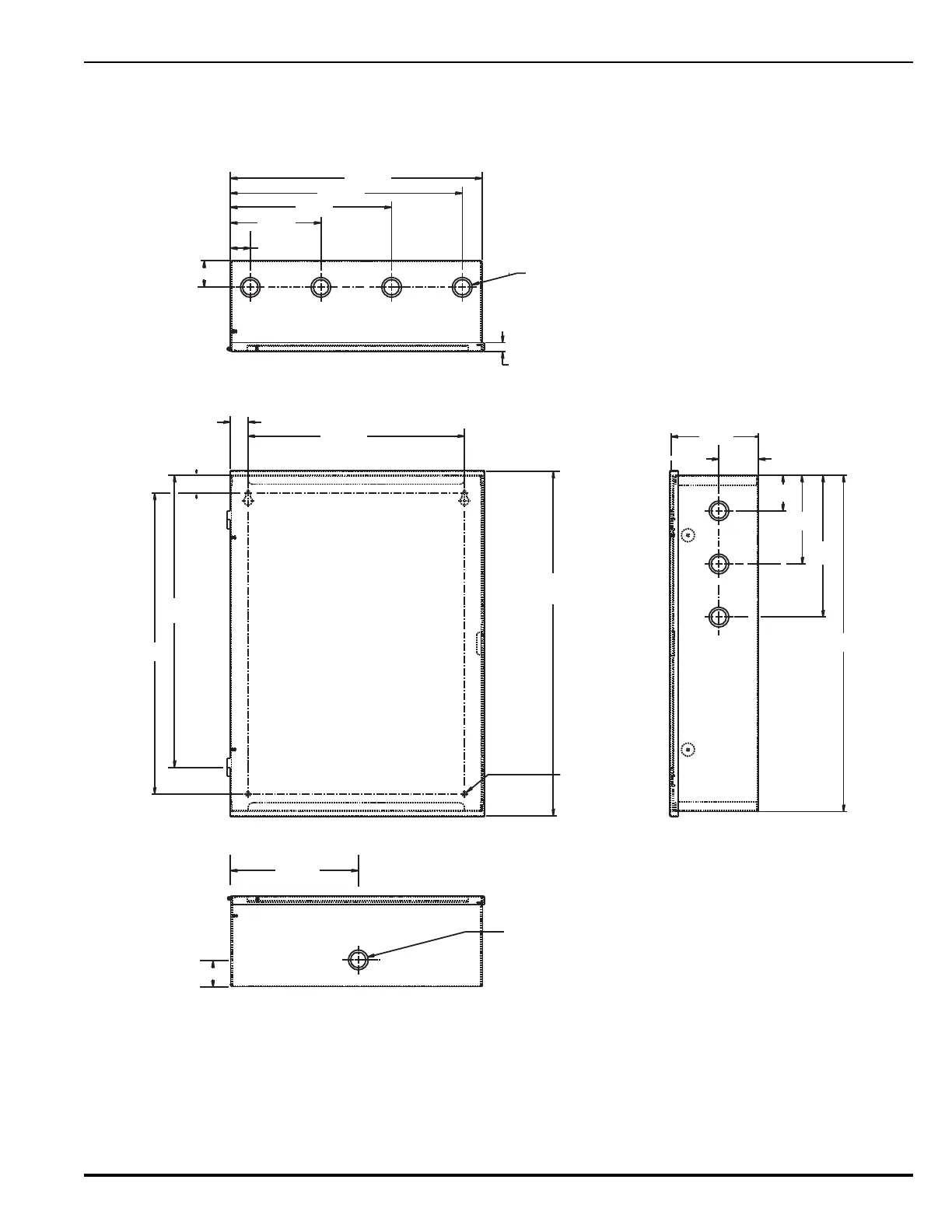

Figure 2-1. Enclosure Dimensions
19.456
0.281 Dia. Holes
Typ (2) Places
17.000
16.500
1.000
1.000
12.250
1.500
1.12
5.12
9.12
13.12
14.25
1/2" (0.875 Dia) 3/4" (1.125 Dia)
Combination Knockouts
(4) Located on Top
(3) Located In-Line on Two Sides
0.500
Cover Outside
5.000
2.25
2.00
5.00
8.00
19.00
Note: All dimensions are in inches.
1.500
7.12
Top View
Bottom View
Side View
1/2" (0.875 Dia) 3/4" (1.125 Dia)
Combination Knockout
