Kidde ARIES

August 2013 2-24 P/N 06-236530-001
2-11.3 Releasing Circuits for Dual Control Heads or Solenoid Valves
Each releasing circuit can be configured to activate either dual Kidde control heads
or dual pre-action-sprinkler or deluge-sprinkler valves that do not exceed the
maximum release circuit current of 2.5A. It can also activate combinations of Kidde
control heads and/or pre-action/deluge sprinkler valves that do not exceed the
maximum release circuit current of 2.5A. Total current output of the ARIES power
supply must not exceed 5.4 A. Figure 2-25 shows a releasing circuit wired for dual-
control-head or dual-solenoid-valve actuation.
Note: Total combined control head and/or solenoid current must not exceed 2.5A
(continuous output).

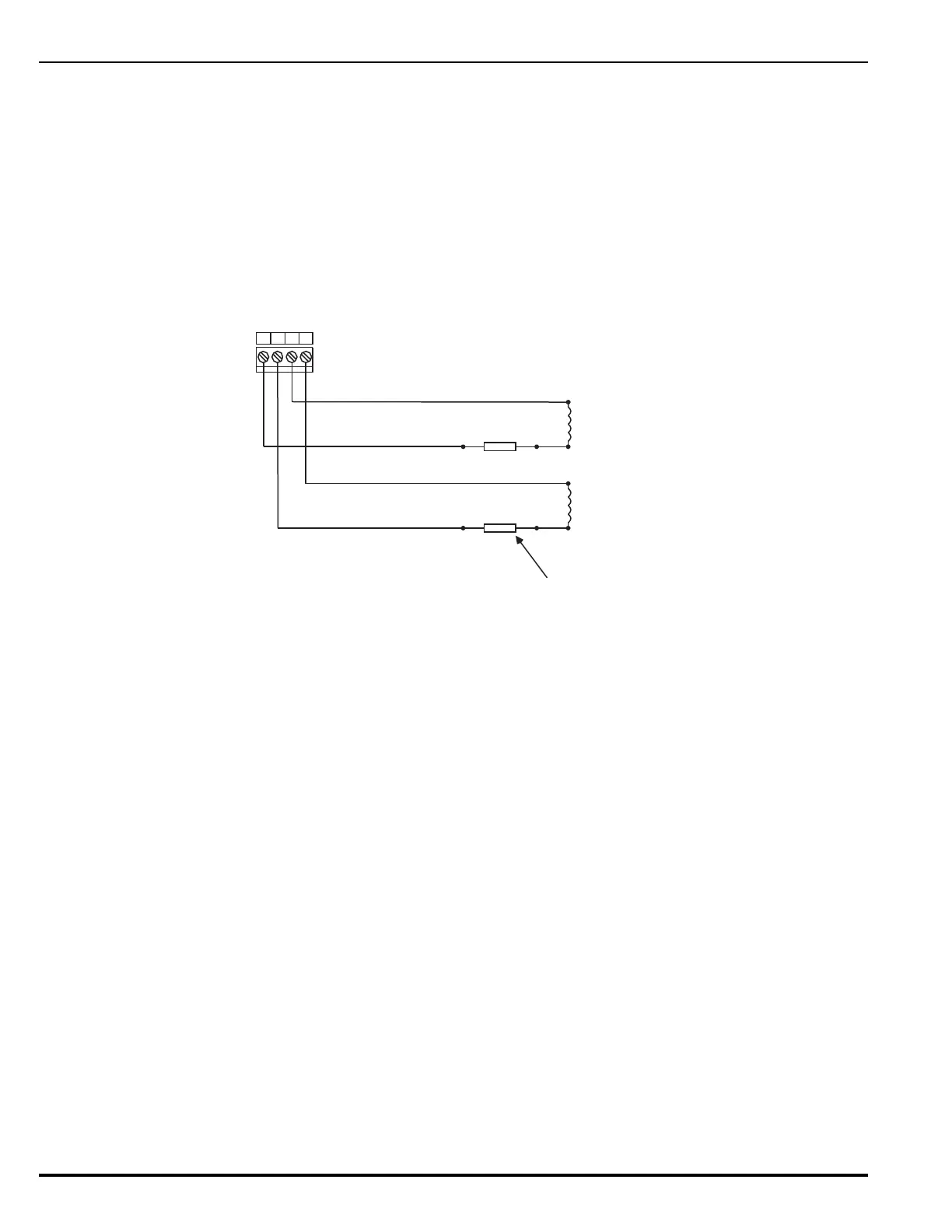

Figure 2-25. Releasing-Circuit Wiring for Dual Solenoids
A releasing circuit is supervised and power limited when the in-line device, P/N
06-220023-001, is wired in series with each of the two control heads or solenoid valves.
See Appendix C for compatible control heads and solenoid valves. Refer to the ARIES
Programmer’s Guide to configure the releasing circuits for dual-control-head or dual-
solenoid-valve actuation.
Route non-power-limited wiring at least 1/4 inch away from all power-limited wiring. Do
not attach power-limited and non-power-limited wiring to the same terminal block.
2-12 AUXILIARY POWER OUTPUTS
Figure 2-26 shows the auxiliary-power terminals on the main printed-circuit board. Both outputs
are configurable for either resettable or non-resettable operation. Refer to the ARIES
Programmer’s Guide to configure the auxiliary-power outputs.
Both auxiliary-power outputs are power-limited.
Note: Each output 1.0 A (max.) @ 24 Vdc (nominal)
4321
Release 1 or
Release 2
In-Line Releasing Device (P/N 06-220023-001)
(Typ 2)
(Must be close nippled to solenoid enclosure)
Supervised and Power-Limited
Blk
Red
Solenoid
(Refer to Appendix C)
Solenoid
(Refer to Appendix C)
TB12 or
TB11
Blk
Red
