4.1 Specification, buffer cylinder
Buffer cylinder HPM
Buffer cylinder for integration in a wood combustion system with a
maximum boiler output of up to 150 kW.
Version:
■ Steel S 235 JRG2, untreated inside, anti-rust coating outside
■ Operating pressure: max. 3.0 bar; test pressure: 4.5 bar
■ Connections: 8 female connections R 1½, 4 female connections
R ½, 1 sensor pipe 14 x 1.5 mm, 1 female connection top R 1¼
Flexible foam insulation to HPM
The insulation is made from 100 mm thick flexible PUR foam elements
with polystyrene casing.
Fire safety category B3.
Note
Delivery is ex-stock.
Alternative cylinder sizes and insulation types on request.
Part no. buffer cylinder HPM 7424130 7424131 7424132 7424133 7424134 7424135
Part no. flexible foam insulation to
buffer cylinder HPM
7424136 7424137 7424138 7424139 7424140 7424141
Contents l 1000 1250 1500 2000 2500 3000
Weight kg 170 176 185 211 260 300

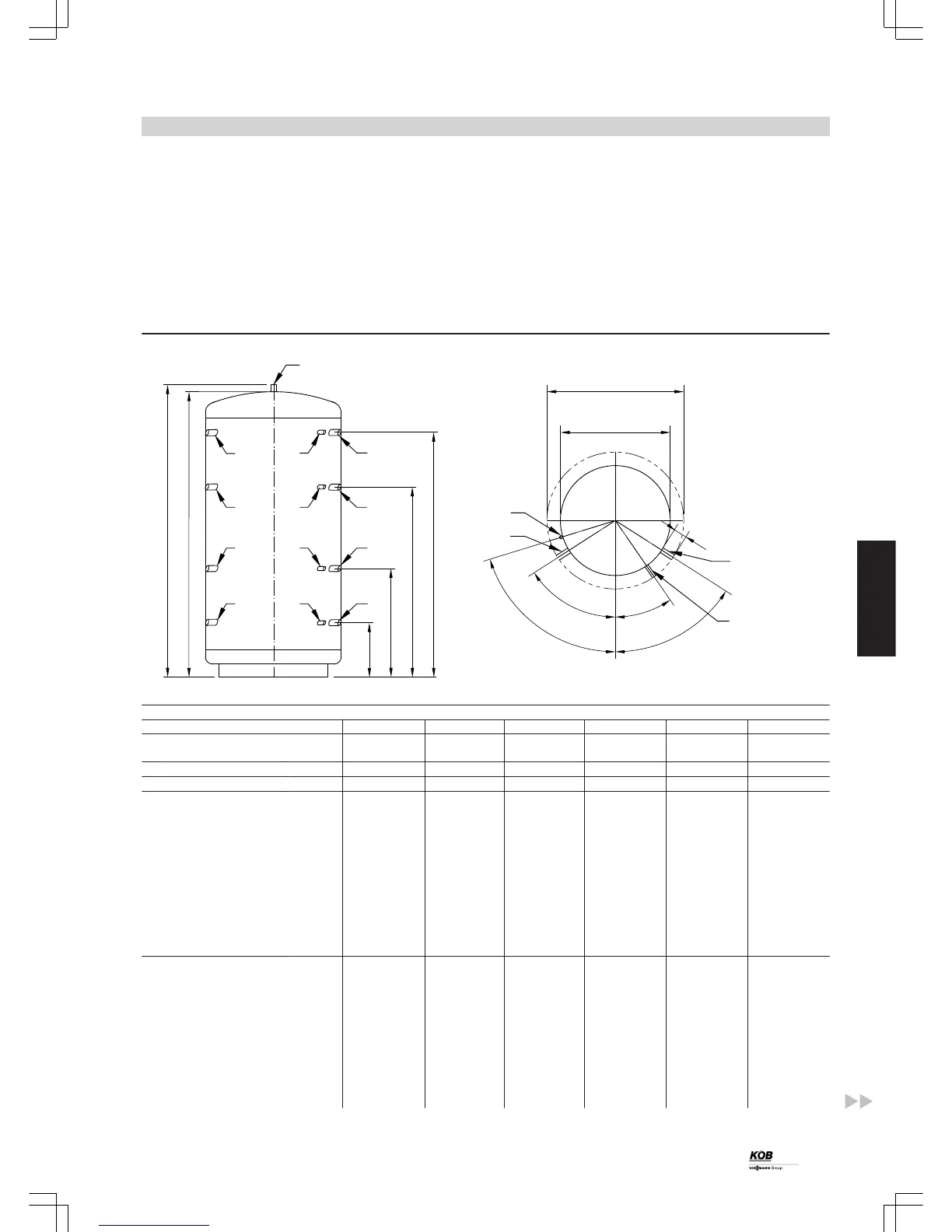

Dimensions
Height when tilted mm 2080 2070 2200 2410 2375 2780
a mm 310 310 380 320 535 380
b mm 745 745 825 900 975 1020
c mm 1250 1250 1350 1490 1415 1680
d mm 1710 1710 1760 2020 1855 2330
e mm 1993 1948 2098 2308 2217 2655
f Total height mm 2043 1998 2148 2358 2267 2705
g Diameter without
insulation
mm 790 950 1000 1100 1250 1250
h Diameter with insula-
tion
mm 990 1150 1200 1300 1450 1450
Connections
k 50° 50° 50° 50° 50° 50°
l 50° 50° 50° 50° 50° 50°
m 28.2° 31.9° 32.8° 34.3° 36.2° 36.3°
n 70° 70° 70° 70° 70° 70°
o Length of female con-
nections
mm 100 100 100 100 100 100
01 Female connections,
flow/return
R 1½ 1½ 1½ 1½ 1½ 1½
02 Female connections,
sensor
R ½ ½ ½ ½ ½ ½
Heating water buffer cylinder
PYROT
29
5822 516 GB
4
