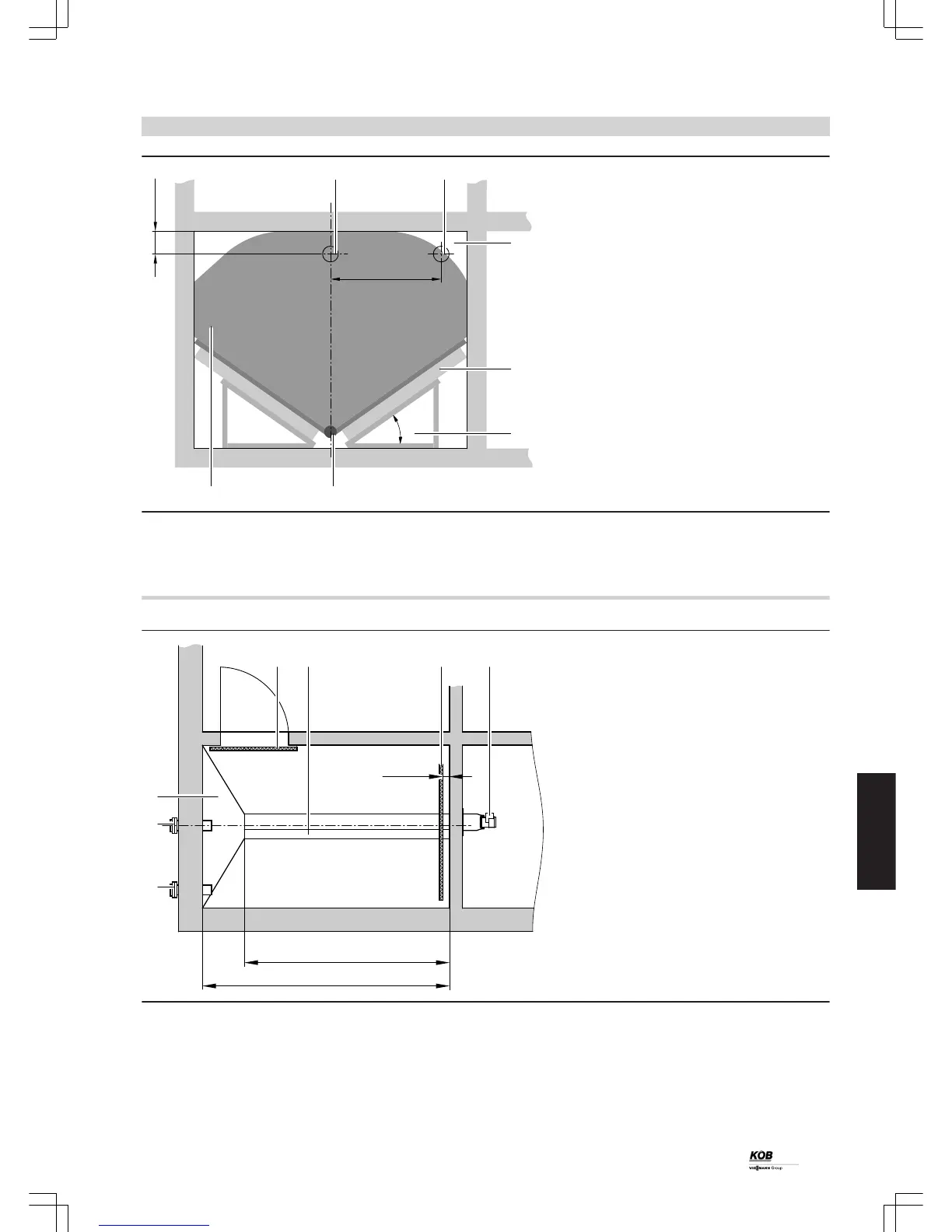

KOB PYROT - Pellet storage room design and required system components

A B
C
D
E
FG
200 mm
≥ 500 mm
40°
A
Fill connector
B
Return connector
C
Air space
D
Sloping floor
E
Empty space
F
Discharge system
G
Available volume = ⅔ of the room
Pellet storage room design and required system components
B D
H
G
K
A C
F
E
< 9250
<10000
100
≥
A
Protective boards at the entrance to the storage room
B
Supply area, supply screw conveyor system
C
Deflector
D
Discharge to supply screw conveyor
E
Min./max. length of the discharge area
F
Max. storage room length
G
Return connector
H
Fill connector
K
Slanted panel to compensate for the lengths of the storage room/
supply area
Design information
(cont.)
PYROT
75
5822 516 GB
6
