KOB PYROT - Drive, pipe screw conveyor, pellet

51,94 mm
4,08 mm
d
c
2,58 mm
5,99 mm
46,27°
6,23 mm
2,56 mm
3,77 mm
b
168
< 10000
a
g
f
e
250
12,26 mm4,35 mm12,92 mm
3,36 mm10,55 mm
13,90 mm
500
166
~ 500
k l
h
A
4,60 mm
1,94 mm
76,92 mm
4,29 mm
9,30 mm
4,61 mm
5,25 mm
b
a
168
< 10000
g
f
355
B
C
D
E
3,72 mm
5,55 mm
d
c
45,58°
e
A

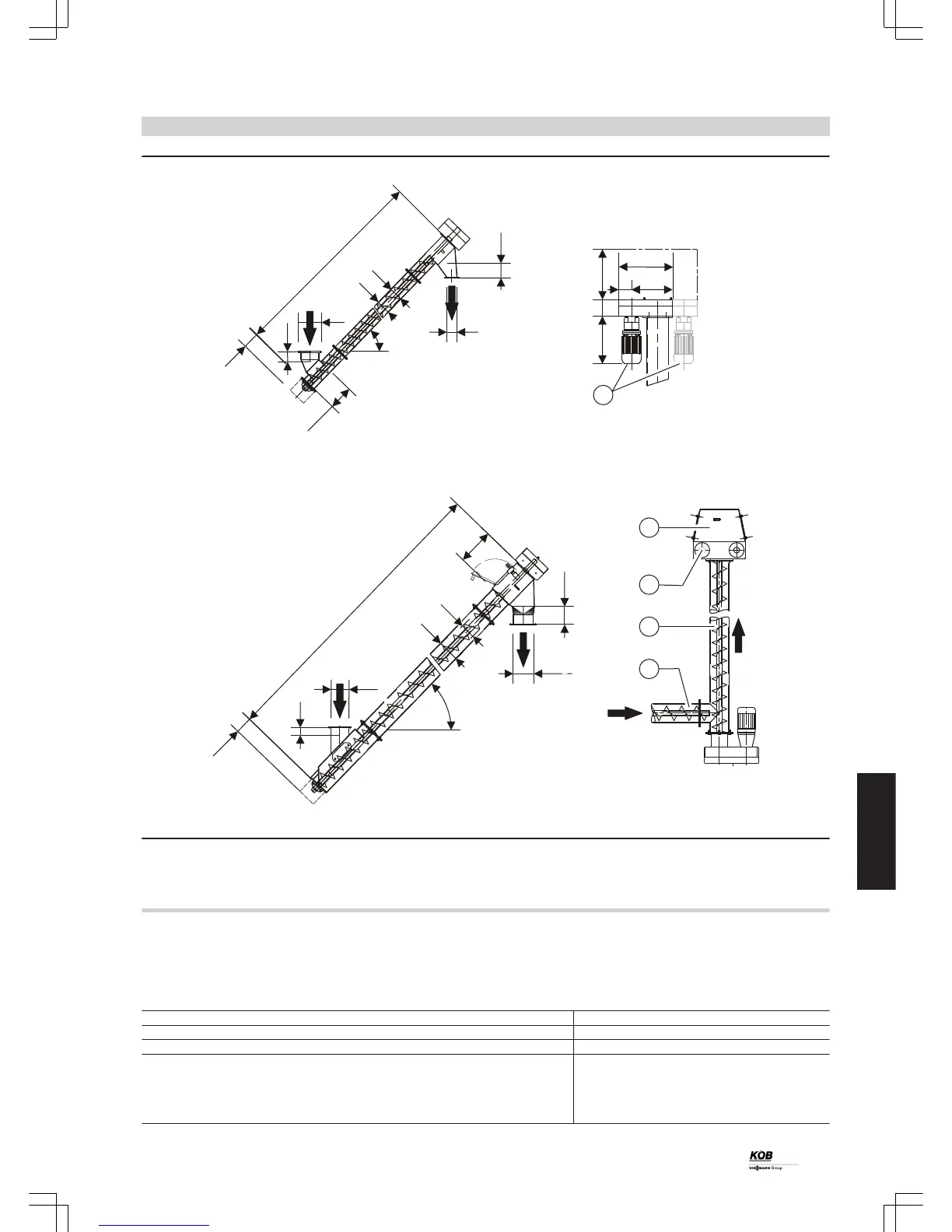

Drive (optionally on the l.h. or r.h. side)
B
Distributing container
C
Distributing screw conveyor
D
Pipe screw conveyor, vertical, pushing
E
Pipe screw conveyor, horizontal, pushing
Drive, pipe screw conveyor, pellet
Part no. 7387 949
Simple version of the pipe screw conveyor MR 120 with pulling drive
and only permissible for pellets. The system is driven via spur geared
motor and chain in dust-proof chain guard.
Standard delivery:
■ Drive unit with spur geared motor 3 x 400 V and chain drive
■ Inlet/discharge in simple version for pellets; incl. downpipe/adaptor
for the following conveyor device
Trade name Drive, pipe screw conveyor, pellet
Type MR-11
Part no.: 7387 949
Diameter of the screw conveyor max. mm 120
Torque at screw conveyor Nm ~800
Function Pulling
Length of the screw conveyor max. m 10
Boiler output max. kW 1200
Design information
(cont.)
