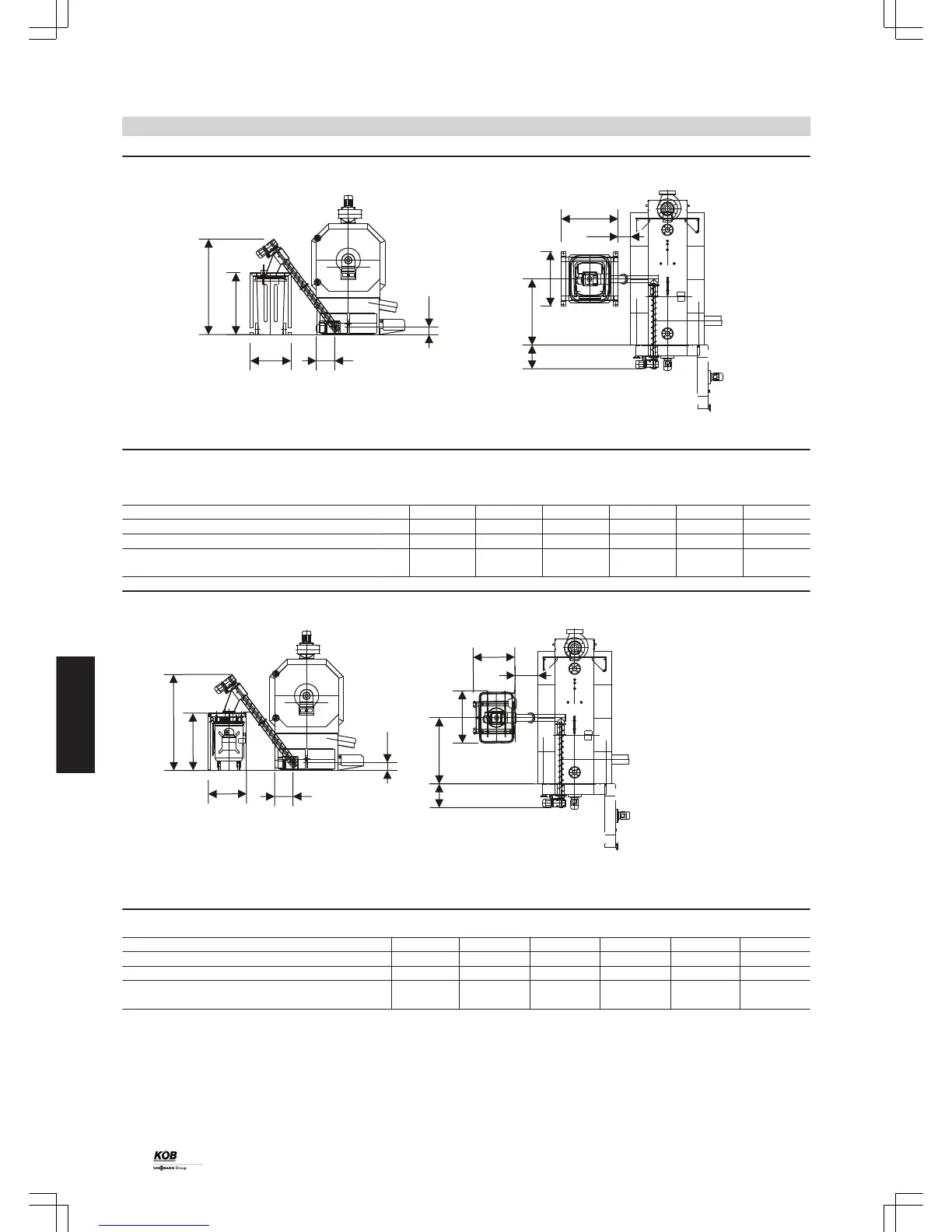

KOB PYROT - Page 40

15,91 mm
24,56 mm
10,42 mm
4,72 mm
1,98 mm
139
a
742
1118
1727
16,99 mm
14,61 mm
3,21 mm
6,12 mm
438
b
742
450
710
14,06 mm
Ash removal in external container 240 l
Dimensions
Rated output kW 100 150 220 300 400 540
Volume of ash container l 240 240 240 240 240 240
Part no.: 7387 918 7387 918 7387 918 7387 918 7387 918 7387 918
a mm 249 249 319 319 301 301
b mm 953 1023 1023 1193 1273 1408
16,99 mm
6,12 mm
438
b
1000
510
1000
5,89 mm
10,71 mm
13,44 mm
4,72 mm
1,98 mm
139
a
1000
1500
2460
9,83 mm
14,74 mm
24,70 mm
Ash removal in external container 800l
Dimensions
Rated output kW 100 150 220 300 400 540
Volume of ash container l 800 800 800 800 800 800
Part no.: 7387 950 7387 950 7387 950 7387 950 7387 950 7387 950
a mm 249 249 319 319 301 301
b mm 953 1023 1023 1193 1273 1408
Installation accessories
(cont.)
