KOB PYROT - Page 82

40,55 mm
62,77 mm
h
g
A
B
C
A
Fall protection grille (optional)
B
Rubber apron
C
All-round seal, required, not included in standard delivery
Recommendation: Kemperol combi roof seals

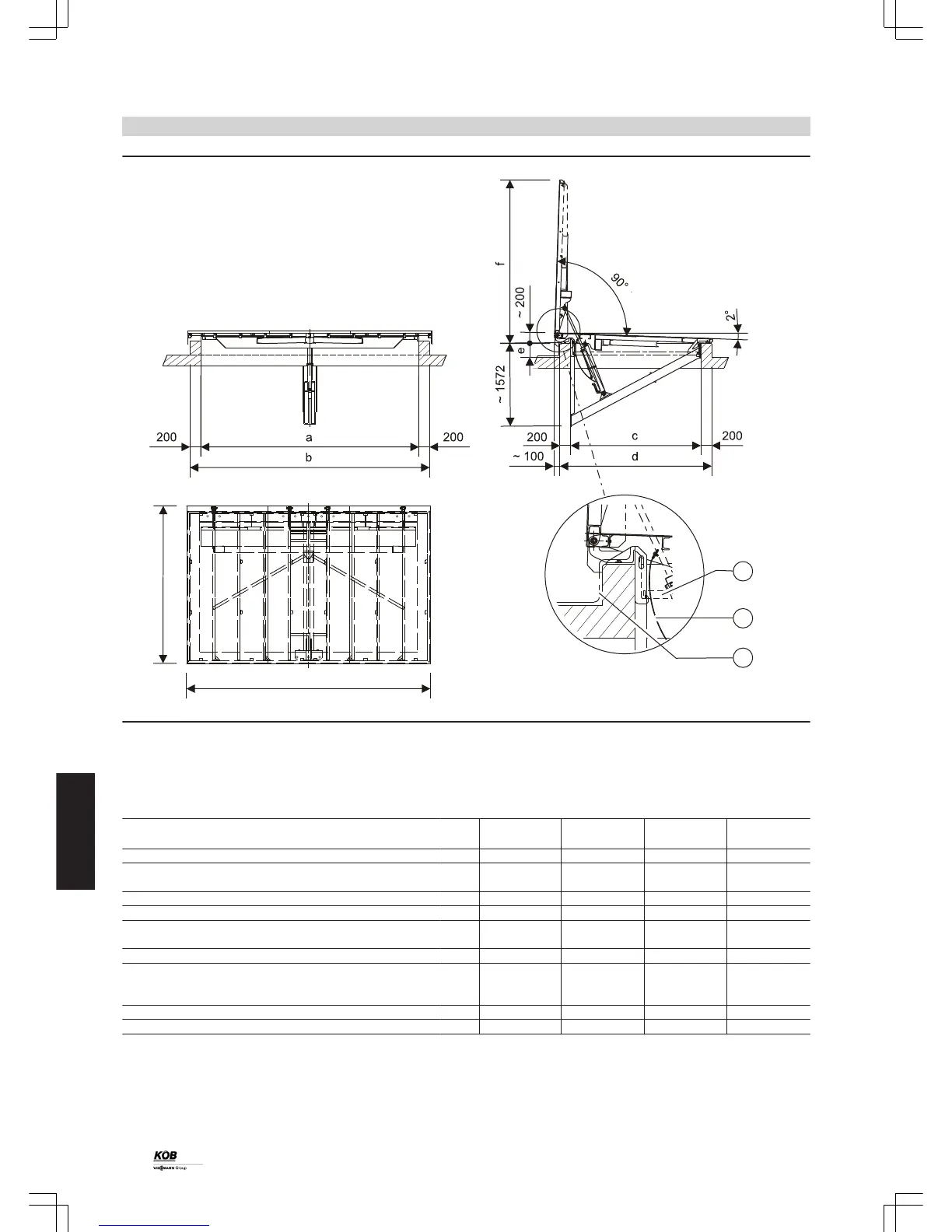

Specification
Type
*17
Part no.
FDH 4.0/2.4
7388 011
FDH 5.5/2.4
7387 903
FDH 7.0/2.4
7387 834
FDH 8.5/2.4
7387 884
Opening length x width
a mm 4020 5520 7020 8520
c mm 2400 2400 2400 2400
Dimensions, concrete collar
b mm 4420 5920 7420 8920
d mm 2800 2800 2800 2800
e mm 250 250 250 250
Dimensions, cover, external
f mm 3025 3025 3025 3025
g mm 4500 6000 7500 9000
h mm 2924 2924 2924 2924
Number of hydraulic cylinders pce 1 1 1 2
Weights, cover kg 1029 1231 1516 1823
*17
Type 7.0/2.4 and 8.5/2.4 with covered expansion joint for heat expansion
Design information
(cont.)
82
PYROT
6
5822 516 GB
