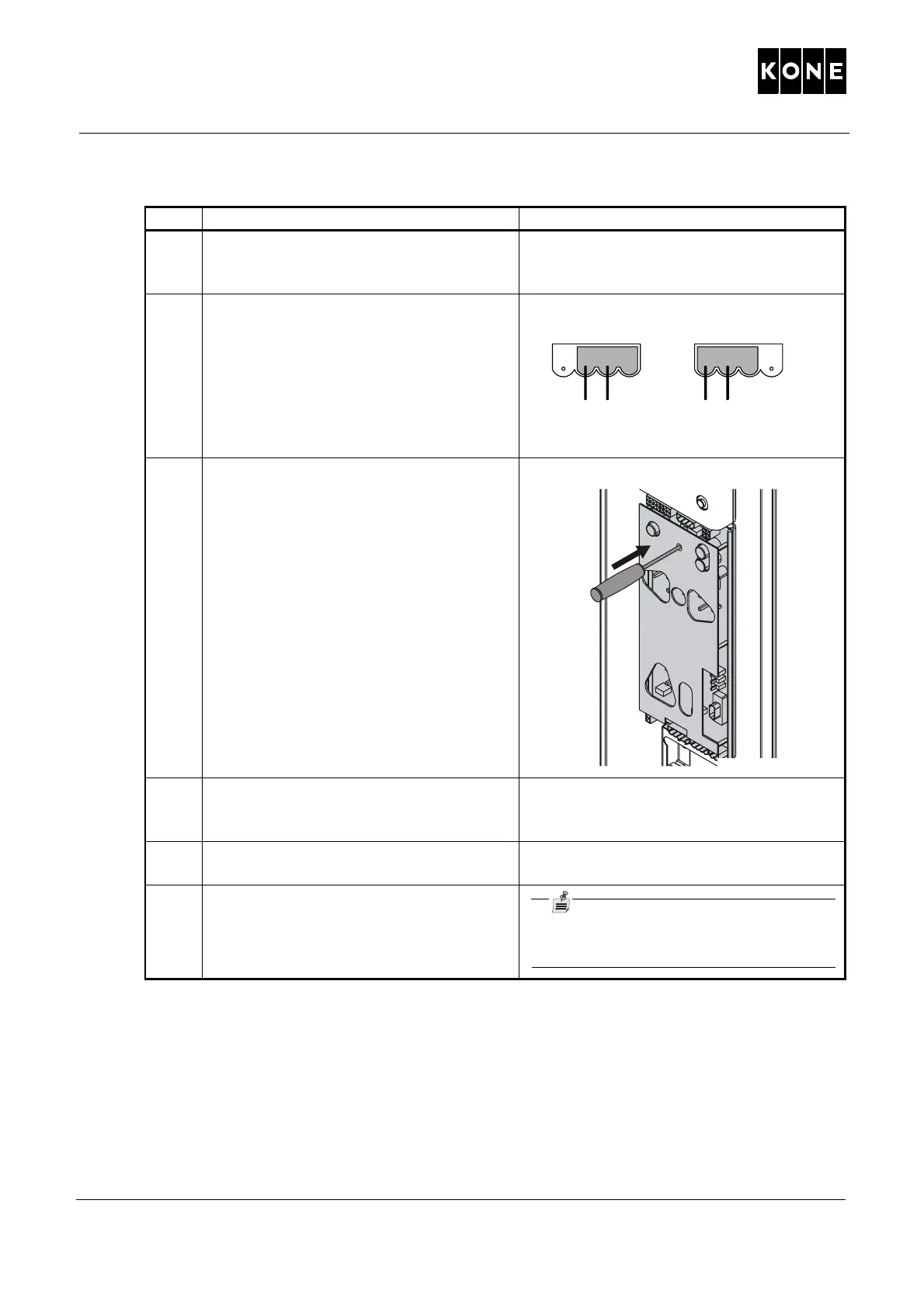

7 Go to MAP. If the elevator has Shaft Access Monitor
(SAM), reset it according to APPENDIX
B.
8 Move the plug of the XL8 connector
from position 1 to
test position 2.
1. Normal position
2. Test position
9
Drive downwards on RDF for
approximately 2
seconds and push the
overspeed governor test button.
The elevator must stop immediately.
10 Try to drive downwards on RDF to
check that th
e safety gear is engaged.
The elevator car must not move
downwards when the safety gear is
engaged.
11 Switch off the Recall Drive Feature.
(RDF).
POS 270.
12 Make a car call upwards from the
mainten
ance access panel: the
elevator car must not move.
NOTE! The safety gear switch must
cut the safety circuit.
Step Action Illustration/Note
1
12
1027270.wm
f
1
1
08986
1.wmf
