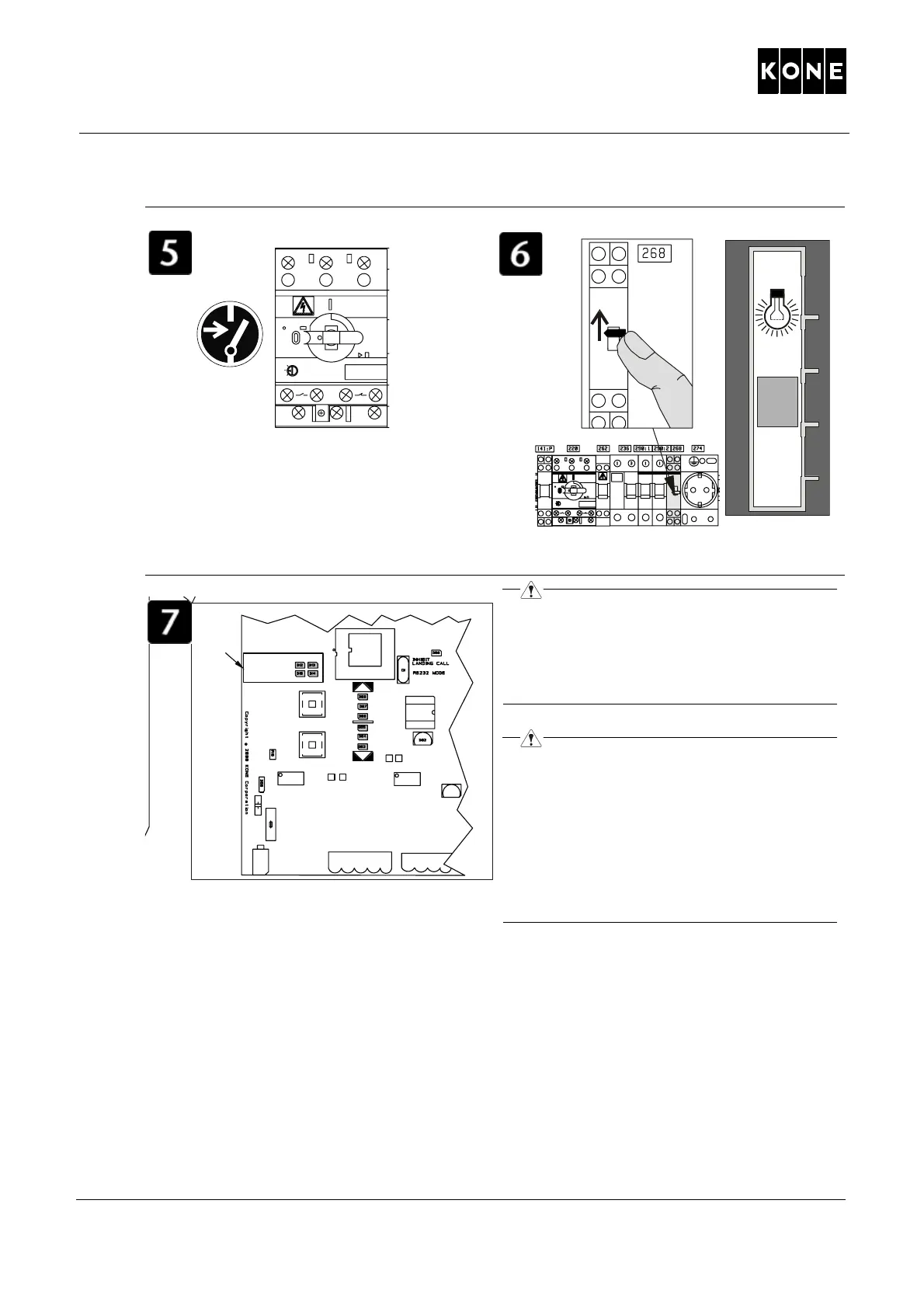

Switch off the main switch. (220)
Switch on the shaft lights. (268)
Check the elevator car position.
WARNING! Never open the brakes
when the elevator car is in door zone.
DZ LEDs are on when the elevator car
is in door zone. (A)
WARNING! If the emergency battery is
inoperative, you cannot monitor elevator
car position or movement from the LCE
user interface LEDs. Go to section 11.7.5
Moving the elevator car using the manual
brake releasing device with car position
checks at landing. (Page 146.)
