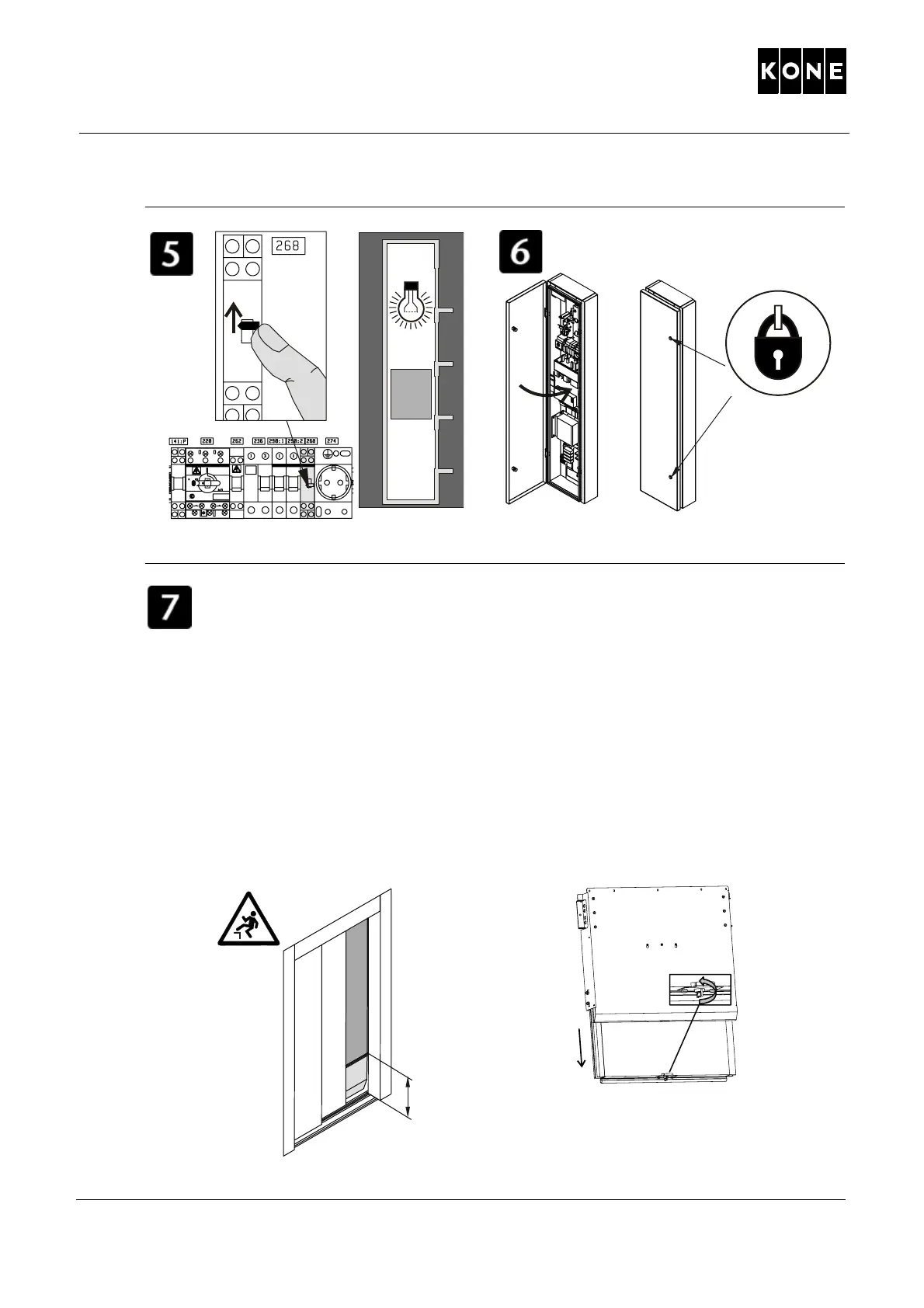

Switch on the shaft lights. (268)
Close and lock the maintenance access
panel.
Check th
e elevator car position.
1. Open the landing doors with emergency opening ke
y, maximum opening width 100 mm.
2. Check the elevator car position. Dimension Y between
the landing floor and the car floor
must be 0.2 m or less. There should be no gap between the landing floor and car apron.
If the apron is extendable, open it to full height, and check the distance again:
• If there is no gap, and Y is 0.2 m or less, proceed to section Rescue procedures
when the elevator car is in door zone (page 150).
• If there is still gap, or Y is more than 0.2 m, proceed to next step.
Lowering the car apron:
1. Open the locking mechanism.
2. Lower the apron.
1085456.wmf
1
0839
11.wm
f
y
1092497.wmf
1.
2.
1083879.wmf
