8.3.3 Checking rope groove wear
You must replace the overspeed governor when the rope goes deeper into the groove than
value (T). The
following table shows the maximum (T) value for each rope diameter.

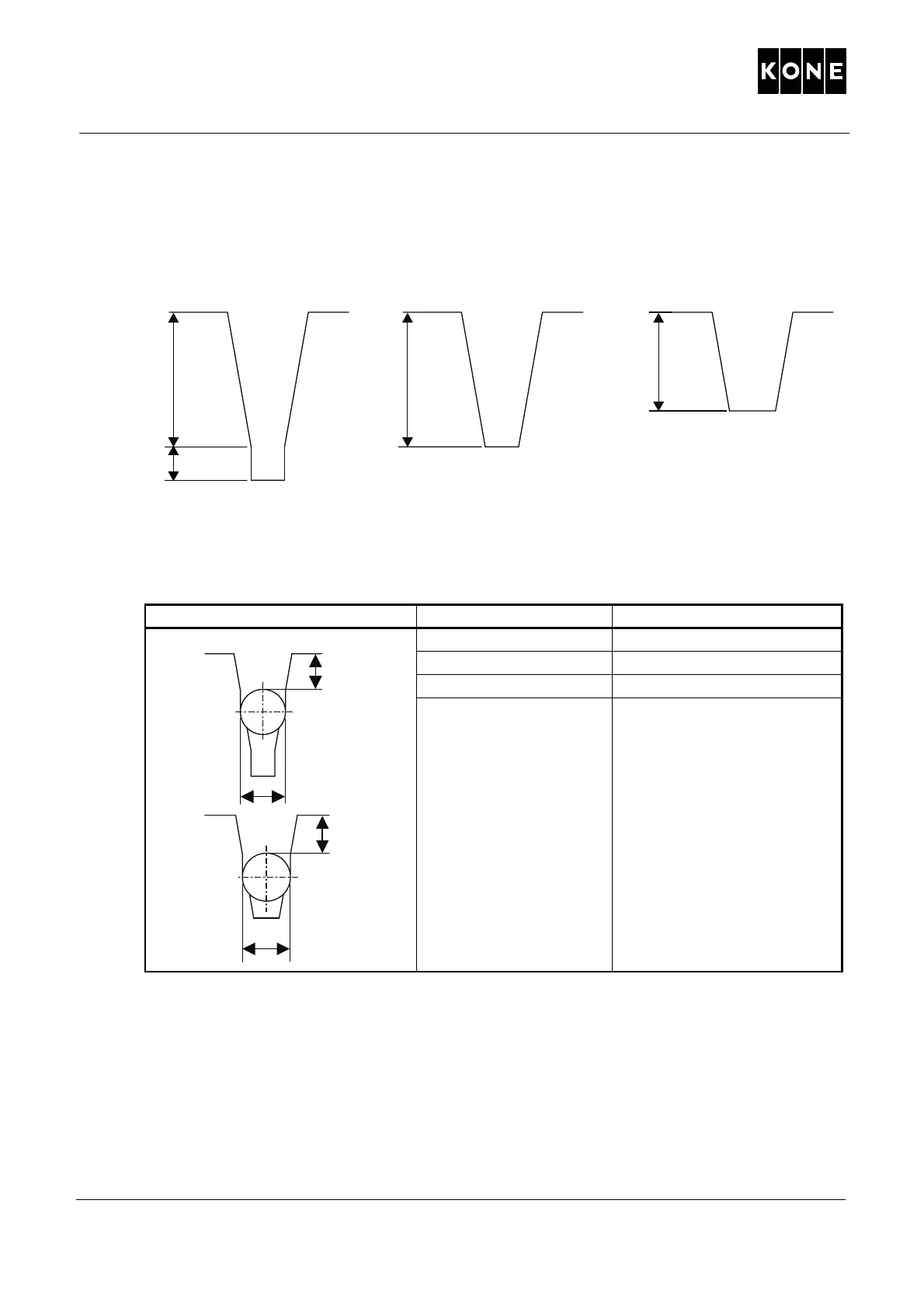

Table 14: Rope groove wear
A B C
Figure 11.Groove types
Groove type Rope diameter (d) Maximum dimension (T)
6 mm 8.5 mm
6.5 mm 8 mm
7 mm 7.5 mm
8 mm 7 mm
11
15
154
1008839.wmf
T
d
