Konica Minolta KDR AU DDR User Manual

119
KMHA 500-000099
Revision D
KDR
TM
AU-DDR Advanced U-Arm System with
Dynamic Digital Radiography (KDR AU DDR)
V. DYNAMIC MODE
Adjusting the Frames Displayed in Video Playback
Click the “play” icon to toggle between play and pause (see Figures 26.2.1 and 26.2.2).

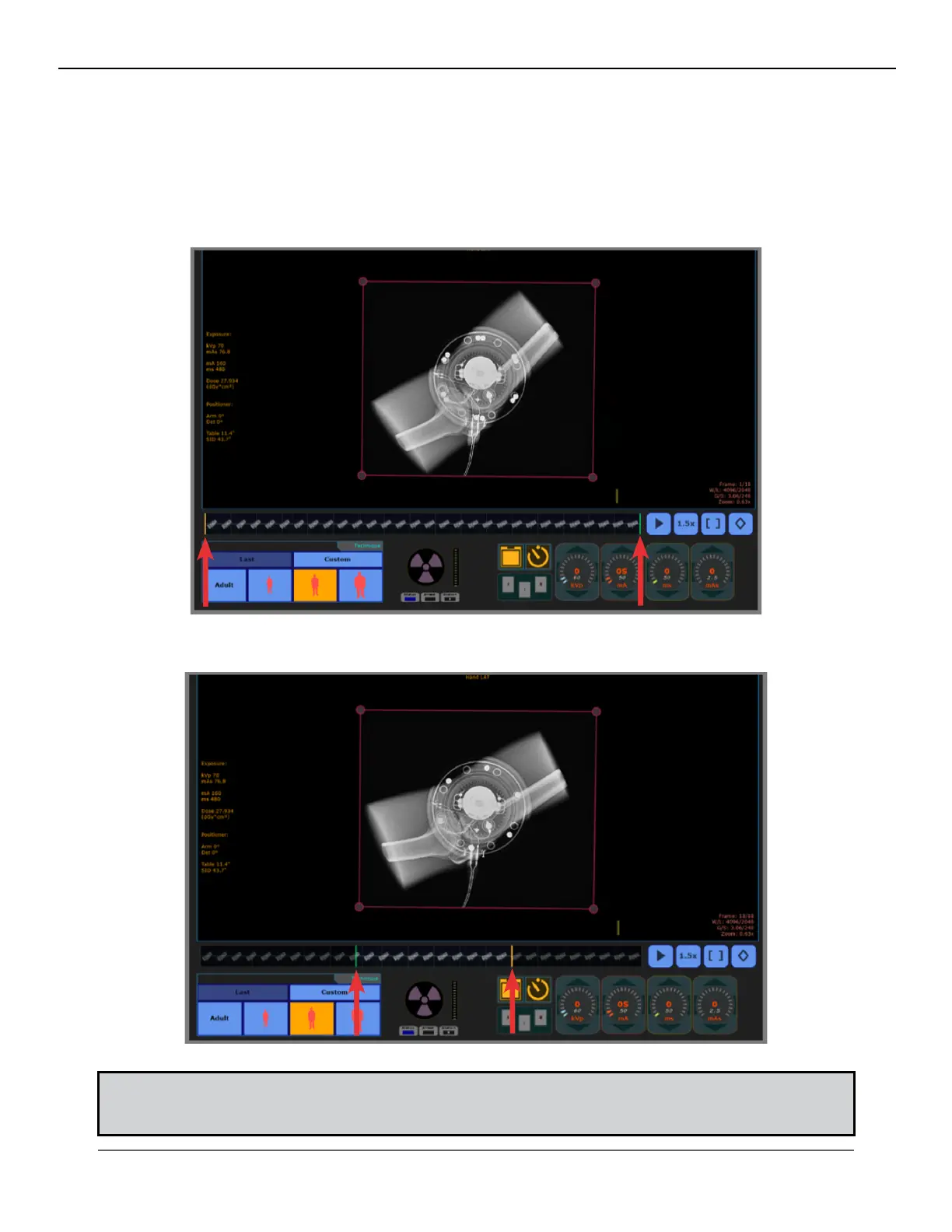

1. Drag the “StartFrame” and “EndFrame” markers to the desired beginning and end of the subsequence. See
Figures 26.2.3 and 26.2.4.
Figure 26.2.3
StartFrame and EndFrame
Figure 26.2.4
StartFrame and EndFrame Subsequence Selected
2. Click on the “play” icon to play the video of the selected frames.
NOTE: If start and end frames are adjusted, only the selected frames will be sent to PACS applications. To send
all the frames in the series, re-adjust the start and end frame to the rst and the last frame in the image series
before sending to PACS.
